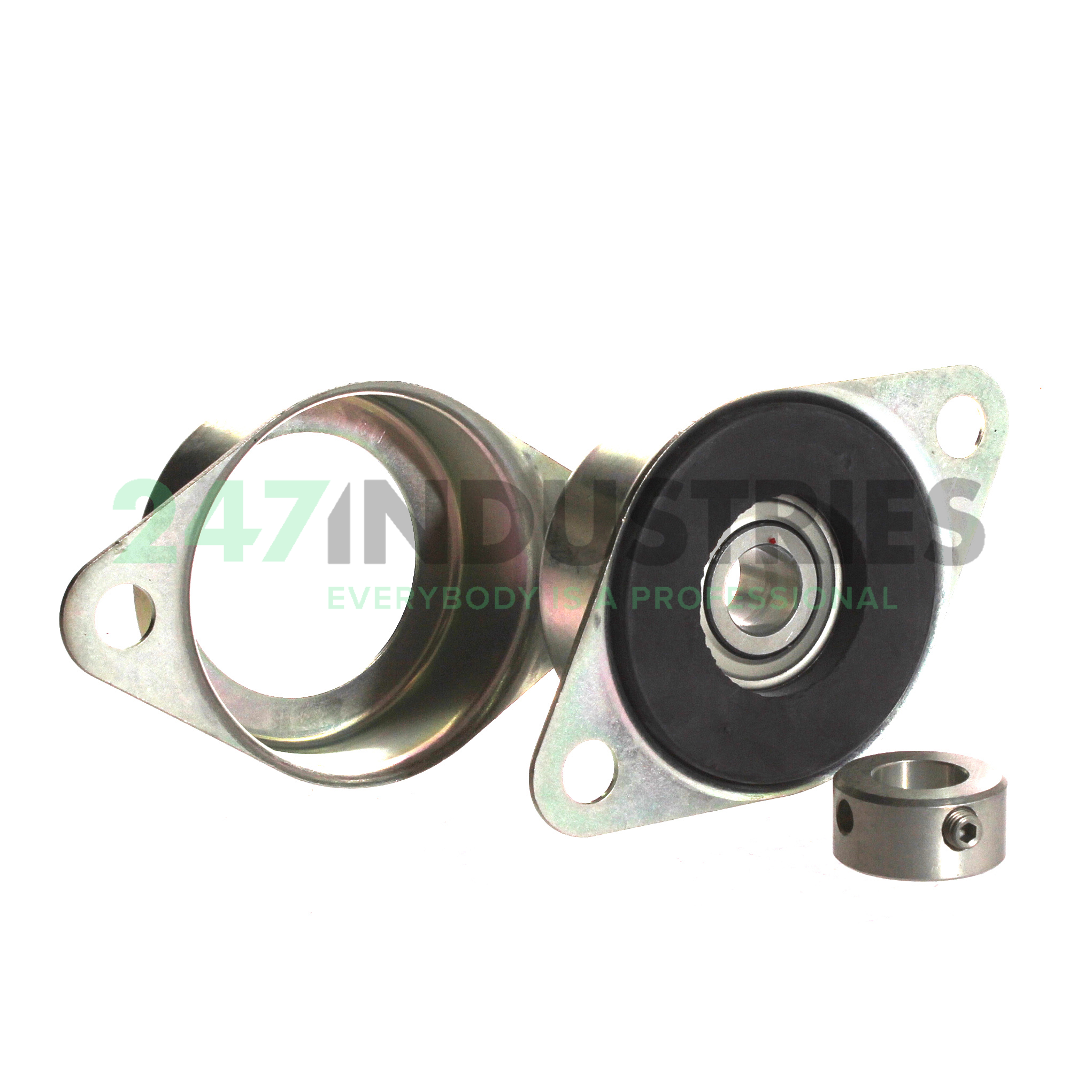

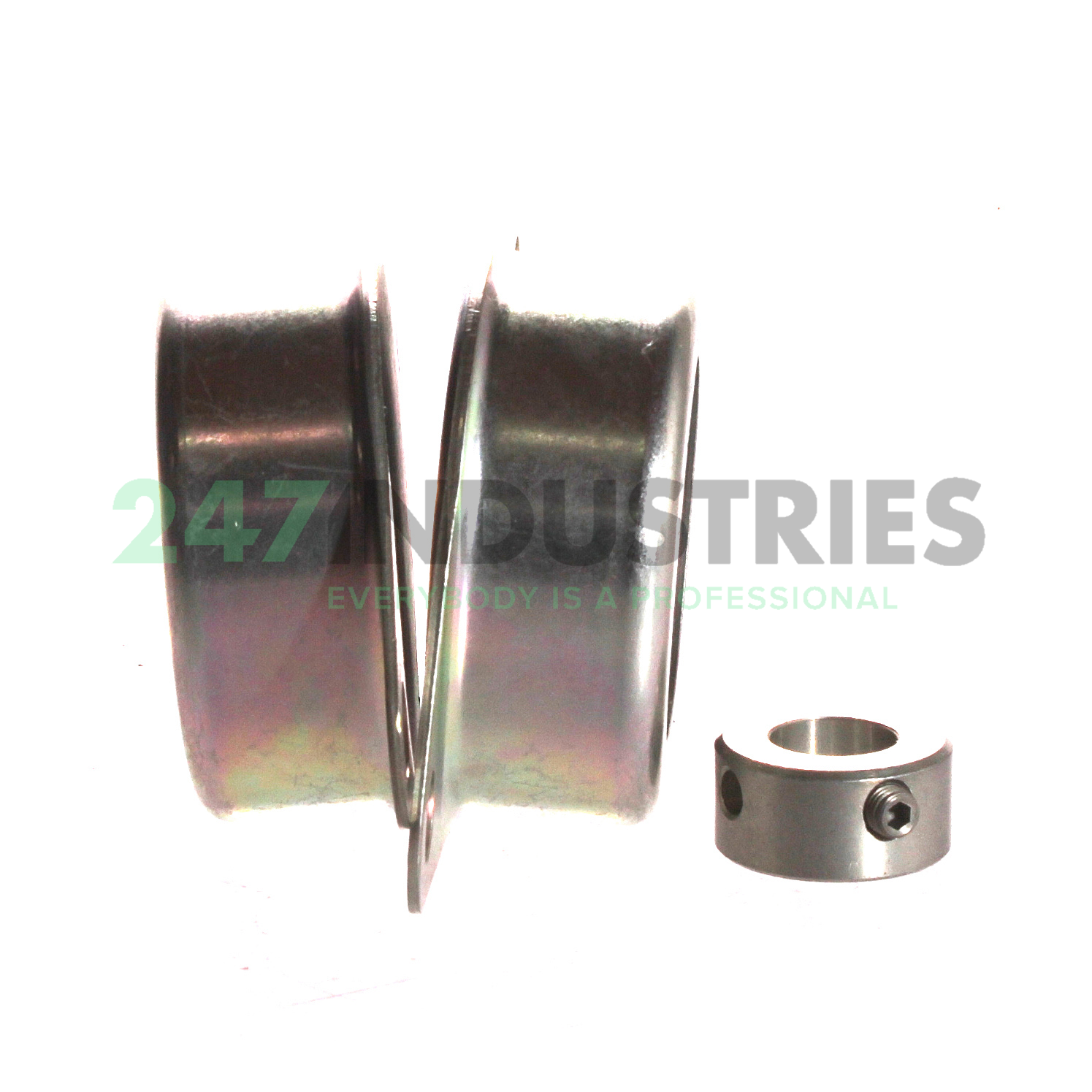

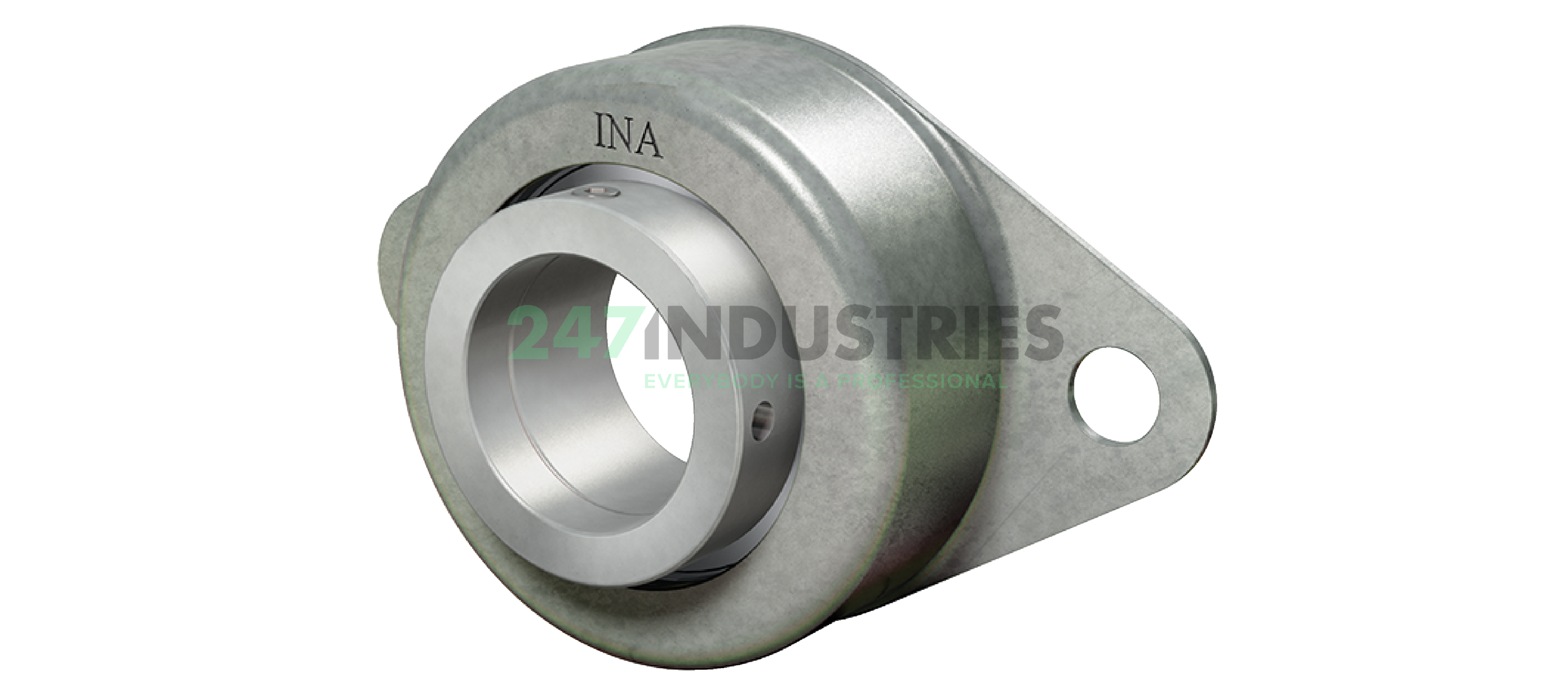

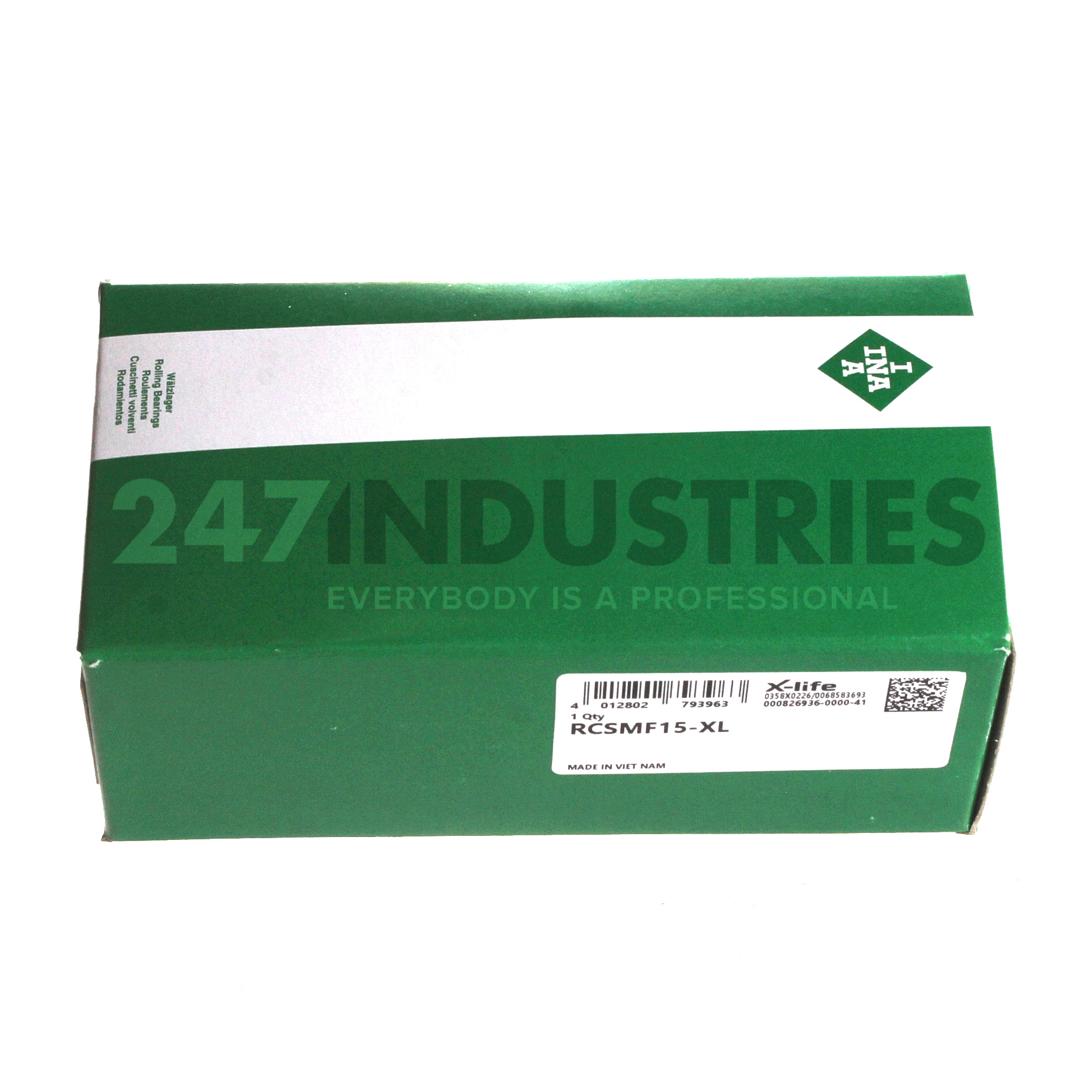

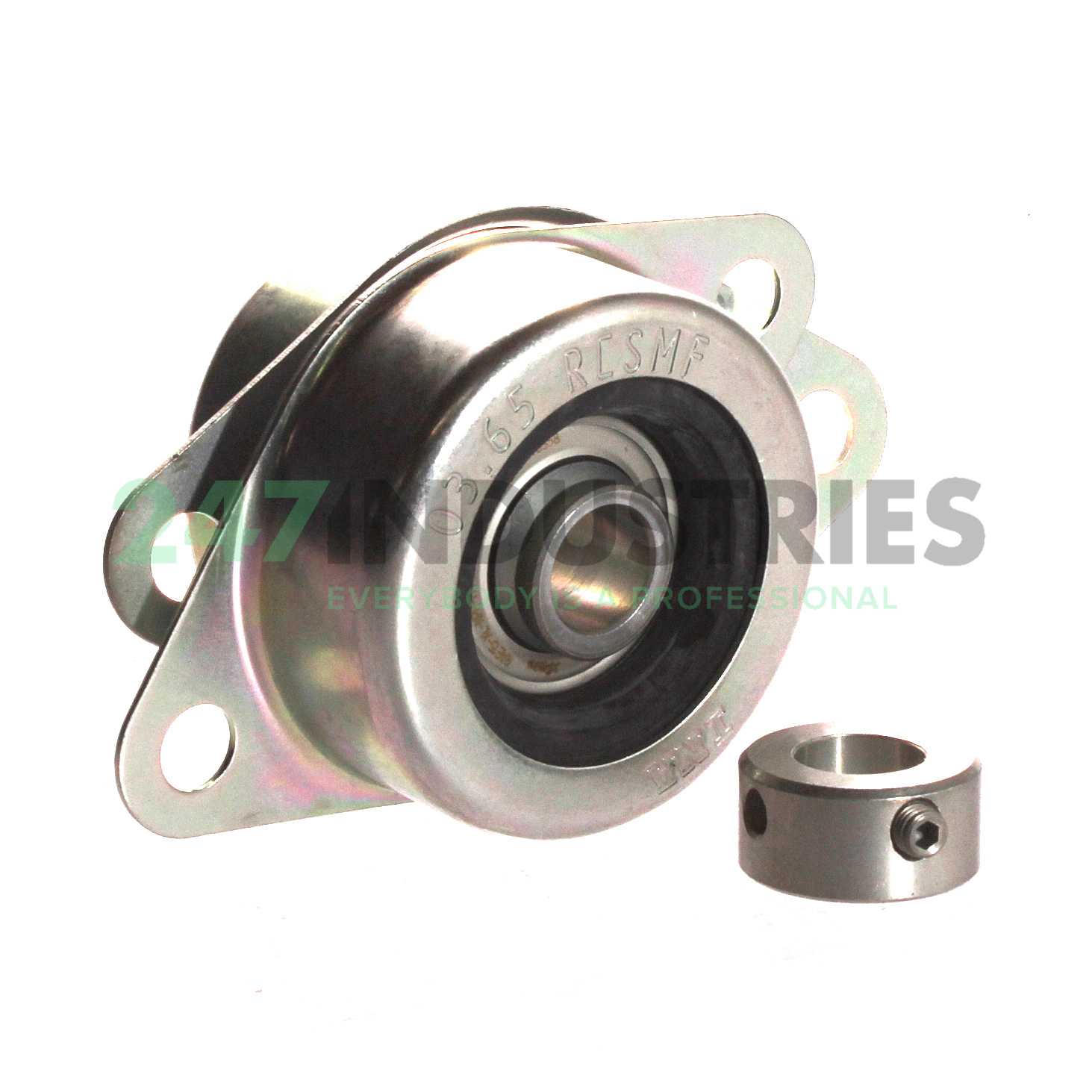

RCSMF15-XL INA

Housing unit

Stock
10 pcs in stock and ready for shipment
Brand INA
Article number RCSMF15-XL INA
Inside diameter 15mm
Outside diameter 114mm
Width 34,8mm
Product description

The RCSMF15-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RCSMF15-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 15
  2. Outer (D) MM 114
  3. Width (B) MM 34,8
  4. Inner (d) Inch 0.5906
  5. Outer (D) Inch 4.4882
  6. Width (B) Inch 1.3701
  7. Flange width (L) mm 70
  8. Height flange (H) mm 114
  9. Total height unit (U) mm 34,8

Suffix description

  1. XL X-Life

Technical details

  1. Availability 10 pcs
  2. Brand INA
  3. Item number RCSMF15-XL INA
  4. Also known as 0008269360000
    RCSMF15
  5. EAN 4012802793963
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.27

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 4750
  2. Radial Dynamic Load Rating Cr (N) 10100
  3. Basic static load rating, radial (C 0r) "4750.0000"
  4. Load carrying capacity (housing) (C 0r G) 900
  5. Load carrying capacity (housing) (C g) 900
  6. ECLASS number 23-05-16-02
  7. ECLASS2 number 23-05-16-02
  8. Medias description Housing units RCSMF, two-bolt flanged housing units, sheet steel, rubber interliner, eccentric locking collar, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
