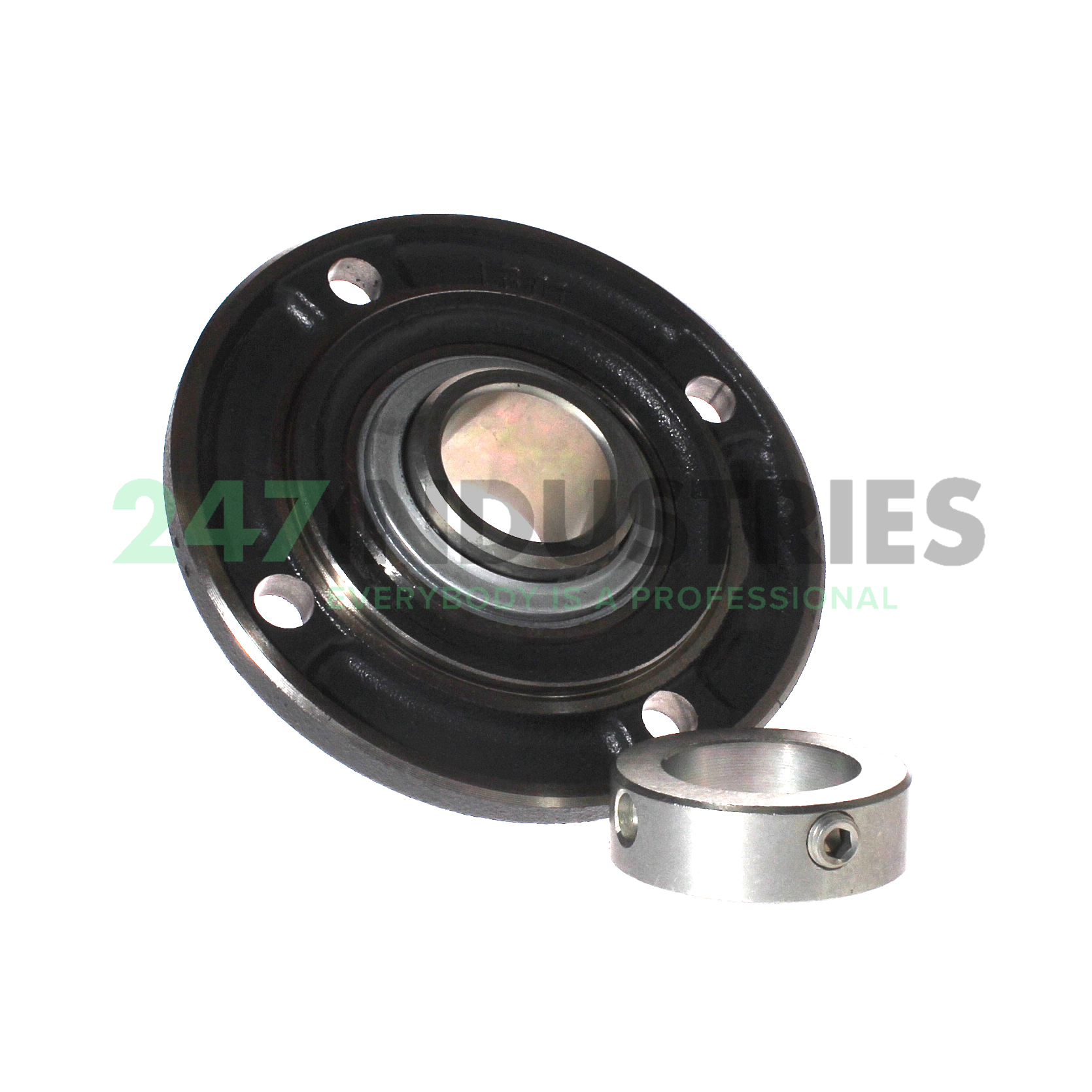

RFE35-XL INA

Housing unit

Stock
14 pcs in stock and ready for shipment
Brand INA
Article number RFE35-XL INA
Inside diameter 35mm
Outside diameter 135mm
Width 51,3mm
Product description

The RFE35-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RFE35-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35
  2. Outer (D) MM 135
  3. Width (B) MM 51,3
  4. Inner (d) Inch 1.378
  5. Outer (D) Inch 5.315
  6. Width (B) Inch 2.0197
  7. Height flange (H) mm 135
  8. Total height unit (U) mm 41,3

Suffix description

  1. XL X-Life

Technical details

  1. Availability 14 pcs
  2. Brand INA
  3. Item number RFE35-XL INA
  4. Also known as 0008276490000
    RFE35
  5. EAN 4012802793703
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.3

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 15300
  2. Radial Dynamic Load Rating Cr (N) 27500
  3. Basic static load rating, radial (C 0r) "15300.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units RFE, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, R seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
