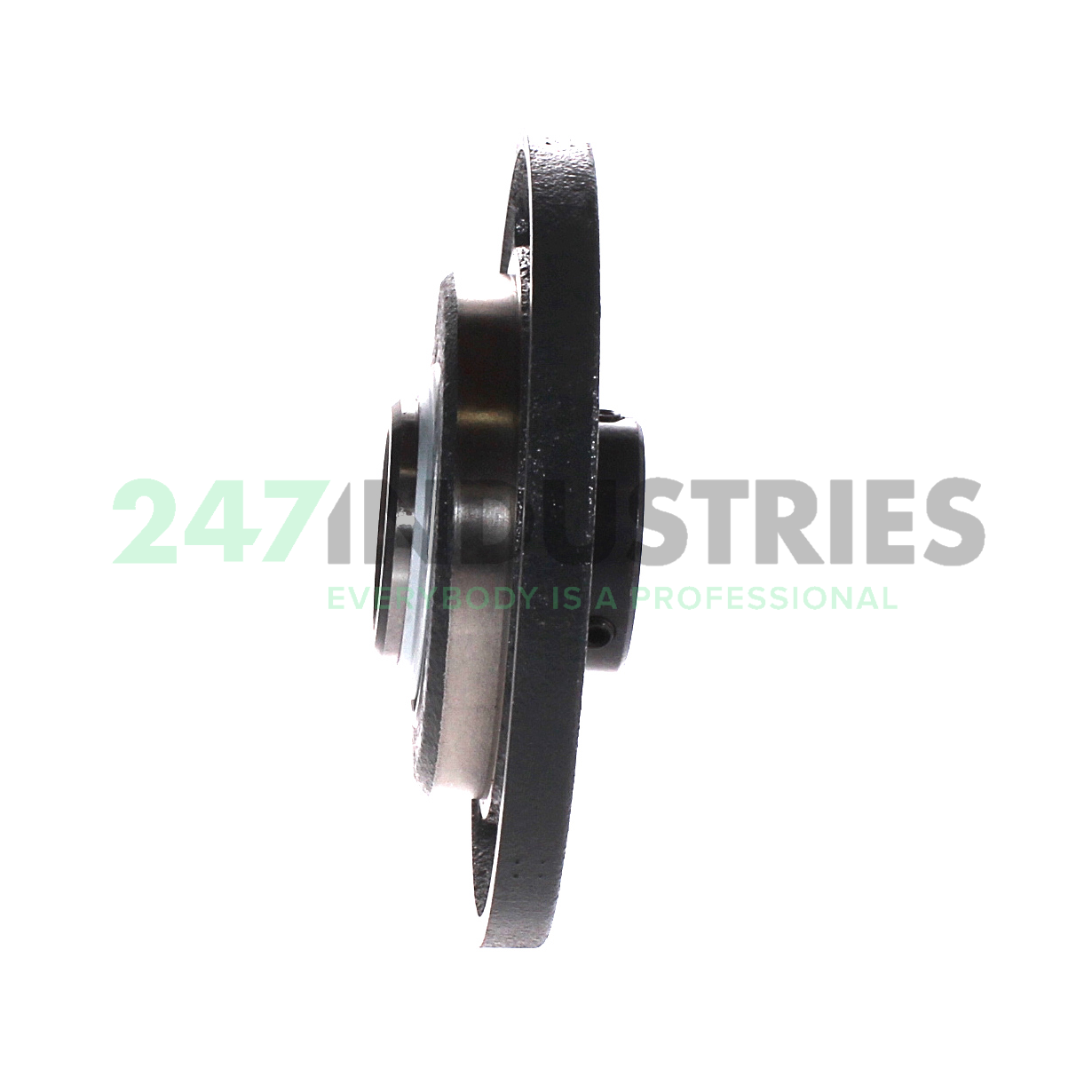

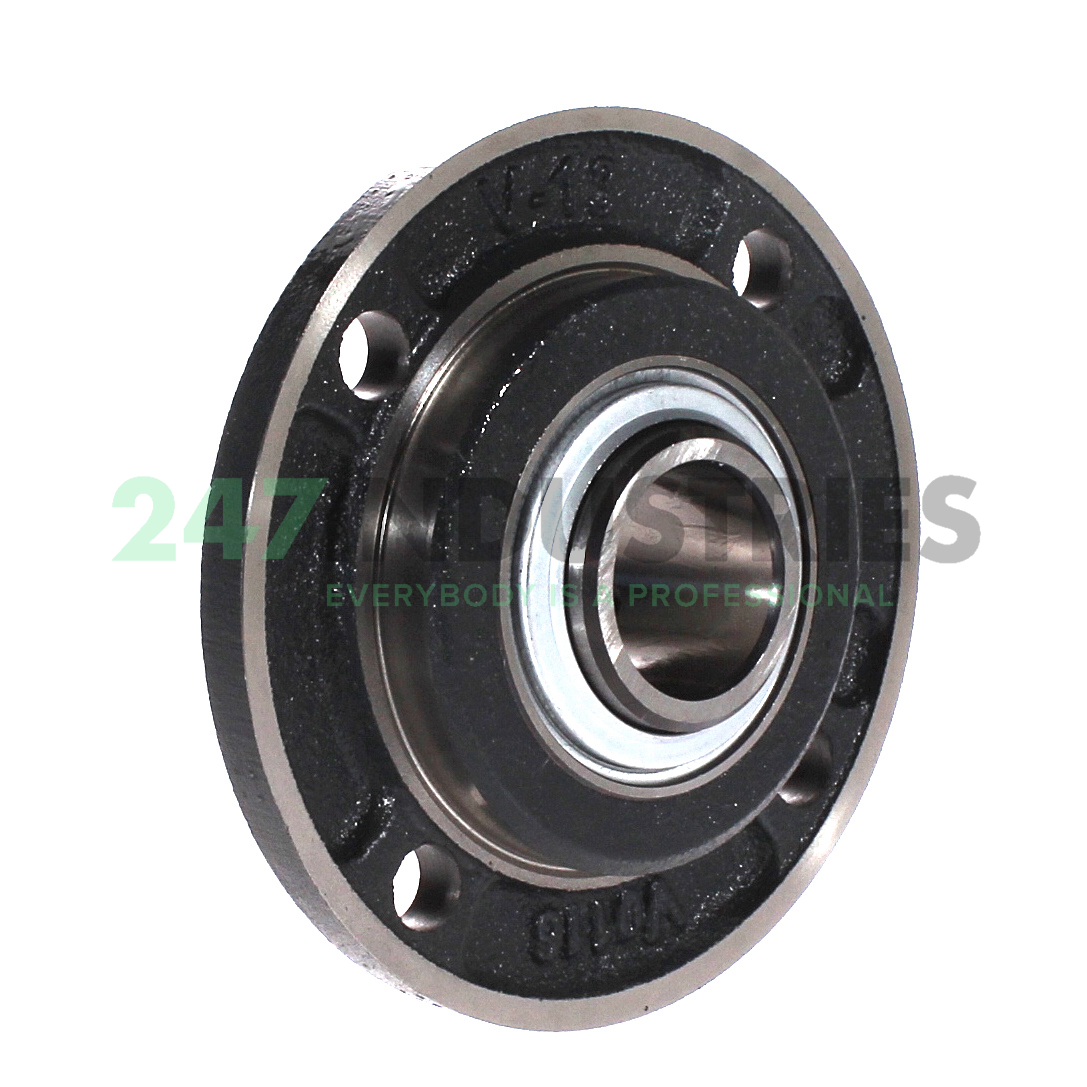

RMEY30-XL-N INA

Housing unit

Stock
6 pcs in stock and ready for shipment
Brand INA
Article number RMEY30-XL-N INA
Inside diameter 30mm
Outside diameter 125mm
Width 38,1mm
Product description

The RMEY30-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RMEY30-XL-N INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 125
  3. Width (B) MM 38,1
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 4.9213
  6. Width (B) Inch 1.5
  7. Height flange (H) mm 125
  8. Total height unit (U) mm 20,2

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 6 pcs
  2. Brand INA
  3. Item number RMEY30-XL-N INA
  4. Also known as 0009450800000
    RMEY30-N
  5. EAN 4012802803433
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.99

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 11300
  2. Radial Dynamic Load Rating Cr (N) 20700
  3. Basic static load rating, radial (C 0r) "11300.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units RMEY, four-bolt flanged housing units, cast iron, centring spigot, grub screws in inner ring, R seals
