RTUE45-XL INA

Name: RTUE45-XL INA
Brand: INA

€ 91,91 ex VAT

€ 111,21 incl. VAT

€ 91,91 ex VAT

	Guaranteed same day shipment on orders placed before 17.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

RTUE45-XL INA

Housing unit

Stock	40 pcs in stock and ready for shipment
Brand	INA
Article number	RTUE45-XL INA
Inside diameter	45mm
Outside diameter	117mm
Width	49mm

Product description

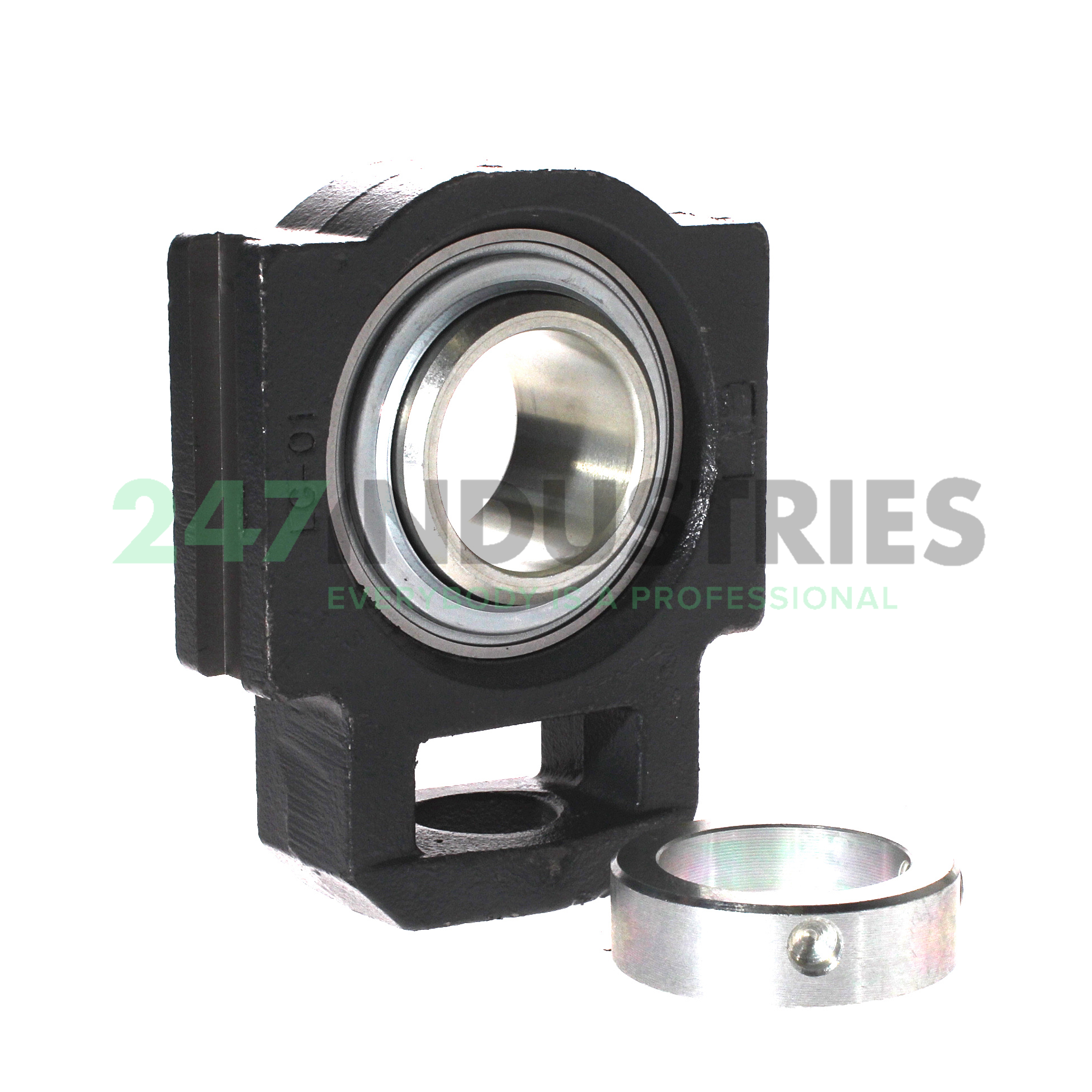

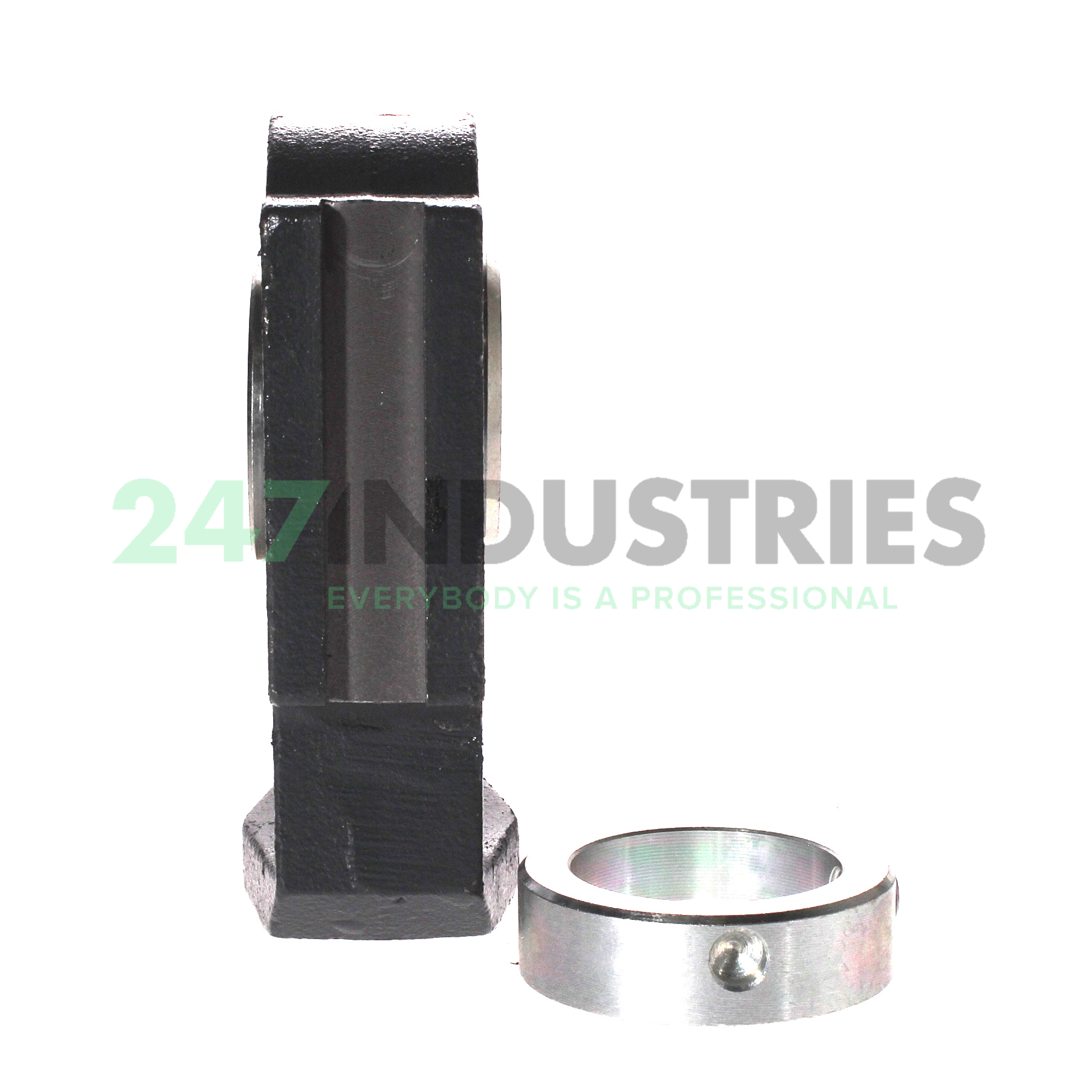

The RTUE45-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Start a chat
Call us at: +31 (0)85 00 22 247
Email us at: help@247industries.com Response within 24h

Downloads and links

Similar to: RTUE45-XL INA

Loading similair products

Product specifications

Inside diameter 45mm
Outside diameter 117mm
Width 49mm

All dimensions

Inner (d) MM 45
Outer (D) MM 117
Width (B) MM 49
Inner (d) Inch 1.7717
Outer (D) Inch 4.6063
Width (B) Inch 1.9291
Height (H) mm 115
Length total (L) mm 141

Suffix description

XL X-Life

Technical details

Availability 40 pcs
Brand INA
Item number RTUE45-XL INA
Also known as 0008276810000
GE45KRRB + TUE09
RTUE45
TU45WF
EAN 4012802793611
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 2.41

Product Properties

Seal 2F - Standard Seal for Y-bearings
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-03
ECLASS2 number 23-05-16-03
Medias description Take-up housing units RTUE, cast iron housing, radial insert ball bearing with eccentric locking collar, R seals
