RWU35-E-V3-G2 INA

All dimensions

1. Inner (d) MM 34
2. Outer (D) MM 100
3. Width (B) MM 122,9
4. Inner (d) Inch 1.3386
5. Outer (D) Inch 3.937
6. Width (B) Inch 4.8386
7. Width carriage (B) mm 100
8. Overall length carriage (L) mm 122,9

Suffix description

1. E Version
2. V3 Preload Class 3
3. G2 Precision Class 2

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number RWU35-E-V3-G2 INA
4. Also known as RWU35-E-G2-V3

5. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.75

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 59000
2. Dynamic load rating (C 0) 140000
3. Static moment rating about X axis (M 0x) 1200
4. Static moment rating about Y axis (M 0y) 2150
5. Static moment rating about Z axis (M 0z) 1950
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90

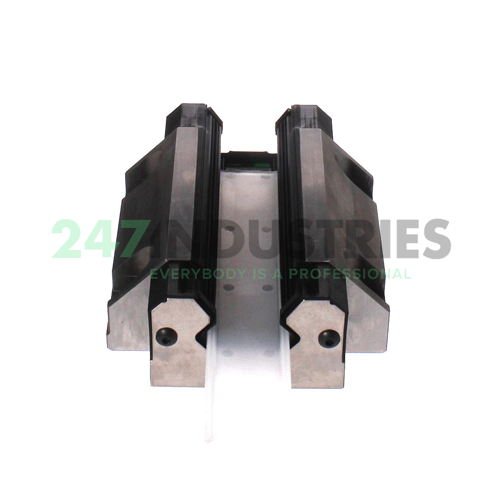

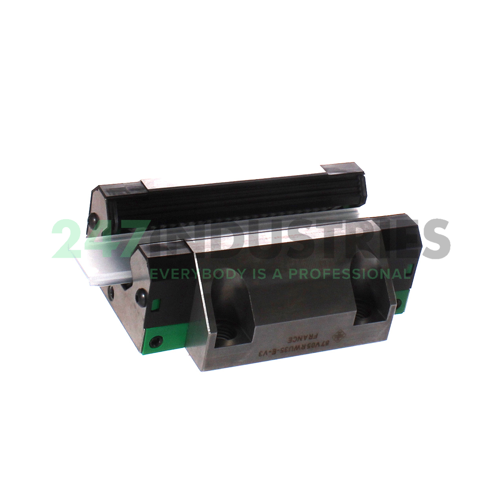

8. Medias description Standard carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication

Downloads and links

1. Link to manufacturer Link to manufacturer
