RWU45-E-HL-V5-G2 INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 86
3. Width (B) MM 178,3
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3858
6. Width (B) Inch 7.0197

Suffix description

1. E Version
2. HL High, Long Carriage
3. V5 Preload Class 5
4. G2 Precision Class 2

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number RWU45-E-HL-V5-G2 INA
4. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 3.95

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. ECLASS number 23-30-04-90
2. ECLASS2 number 23-30-04-90

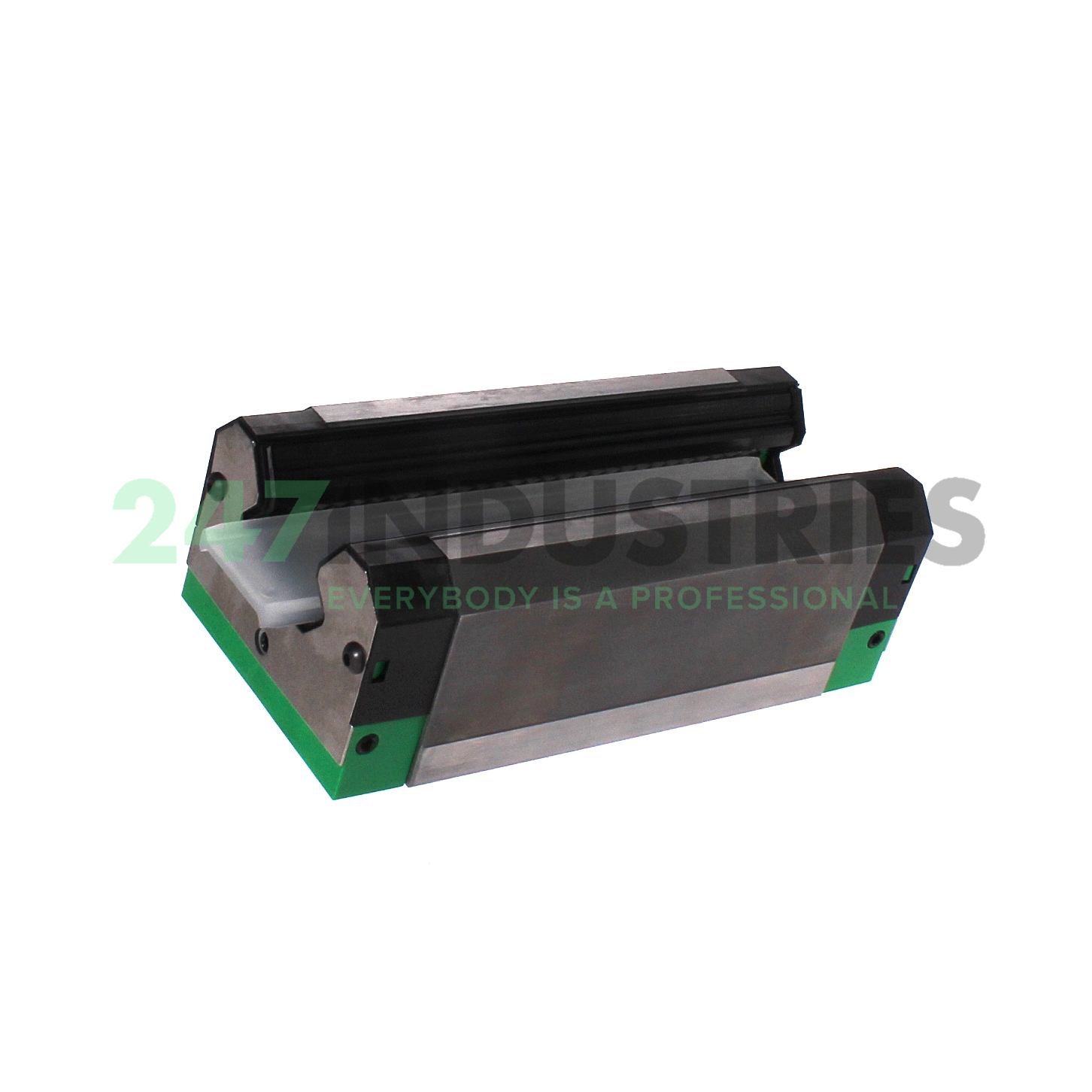

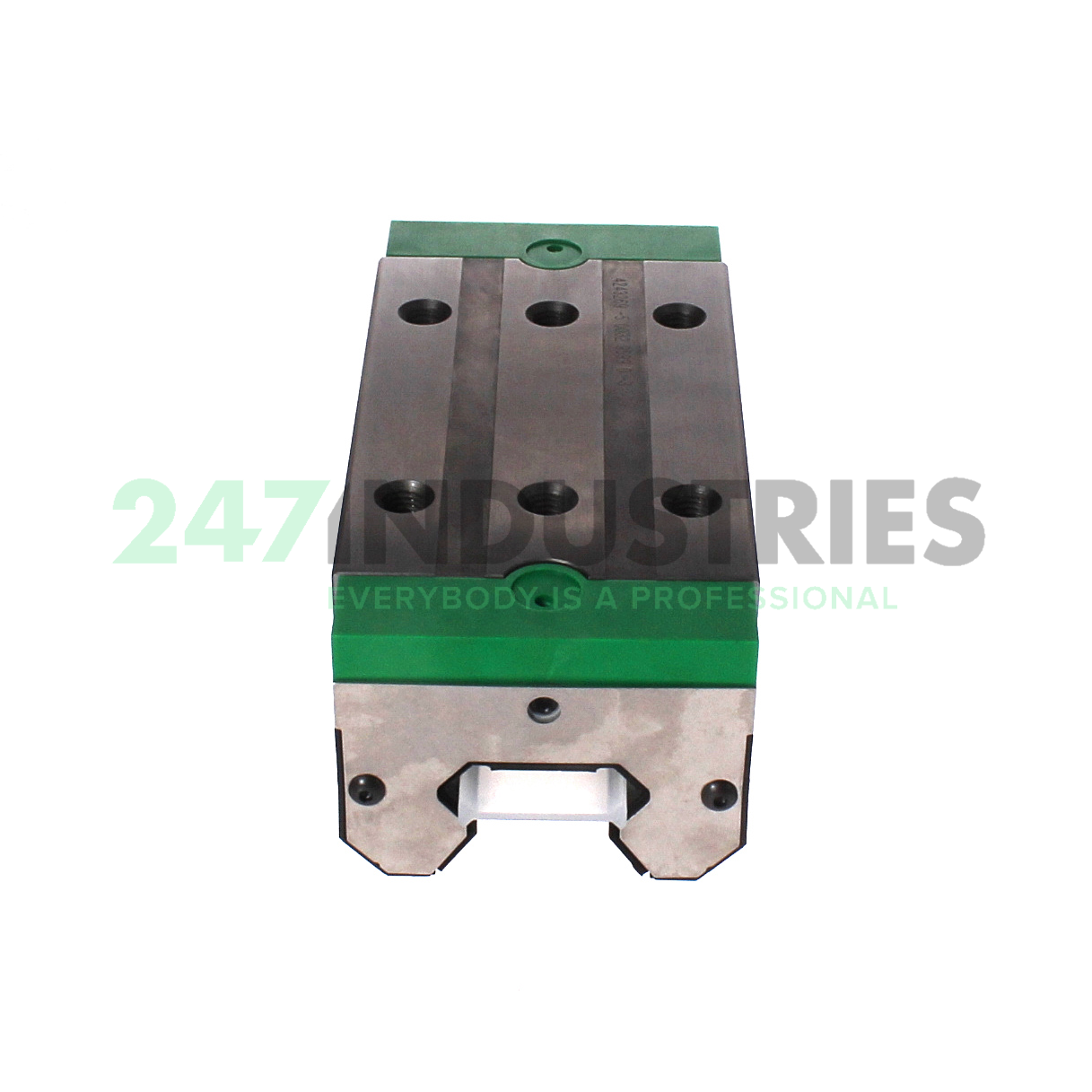

3. Medias description High, narrow, long carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication

Downloads and links

1. Link to manufacturer Link to manufacturer
