S61801-2Z-HLC FAG

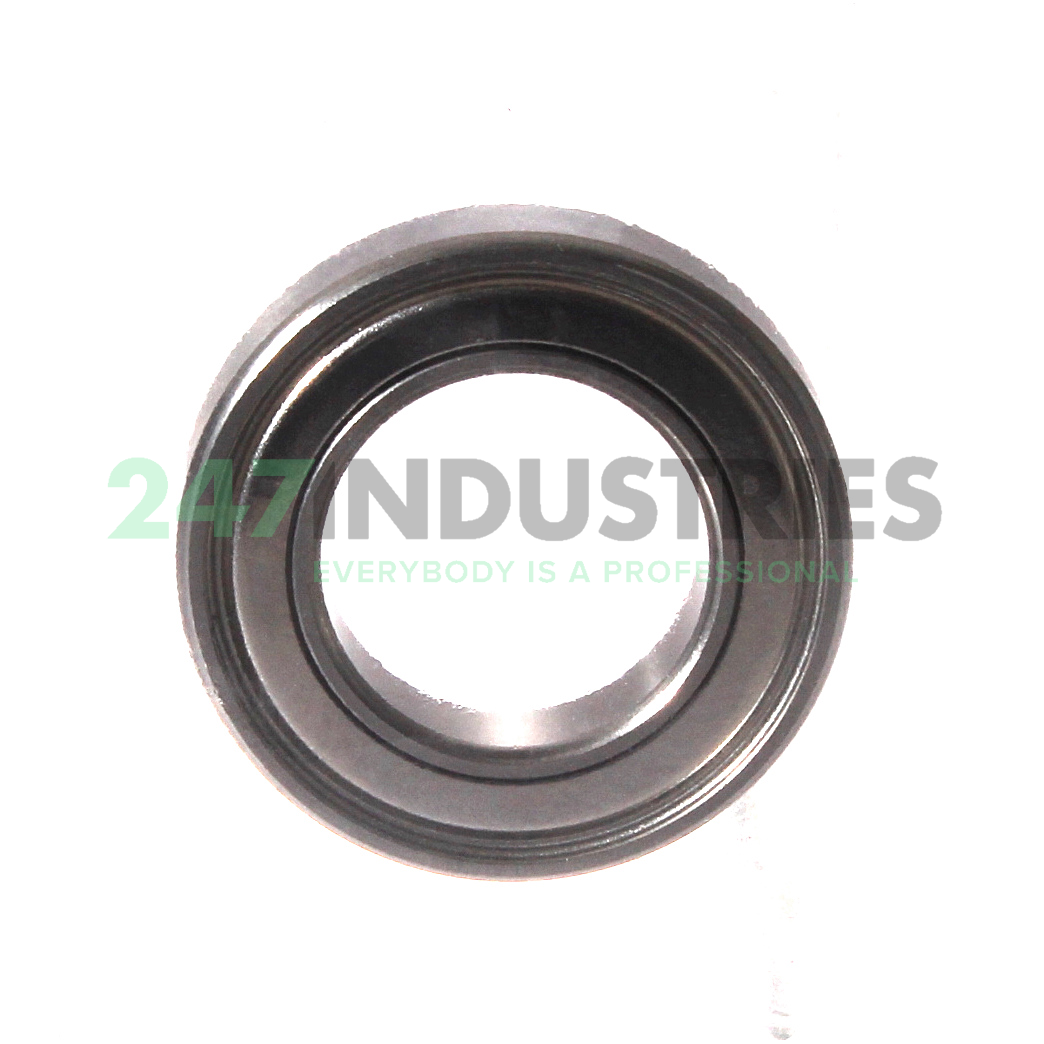

Stainless steel ball bearing with double-sided seal 12 mm

Stock
177 pcs in stock and ready for shipment
Brand FAG
Article number S61801-2Z-HLC FAG
Inside diameter 12mm
Outside diameter 21mm
Width 5mm
Product description

The S61801-2Z-HLC FAG is a stainless steel deep groove ball bearing. Stainless steel is highly corrosion-resistant. This makes stainless steel bearings suitable for environments where the presence of moisture or chemicals is a factor. These environments include the food industry, and pharmaceutical- and chemical applications. Moreover, stainless steel can withstand relatively high temperatures. However, stainless steel bearings do have slightly lower load carrying capacities compared to chrome-steel bearings.

Other than that, the characteristics of the S61801-2Z-HLC FAG are similar to those of standard chrome-steel deep groove ball bearings. Like all single-row deep groove ball bearings, they are of simple and sturdy design. They are practically maintenance-free. Deep groove ball bearings are especially suitable for accommodating radial loads. To a lesser extent, they can also be axially loaded in both directions.

Read more Show less
Help with this product

Downloads and links

Similar to: S61801-2Z-HLC FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 21
  3. Width (B) MM 5
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 0.8268
  6. Width (B) Inch 0.1969
  7. Width (b) mm 5

Suffix description

  1. 2Z Two Metallic Shields
  2. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

  1. Availability 177 pcs
  2. Brand FAG
  3. Item number S61801-2Z-HLC FAG
  4. Also known as 0551850100000
    61801H ZZ
  5. EAN 4012802649314
  6. Category Stainless Steel Ball Bearings

Weight and Dimensions

  1. Weight (kg) 0.006

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal ZZ/2Z - Steel Seal on Two Sides
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Basic static load rating, radial (C 0r) 834
  2. Limiting speed (n G) 42500
  3. ECLASS number 23-05-08-01
  4. ECLASS2 number 23-05-08-01
