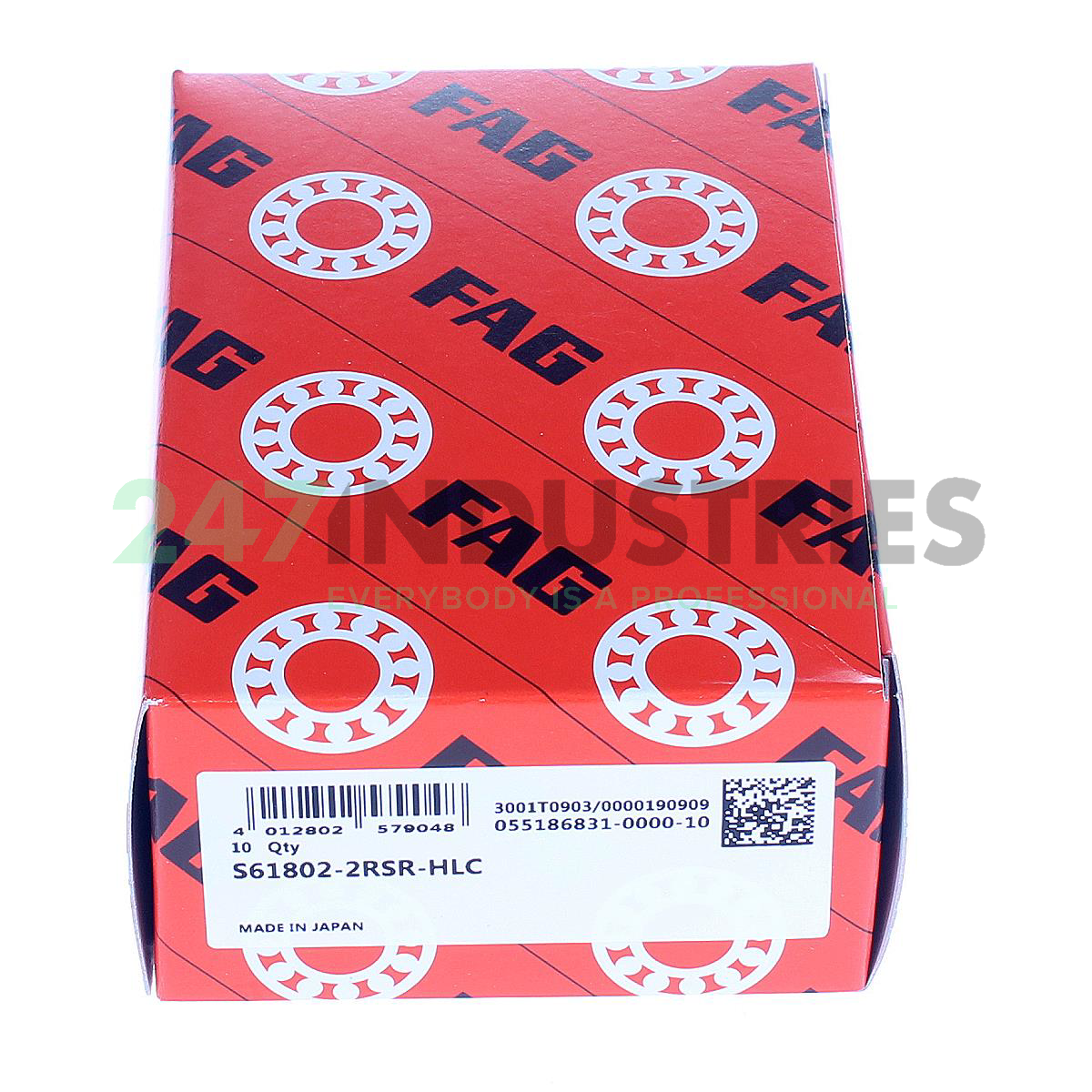

S61802-2RSR-HLC FAG

Stainless steel ball bearing with double-sided seal 15 mm

Stock
250 pcs available for shipment on Fri 29 Nov
Brand FAG
Article number S61802-2RSR-HLC FAG
Inside diameter 15mm
Outside diameter 24mm
Width 5mm
Product description

The S61802-2RSR-HLC FAG is a stainless steel deep groove ball bearing. Stainless steel is highly corrosion-resistant. This makes stainless steel bearings suitable for environments where the presence of moisture or chemicals is a factor. These environments include the food industry, and pharmaceutical- and chemical applications. Moreover, stainless steel can withstand relatively high temperatures. However, stainless steel bearings do have slightly lower load carrying capacities compared to chrome-steel bearings.

Other than that, the characteristics of the S61802-2RSR-HLC FAG are similar to those of standard chrome-steel deep groove ball bearings. Like all single-row deep groove ball bearings, they are of simple and sturdy design. They are practically maintenance-free. Deep groove ball bearings are especially suitable for accommodating radial loads. To a lesser extent, they can also be axially loaded in both directions.

Read more Show less
Help with this product

Downloads and links

Similar to: S61802-2RSR-HLC FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 15
  2. Outer (D) MM 24
  3. Width (B) MM 5
  4. Inner (d) Inch 0.5906
  5. Outer (D) Inch 0.9449
  6. Width (B) Inch 0.1969
  7. Width (b) mm 5

Suffix description

  1. 2RSR Rubber Seals At Each Side Of The Bearing
  2. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

  1. Availability 250 pcs on Fri 29 Nov
  2. Brand FAG
  3. Item number S61802-2RSR-HLC FAG
  4. Also known as 0551868310000
    W61802-2RS1
  5. EAN 4012802579048
  6. Category Stainless Steel Ball Bearings

Weight and Dimensions

  1. Weight (kg) 0.0074

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal 2RS - Rubber Seal on Two Sides
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 1010
  2. Radial Dynamic Load Rating Cr (N) 1760
  3. Limiting speed (n G) 15000
  4. ECLASS number 23-05-08-01
  5. ECLASS2 number 23-05-08-01
  6. Medias description Deep groove ball bearings S618..-2RSR, main dimensions to DIN 625-1, with anti-corrosion protection, lip seals on both sides

Downloads and links

  1. Link to manufacturer Link to manufacturer
