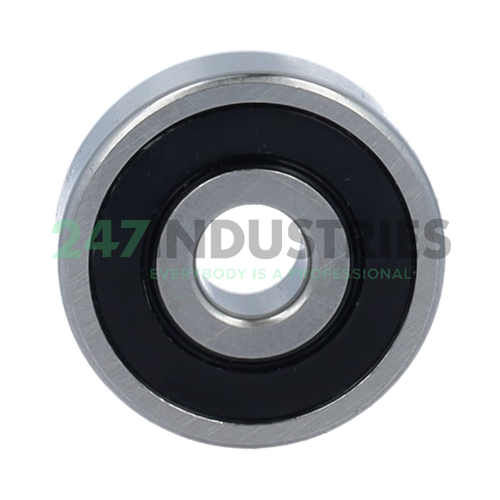

S6300-2RS-FD FAG

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 35
3. Width (B) MM 11
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 1.378
6. Width (B) Inch 0.4331

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. FD Bearing Designed For Food Industry. Significantly Higher Corrosion And Media Resistance

Technical details

1. Availability 38 pcs
2. Brand FAG
3. Item number S6300-2RS-FD FAG
4. Also known as 0977704770000
   S6300 2RS
   S6300-2RSR
   SS6300 2RS
   W6300-2RS1
   W6300-2RS1/VP311

5. EAN 4064328325012
6. Category Stainless Steel Ball Bearings

Weight and Dimensions

1. Weight (kg) 0.055

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Food Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
