S63800-2RSR-HLC FAG

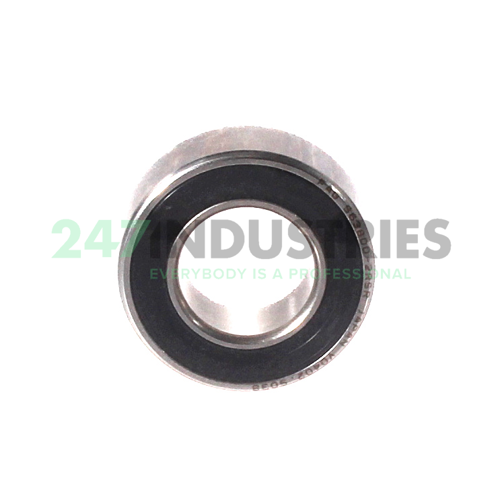

Stainless steel ball bearing with double-sided seal 10 mm

Stock
11 pcs in stock and ready for shipment
Brand FAG
Article number S63800-2RSR-HLC FAG
Inside diameter 10mm
Outside diameter 19mm
Width 7mm
Product description

The S63800-2RSR-HLC FAG is a stainless steel deep groove ball bearing. Stainless steel is highly corrosion-resistant. This makes stainless steel bearings suitable for environments where the presence of moisture or chemicals is a factor. These environments include the food industry, and pharmaceutical- and chemical applications. Moreover, stainless steel can withstand relatively high temperatures. However, stainless steel bearings do have slightly lower load carrying capacities compared to chrome-steel bearings.

Other than that, the characteristics of the S63800-2RSR-HLC FAG are similar to those of standard chrome-steel deep groove ball bearings. Like all single-row deep groove ball bearings, they are of simple and sturdy design. They are practically maintenance-free. Deep groove ball bearings are especially suitable for accommodating radial loads. To a lesser extent, they can also be axially loaded in both directions.

Help with this product

Downloads and links

Similar to: S63800-2RSR-HLC FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 10
  2. Outer (D) MM 19
  3. Width (B) MM 7
  4. Inner (d) Inch 0.3937
  5. Outer (D) Inch 0.748
  6. Width (B) Inch 0.2756

Suffix description

  1. 2RSR Rubber Seals At Each Side Of The Bearing
  2. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

  1. Availability 11 pcs
  2. Brand FAG
  3. Item number S63800-2RSR-HLC FAG
  4. Also known as 0761286360000
    W63800-2RS1
  5. EAN 4047643002516
  6. Category Stainless Steel Ball Bearings

Weight and Dimensions

  1. Weight (kg) 0.0074

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal 2RS - Rubber Seal on Two Sides
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-08-01
  2. ECLASS2 number 23-05-08-01

Downloads and links

  1. Link to manufacturer Link to manufacturer
