SAKAC12M SKF

Rod end

Stock
100 pcs available
Brand SKF
Article number SAKAC12M SKF
Inside diameter 12mm
Outside diameter 33mm
Width 16mm
Product description

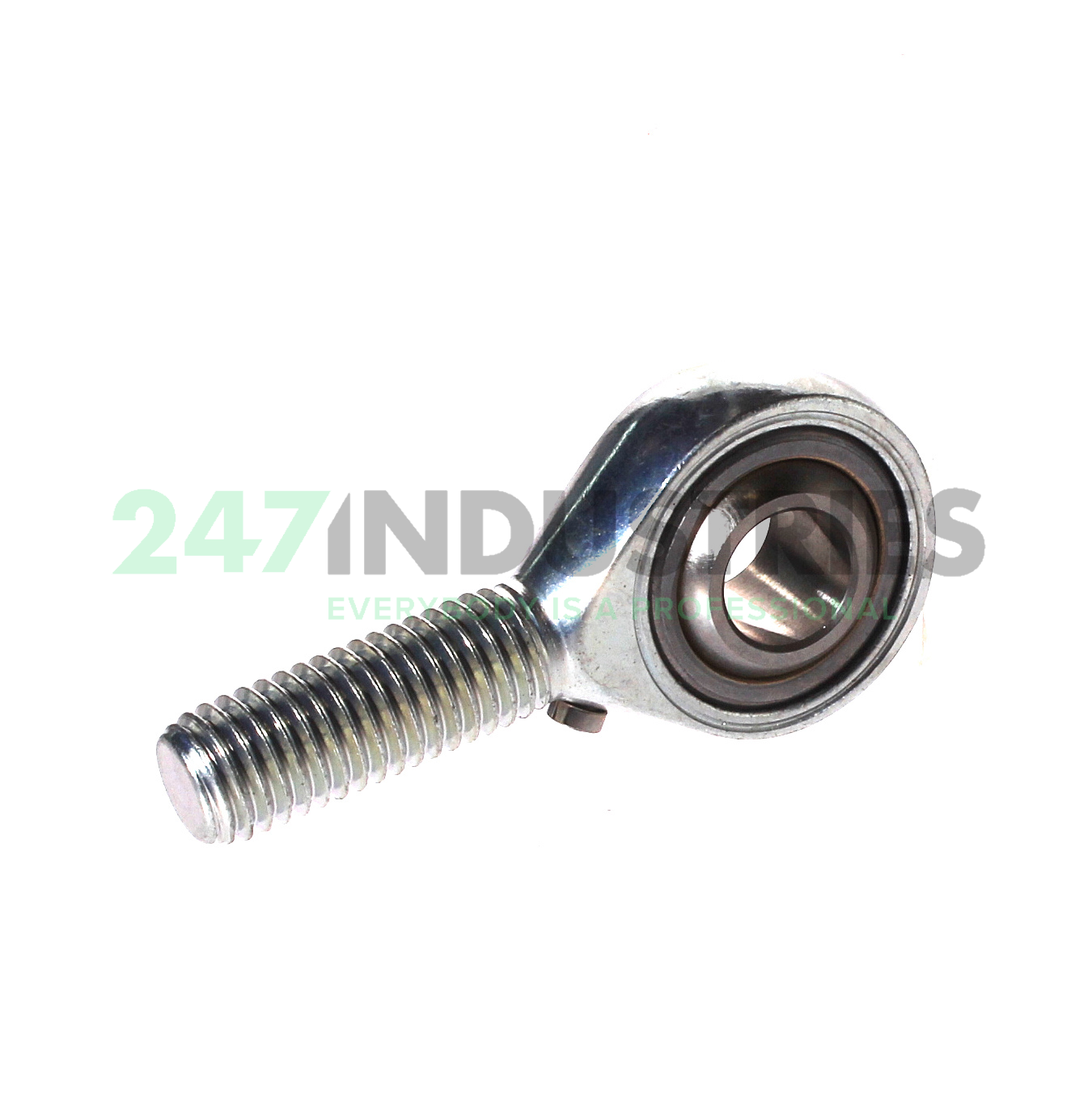

The SAKAC12M SKF is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The SAKAC12M SKF has a spherical plain bearing with a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Similar to: SAKAC12M SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 33
  3. Width (B) MM 16
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 1.2992
  6. Width (B) Inch 0.6299

Suffix description

  1. M Steel/Bronze

Technical details

  1. Availability 100 pcs
  2. Brand SKF
  3. Item number SAKAC12M SKF
  4. Also known as GAKFR12PB
  5. EAN 7316577068927
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.085

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Bronze
