SAKAC20M SKF

Rod end

Stock
11 pcs available for shipment on Tue 12 Nov
Brand SKF
Article number SAKAC20M SKF
Inside diameter 20mm
Outside diameter 51mm
Width 25mm
Product description

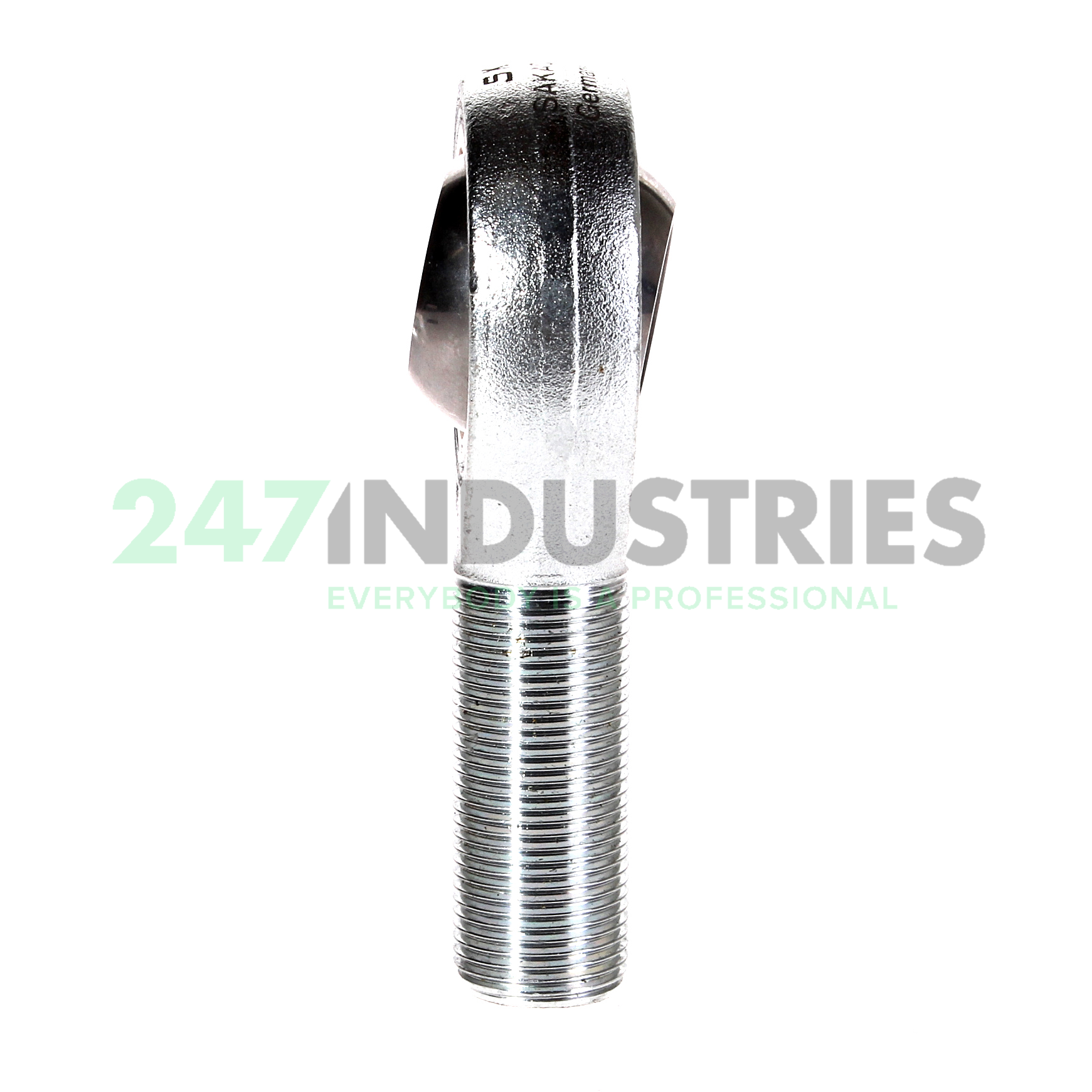

The SAKAC20M SKF is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The SAKAC20M SKF has a spherical plain bearing with a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Similar to: SAKAC20M SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 51
  3. Width (B) MM 25
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 2.0079
  6. Width (B) Inch 0.9843

Suffix description

  1. M Steel/Bronze

Technical details

  1. Availability 11 pcs on Tue 12 Nov
  2. Brand SKF
  3. Item number SAKAC20M SKF
  4. Also known as GAKFR20PB
    POS20A
  5. EAN 7316577311535
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.34

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Bronze
