SC20ES SKF

Rod end

Stock
1 pc available for shipment on Thu 5 Dec
Brand SKF
Article number SC20ES SKF
Inside diameter 20mm
Outside diameter 54mm
Width 16mm
Product description

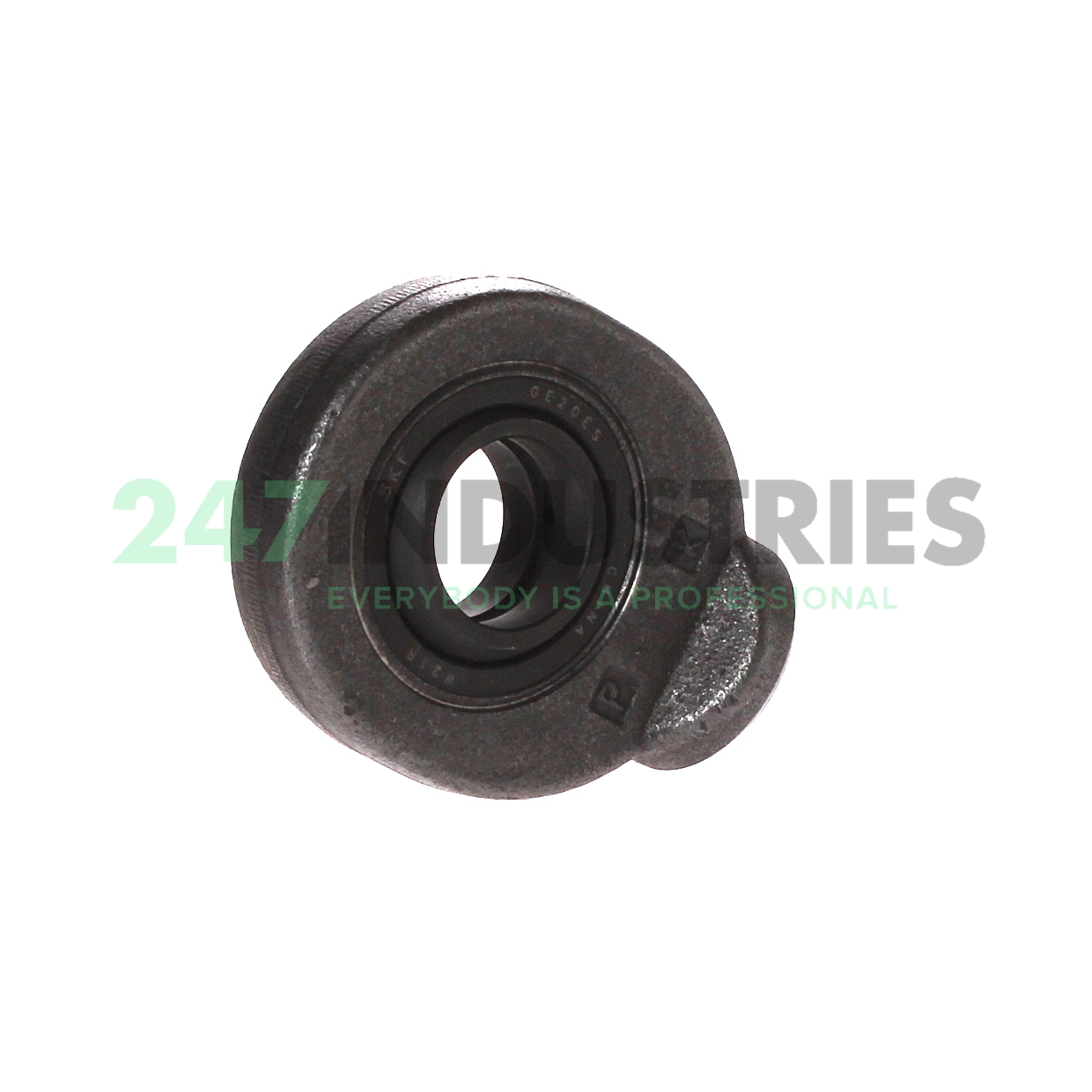

The SC20ES SKF is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The SC20ES SKF has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Similar to: SC20ES SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 54
  3. Width (B) MM 16
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 2.126
  6. Width (B) Inch 0.6299

Suffix description

  1. ES Steel-On-Steel, Annular Groove And Lubrication Holes In Both Inner And Outer Rings

Technical details

  1. Availability 1 pc on Thu 5 Dec
  2. Brand SKF
  3. Item number SC20ES SKF
  4. Also known as GK20DO
    GK20ES
    SC20DO
  5. EAN 7316577023193
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.2335

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Steel
