SC25ES SKF

Rod end

Stock
20 pcs available
Brand SKF
Article number SC25ES SKF
Inside diameter 25mm
Outside diameter 65mm
Width 20mm
Product description

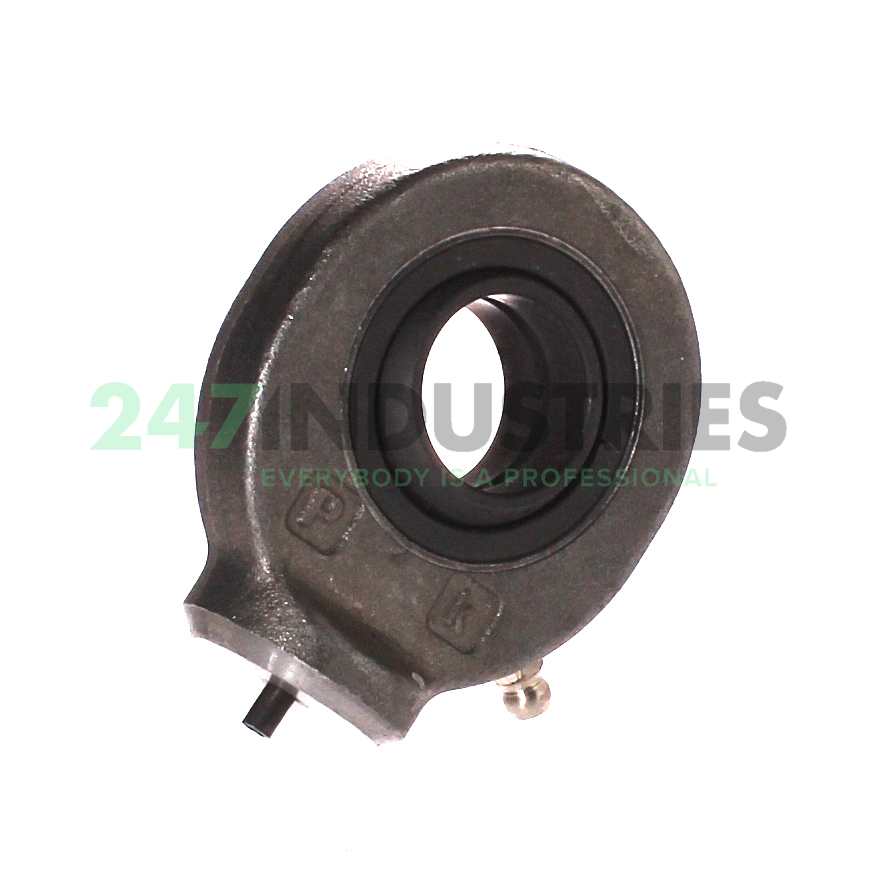

The SC25ES SKF is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The SC25ES SKF has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Similar to: SC25ES SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25
  2. Outer (D) MM 65
  3. Width (B) MM 20
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 2.5591
  6. Width (B) Inch 0.7874

Suffix description

  1. ES Steel-On-Steel, Annular Groove And Lubrication Holes In Both Inner And Outer Rings

Technical details

  1. Availability 20 pcs
  2. Brand SKF
  3. Item number SC25ES SKF
  4. Also known as GK25DO
    GK25ES
    SC25DO
  5. EAN 7316577002754
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.43

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Steel
