SIBP8S LS

Rod end

Stock
9 pcs in stock and ready for shipment
Brand LS
Article number SIBP8S LS
Inside diameter 8mm
Outside diameter 25mm
Width 12mm
Product description

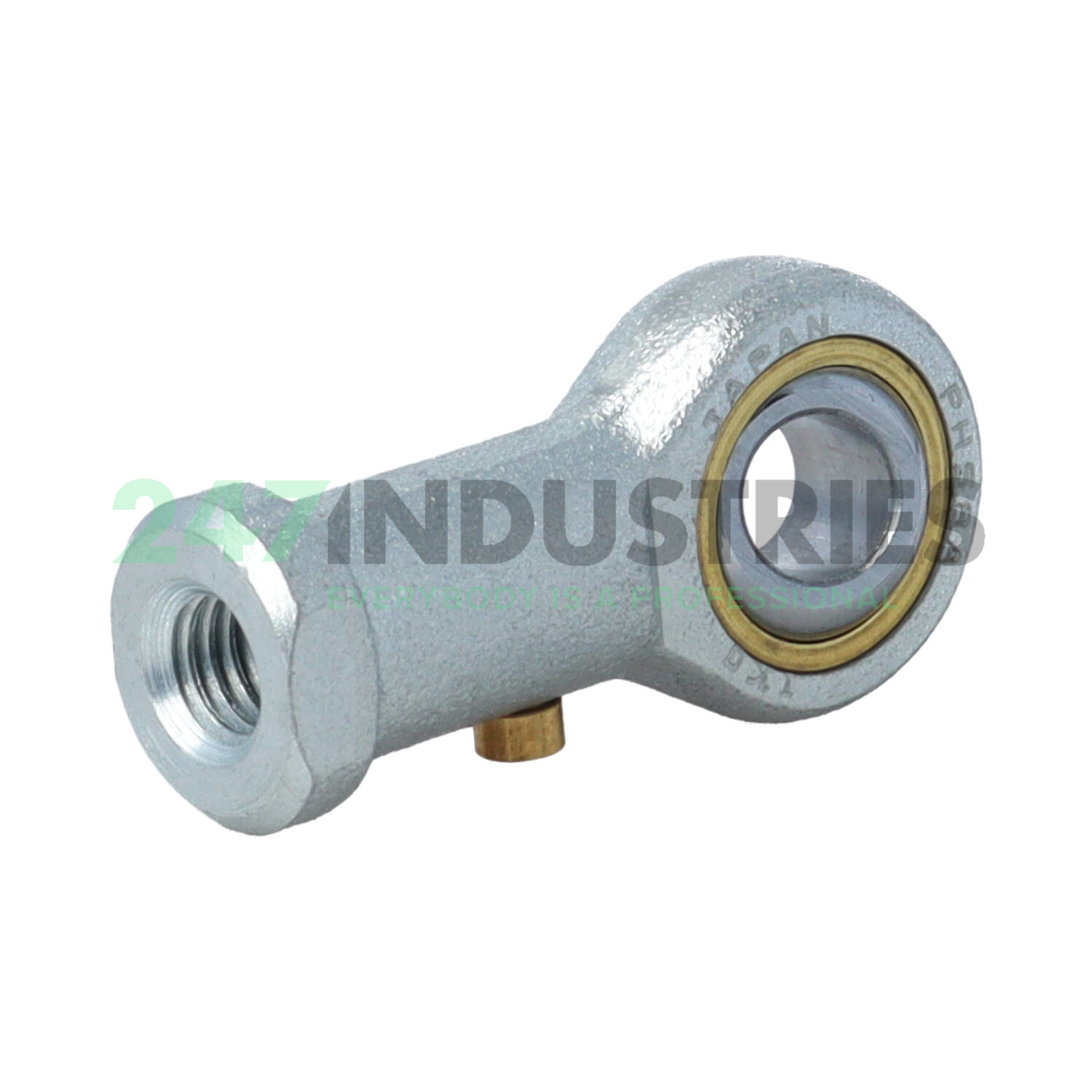

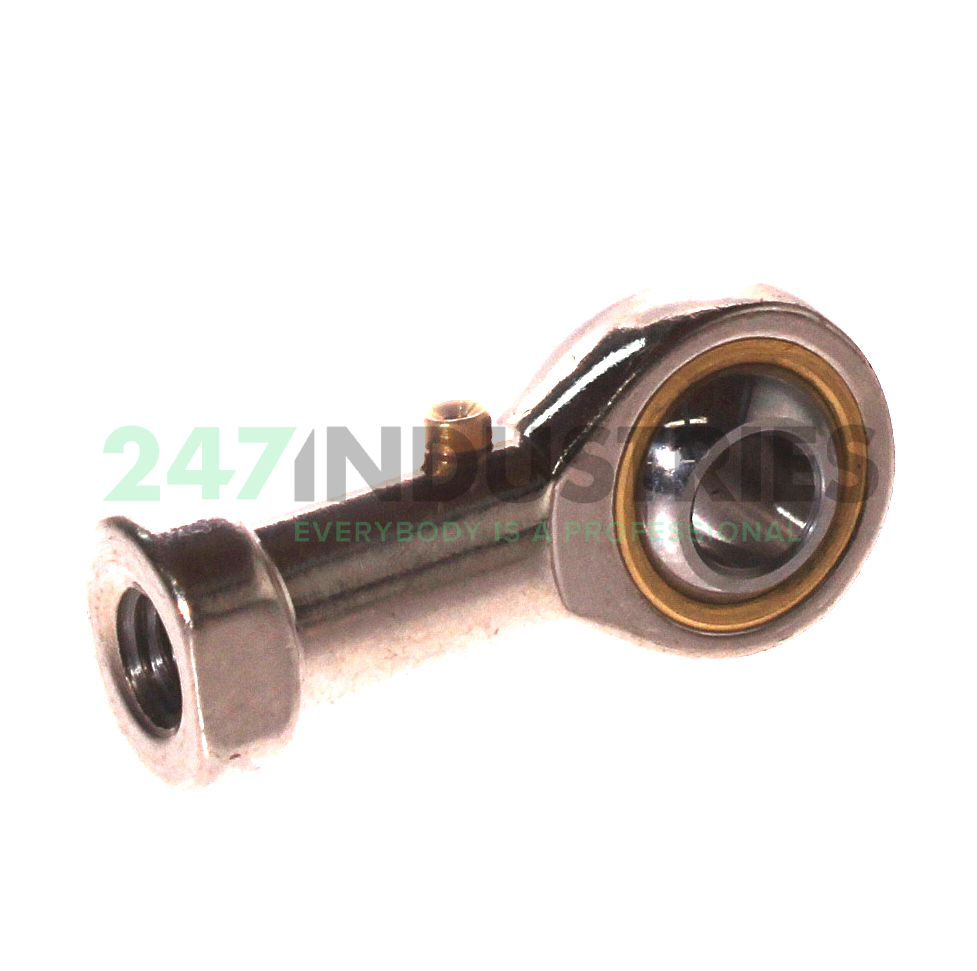

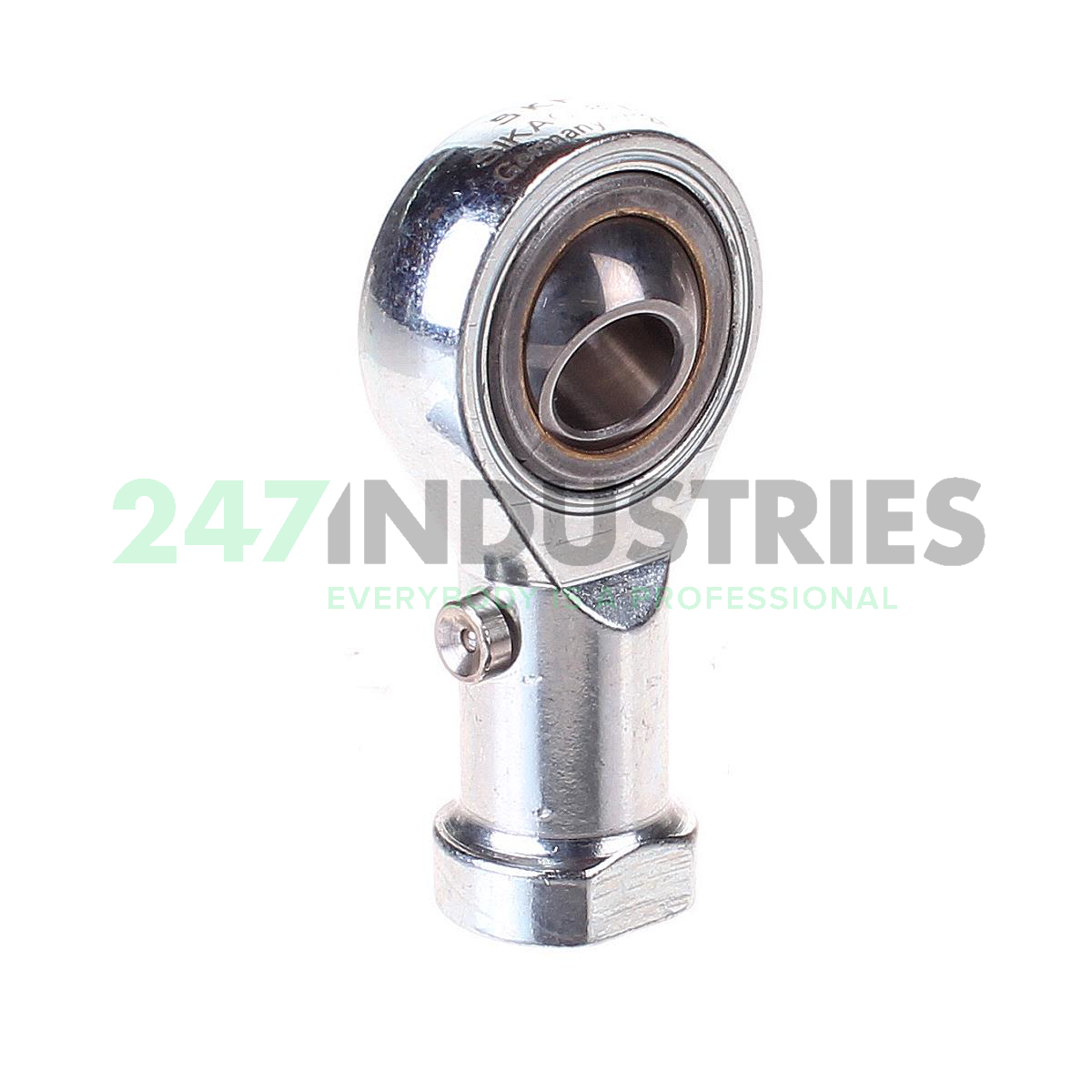

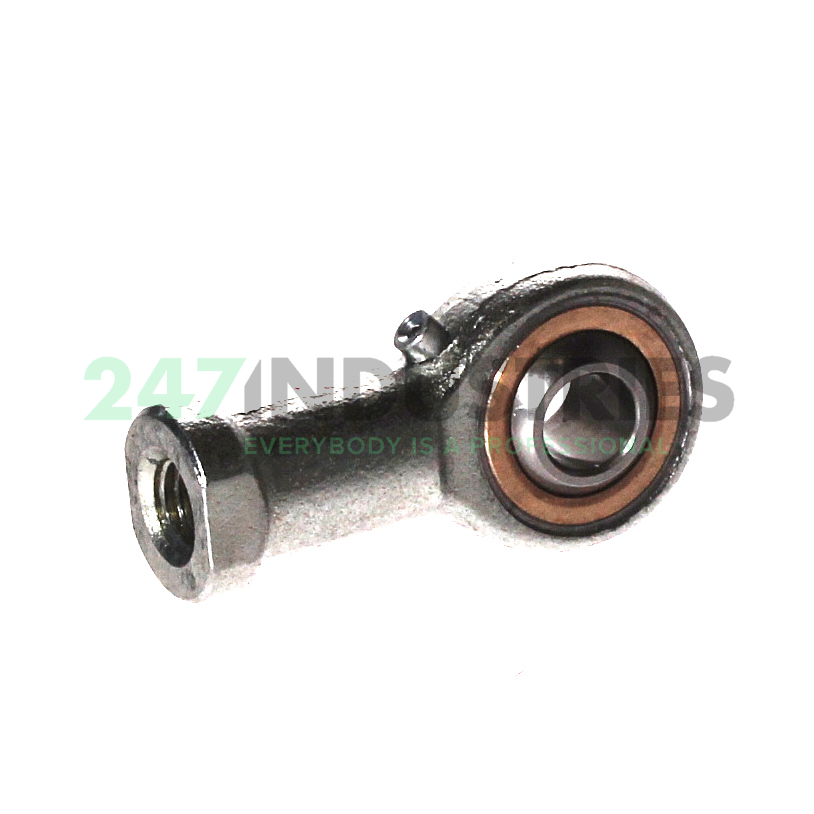

The SIBP8S LS is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The SIBP8S LS has a spherical plain bearing with a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Similar to: SIBP8S LS

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 8
  2. Outer (D) MM 25
  3. Width (B) MM 12
  4. Inner (d) Inch 0.315
  5. Outer (D) Inch 0.9843
  6. Width (B) Inch 0.4724

Suffix description

  1. S Heavy Duty Application

Technical details

  1. Availability 9 pcs
  2. Brand LS
  3. Item number SIBP8S LS
  4. Also known as GIKFR8PB
    PHS8
    SIKAC8M
  5. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.0495

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Bronze
