SIKAC20M SKF

Rod end

Stock
60 pcs in stock and ready for shipment
Brand SKF
Article number SIKAC20M SKF
Inside diameter 20mm
Outside diameter 50mm
Width 25mm
Product description

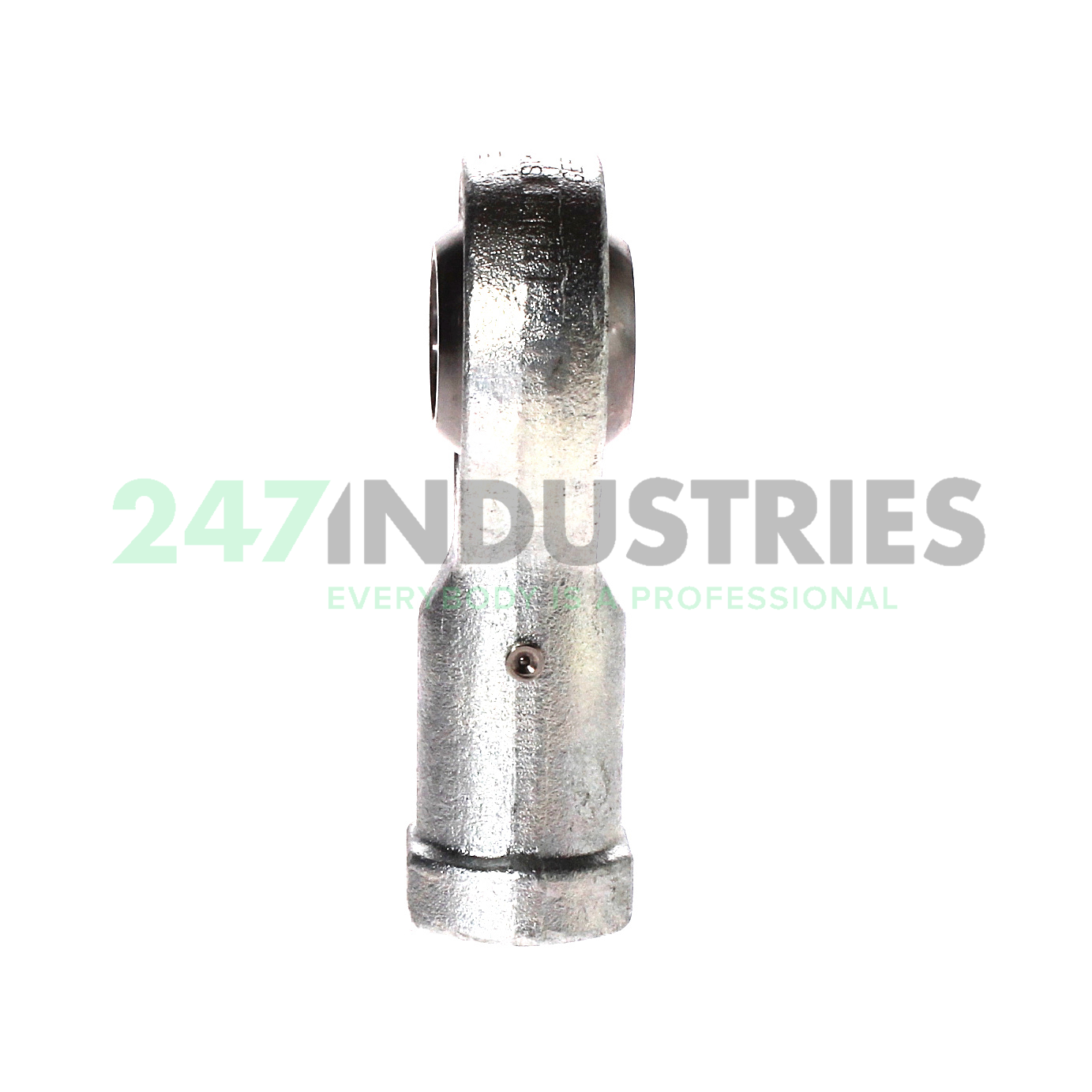

The SIKAC20M SKF is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The SIKAC20M SKF has a spherical plain bearing with a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Similar to: SIKAC20M SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 50
  3. Width (B) MM 25
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 1.9685
  6. Width (B) Inch 0.9843

Suffix description

  1. M Steel/Bronze

Technical details

  1. Availability 60 pcs
  2. Brand SKF
  3. Item number SIKAC20M SKF
  4. Also known as GIKFR20PB
  5. EAN 7316577291554
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.403

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Bronze
