SIL15ES ISB

16,58 ex VAT
€ 20,06 incl. VAT
€ 20,06 incl. VAT
16,58 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

SIL15ES ISB

Rod end

Stock
5 pcs in stock and ready for shipment
Brand ISB
Article number SIL15ES ISB
Inside diameter 15mm
Outside diameter 40mm
Width 12mm
Product description

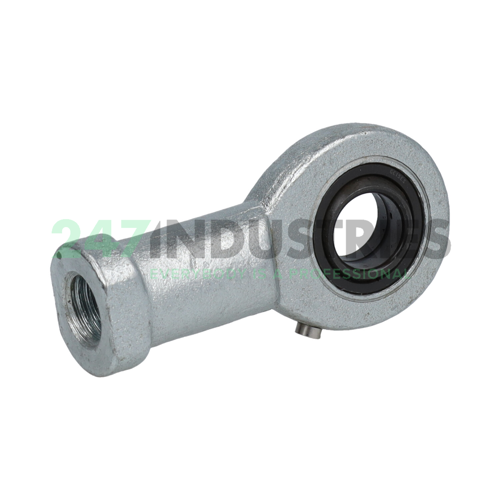

The SIL15ES ISB is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The SIL15ES ISB has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Similar to: SIL15ES ISB

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 15
  2. Outer (D) MM 40
  3. Width (B) MM 12
  4. Inner (d) Inch 0.5906
  5. Outer (D) Inch 1.5748
  6. Width (B) Inch 0.4724

Suffix description

  1. ES Steel-On-Steel & Oil Holes And Grooves

Technical details

  1. Availability 5 pcs
  2. Brand ISB
  3. Item number SIL15ES ISB
  4. Also known as SIL15DO
  5. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.16

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Steel
Show all details Show less
