SL014926-A-C3 INA

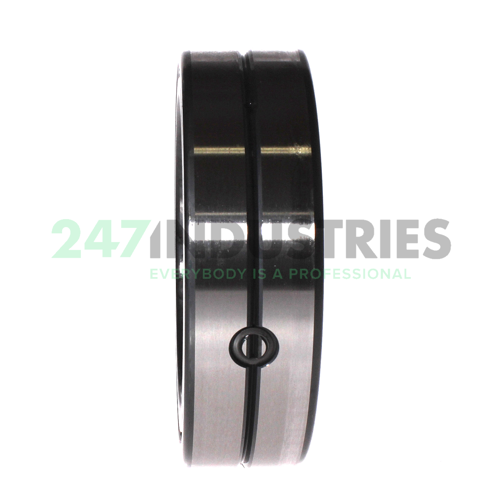

Double-row full-complement cylindrical roller bearing

Stock
12 pcs available for shipment on Tue 12 Nov
Brand INA
Article number SL014926-A-C3 INA
Inside diameter 130mm
Outside diameter 180mm
Width 50mm
Product description

The SL014926-A-C3 INA is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loads where lower rotational speeds are involved.

Read more Show less
Help with this product

Downloads and links

Similar to: SL014926-A-C3 INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 130
  2. Outer (D) MM 180
  3. Width (B) MM 50
  4. Inner (d) Inch 5.1181
  5. Outer (D) Inch 7.0866
  6. Width (B) Inch 1.9685
  7. Width (b) mm 50

Suffix description

  1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
  2. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 12 pcs on Tue 12 Nov
  2. Brand INA
  3. Item number SL014926-A-C3 INA
  4. Also known as 0001215500030
    NNC4926V/C3
  5. EAN 4012802846089
  6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 3.9

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type FC - Full Complement, No Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 510000
  2. Radial Dynamic Load Rating Cr (N) 260000
  3. Basic static load rating, radial (C 0r) "510000.0000"
  4. Limiting speed (n G) 2090
  5. Reference speed (n ϑr) 1500
  6. ECLASS number 23-05-09-01
  7. ECLASS2 number 23-05-09-01
  8. Medias description Cylindrical roller bearings SL0149, locating bearing, double row, full complement cylindrical roller set, dimension series 49
