SL04150-D INA

Double-row full-complement cylindrical roller bearing

Stock
2 pcs in stock and ready for shipment
Brand INA
Article number SL04150-D INA
Inside diameter 150mm
Outside diameter 210mm
Width 80mm
Product description

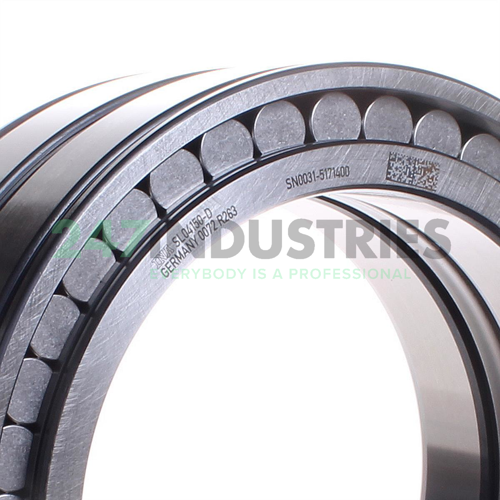

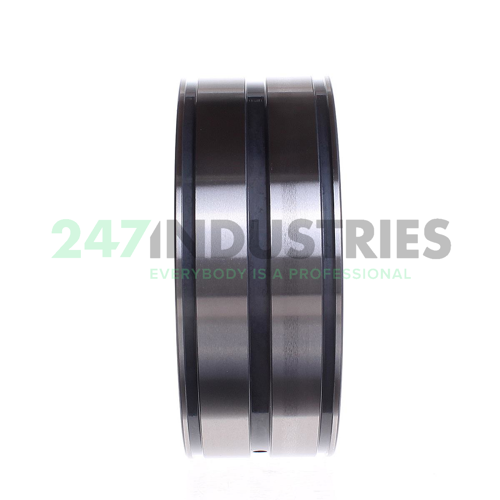

The SL04150-D INA is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loads where lower rotational speeds are involved.

Read more Show less
Help with this product

Downloads and links

Similar to: SL04150-D INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 150
  2. Outer (D) MM 210
  3. Width (B) MM 80
  4. Inner (d) Inch 5.9055
  5. Outer (D) Inch 8.2677
  6. Width (B) Inch 3.1496
  7. Width (b) mm 80

Suffix description

  1. D Outer Ring Profile Developed Further, With An Enlarged Load Bearing Area And Optimized Edge Transitions

Technical details

  1. Availability 2 pcs
  2. Brand INA
  3. Item number SL04150-D INA
  4. Also known as 0858708700000
  5. EAN 4054364855468
  6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 8.4

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type FC - Full Complement, No Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 920000
  2. Radial Dynamic Load Rating Cr (N) 465000
  3. Basic static load rating, radial (C 0r) "920000.0000"
  4. Limiting speed for grease lubrication (n G Grease) 880
  5. ECLASS number 23-05-09-01
  6. ECLASS2 number 23-05-09-01
  7. Medias description Cylindrical roller bearing SL04..-D, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04

Downloads and links

  1. Link to manufacturer Link to manufacturer
