SL045005 INA

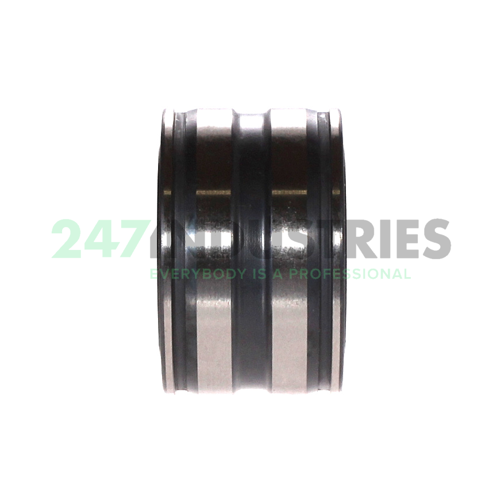

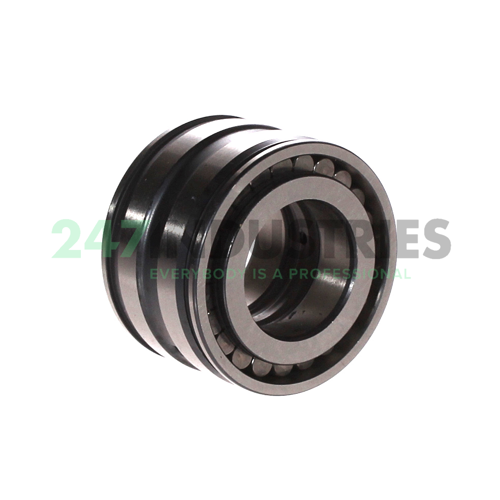

Double-row full-complement cylindrical roller bearing

Stock
14 pcs in stock and ready for shipment
Brand INA
Article number SL045005 INA
Inside diameter 25mm
Outside diameter 47mm
Width 30mm
Product description

The SL045005 INA is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loads where lower rotational speeds are involved.

Read more Show less
Help with this product

Downloads and links

Similar to: SL045005 INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25
  2. Outer (D) MM 47
  3. Width (B) MM 30
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 1.8504
  6. Width (B) Inch 1.1811
  7. Width (b) mm 30

Technical details

  1. Availability 14 pcs
  2. Brand INA
  3. Item number SL045005 INA
  4. Also known as 0017220420000
    NNF5005V
  5. EAN 4012802726749
  6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 0.224

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type FC - Full Complement, No Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 60000
  2. Radial Dynamic Load Rating Cr (N) 46000
  3. Basic static load rating, radial (C 0r) "60000.0000"
  4. Limiting speed for grease lubrication (n G Grease) 4700
  5. ECLASS number 23-05-09-01
  6. ECLASS2 number 23-05-09-01
  7. Medias description Cylindrical roller bearing SL04, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
