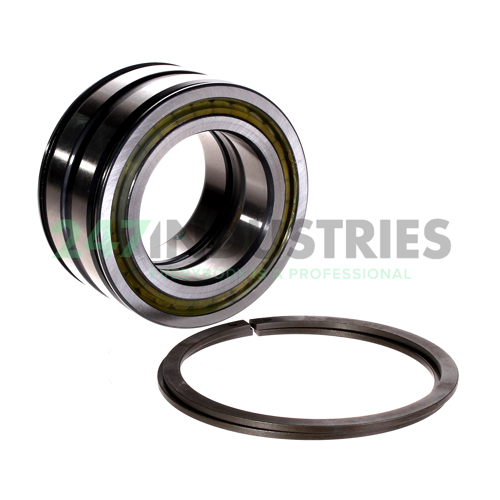

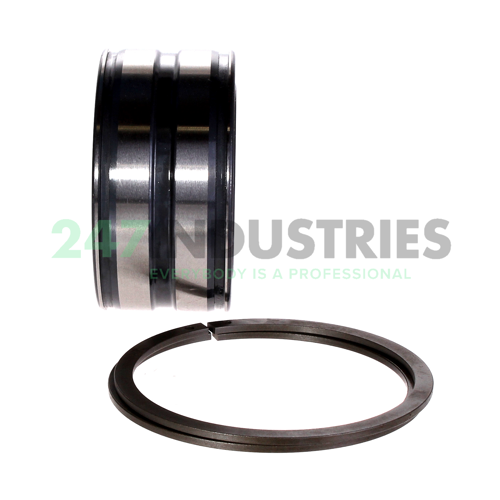

SL045011-PP-2NR-C3-L091 INA

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 90
3. Width (B) MM 46
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.811
7. Width (b) mm 46

Suffix description

1. PP Lip Seals On Both Sides Of The Bearing
2. 2NR Supplied With Two Loose-Packed Retaining Rings WRE
3. C3 Internal Clearance Larger Than Normal
4. L091 Optimized Grease For All Purposes, Temperature Range Approximately -50 ~ 120°C - Description: Isoflex® LDS 18 Special A)-Is A Dynamically Light Long-Term Grease For Plain And Rolling Bearings. It Consists Of Ester Oil, Mineral Oil And Lithium Soap. The Product Is Resistant To Ageing, Oxidation And Water, And It Protects Reliably Against Corrosion. Application: Isoflex® LDS 18 Special A Is Suitable For Plain And Rolling Bearings Operating At Low Temperatures And/Or High Speeds, For Example In Grinding Spindles, Machine Tool Spindles, Spindle Bearings, Textile Spindles, Bearings In Oe-Spinning Turbines, Bearings In Precision And Optical Equipment

Technical details

1. Availability 19 pcs
2. Brand INA
3. Item number SL045011-PP-2NR-C3-L091 INA
4. Also known as 0014099720060
   SL045011-PP-2NR-C3

5. EAN 4012802725247
6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 1.13

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2L - LS-seal at Both Sides
3. Cage Type FC - Full Complement, No Cage
4. External Modification 2R - 2 Snap Rings in O.D.
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Grease -50°C / +120°C
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 186000
2. Limiting speed for grease lubrication (n G Grease) 2340
