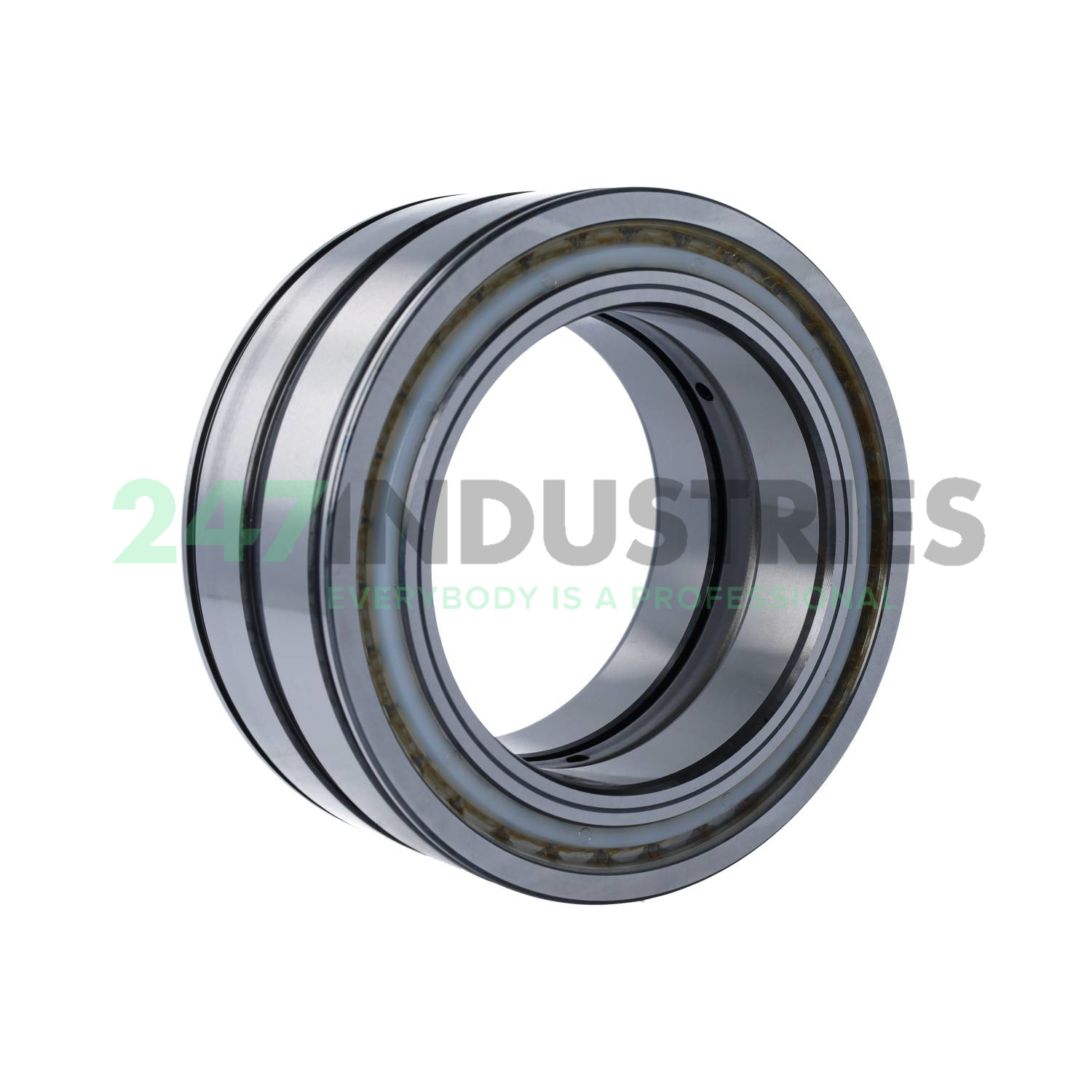

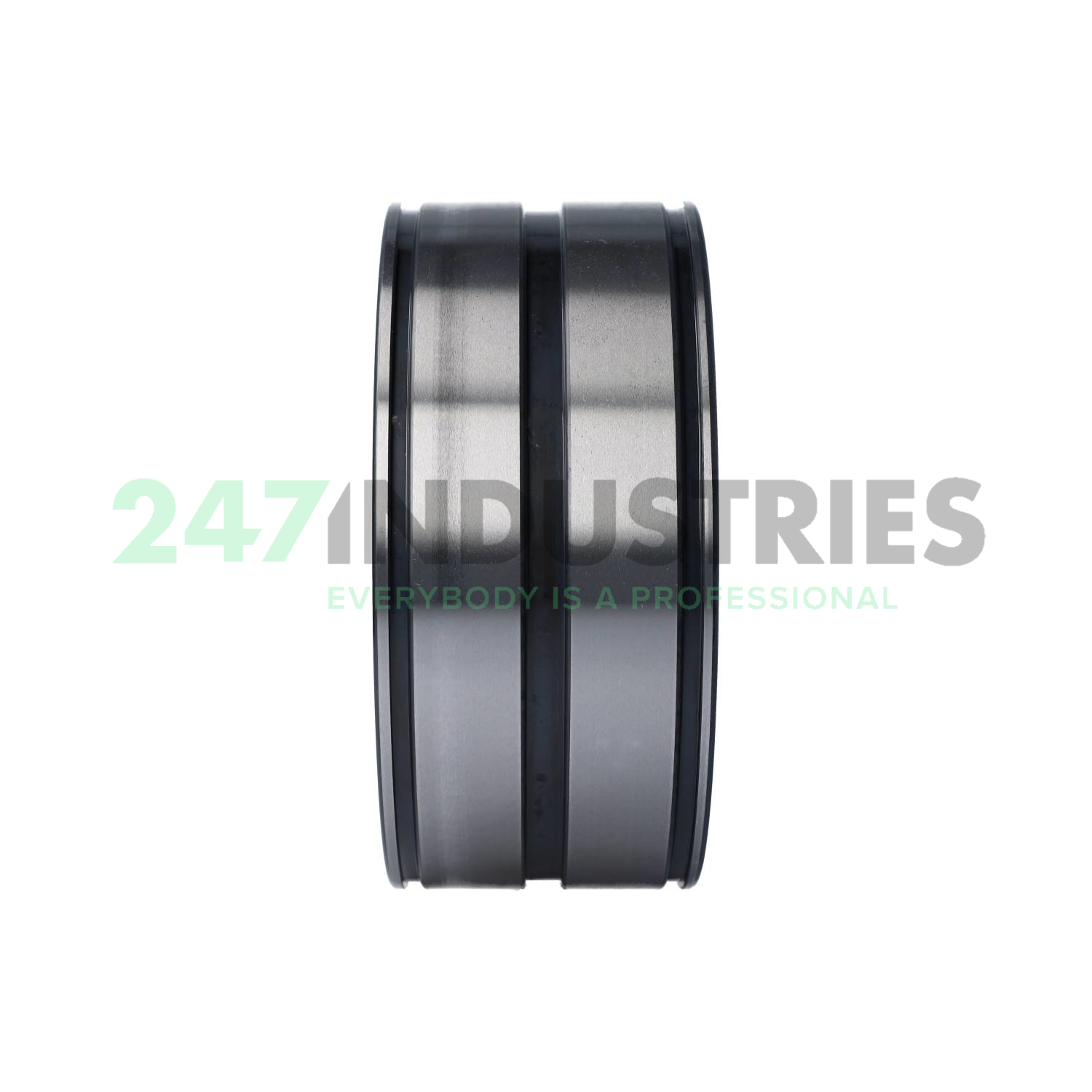

SL045024-D-PP-C3 INA

All dimensions

1. Inner (d) MM 120
2. Outer (D) MM 180
3. Width (B) MM 80
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 7.0866
6. Width (B) Inch 3.1496
7. Width (b) mm 80

Suffix description

1. D Outer Ring Profile Developed Further, With An Enlarged Load Bearing Area And Optimized Edge Transitions
2. PP Lip Seals On Both Sides Of The Bearing
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 1 pc
2. Brand INA
3. Item number SL045024-D-PP-C3 INA
4. Also known as 0862193320030

5. EAN 4054364892760
6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 6.6442

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2L - LS-seal at Both Sides
3. Cage Type FC - Full Complement, No Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 740000
2. Radial Dynamic Load Rating Cr (N) 410000
3. Limiting speed for grease lubrication (n G Grease) 1090
4. ECLASS number 23-05-09-01
5. ECLASS2 number 23-05-09-01
6. Medias description Cylindrical roller bearing SL04..-D-PP, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
