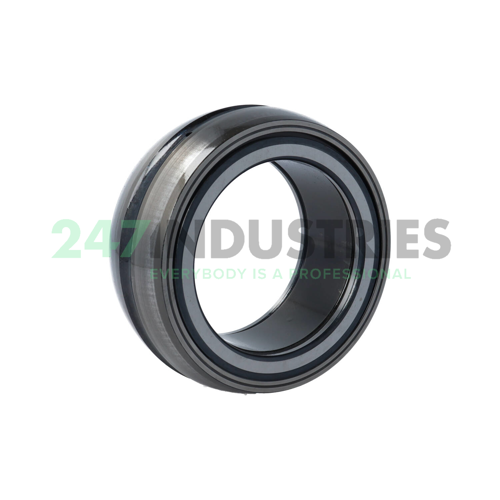

SL05016-E-C3 INA

Double-row full-complement cylindrical roller bearing

Stock
1 pc in stock and ready for shipment
Brand INA
Article number SL05016-E-C3 INA
Inside diameter 80mm
Outside diameter 120mm
Width 45mm
Product description

The SL05016-E-C3 INA is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loads where lower rotational speeds are involved.

Read more Show less
Help with this product

Downloads and links

Similar to: SL05016-E-C3 INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 80
  2. Outer (D) MM 120
  3. Width (B) MM 45
  4. Inner (d) Inch 3.1496
  5. Outer (D) Inch 4.7244
  6. Width (B) Inch 1.7717

Suffix description

  1. E Increased Load Capacity
  2. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 1 pc
  2. Brand INA
  3. Item number SL05016-E-C3 INA
  4. Also known as 0017091430030
  5. EAN 4047643219143
  6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 1.7

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal ZZ/2Z - Steel Seal on Two Sides
  3. Cage Type FC - Full Complement, No Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

  1. ECLASS number 23-05-09-01
  2. ECLASS2 number 23-05-09-01

Downloads and links

  1. Link to manufacturer Link to manufacturer
