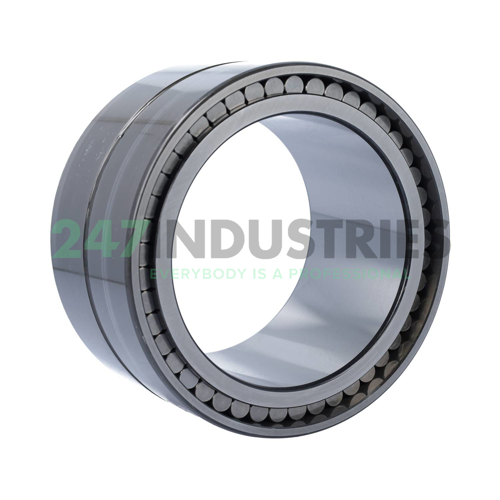

SL15924-A INA

All dimensions

1. Inner (d) MM 120
2. Outer (D) MM 165
3. Width (B) MM 87
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 6.4961
6. Width (B) Inch 3.4252

Suffix description

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

1. Availability 1 pc
2. Brand INA
3. Item number SL15924-A INA
4. Also known as 0001945570000

5. EAN 4054364122874
6. Category Cylindrical Roller Bearing Multi Row

Weight and Dimensions

1. Weight (kg) 5.55

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type FC - Full Complement, No Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. ECLASS number 23-05-09-01
2. ECLASS2 number 23-05-09-01
