SL182217-A INA

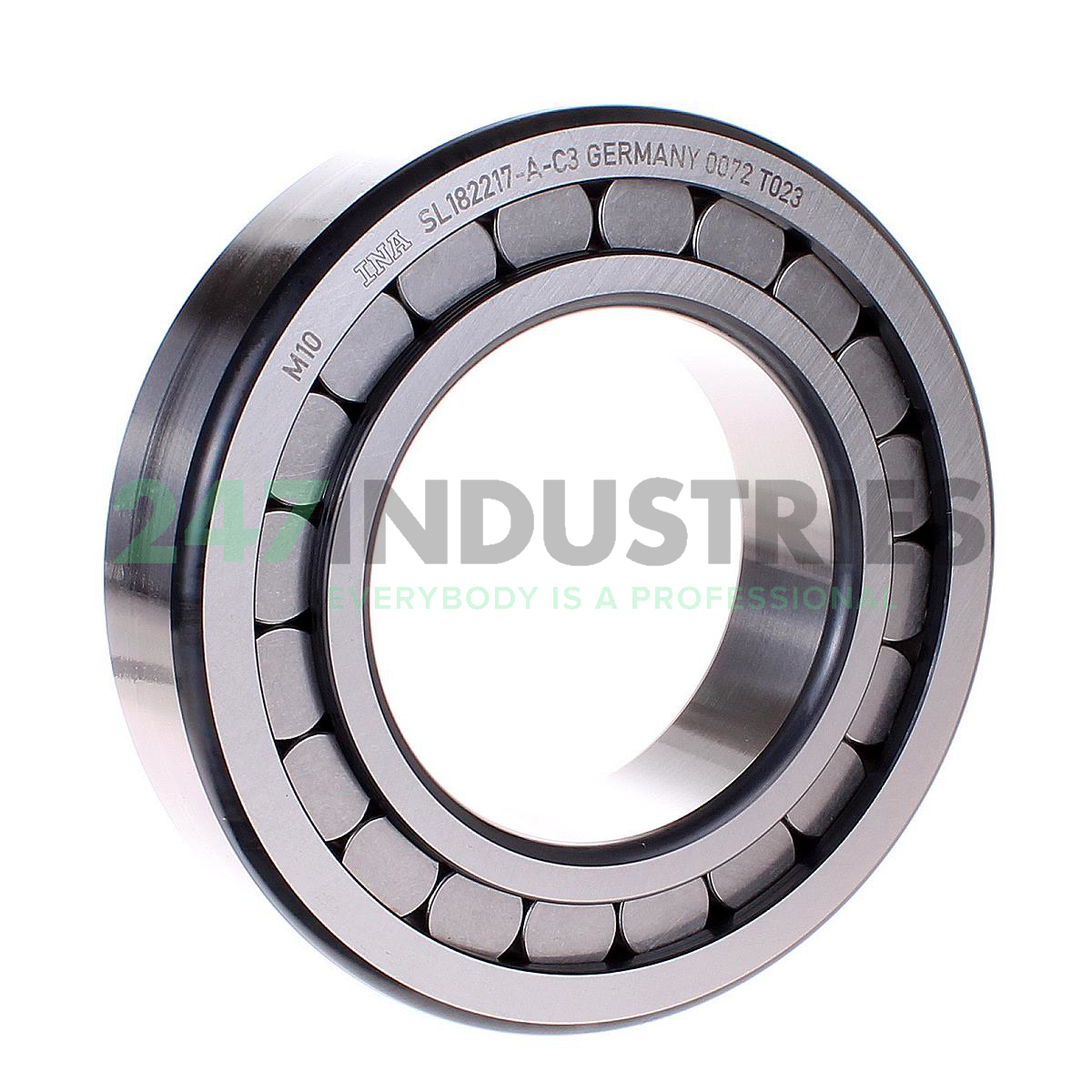

Single-row full-complement cylindrical roller bearing

Stock
8 pcs in stock and ready for shipment
Brand INA
Article number SL182217-A INA
Inside diameter 85mm
Outside diameter 150mm
Width 36mm
Product description

The SL182217-A INA is a single-row, full-complement cylinder bearing. This bearing type has a solid outer and inner ring and a high number of cylindrical rollers. These rollers are guided between the ribs of the rings. Since there is no cage, the maximum number of rolls can be used. As a result, these bearings can support very high radial loads. However, the maximum speed is lower than the speed of cylindrical roller bearings with cages. Single-row full-complement cylindrical roller bearings can also support axial forces in one direction. They are used as support bearings. Support bearings allow axial displacement of the shaft relative to the housing in one direction. The shaft is located axially in the other direction.

Read more Show less
Help with this product

Downloads and links

Similar to: SL182217-A INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 85
  2. Outer (D) MM 150
  3. Width (B) MM 36
  4. Inner (d) Inch 3.3465
  5. Outer (D) Inch 5.9055
  6. Width (B) Inch 1.4173
  7. Width (b) mm 36

Suffix description

  1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

  1. Availability 8 pcs
  2. Brand INA
  3. Item number SL182217-A INA
  4. Also known as 0000580170000
    NCF2217V
  5. EAN 4047643174206
  6. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 2.74

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type FC - Full Complement, No Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 320000
  2. Radial Dynamic Load Rating Cr (N) 255000
  3. Basic static load rating, radial (C 0r) "320000.0000"
  4. Limiting speed (n G) 2850
  5. Reference speed (n ϑr) 2000
  6. ECLASS number 23-05-09-01
  7. ECLASS2 number 23-05-09-01
  8. Medias description Cylindrical roller bearing SL1822..-A, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
