SL184916-A INA

Double-row full-complement cylindrical roller bearing

Stock
7 pcs in stock and ready for shipment
Brand INA
Article number SL184916-A INA
Inside diameter 80mm
Outside diameter 110mm
Width 30mm
Product description

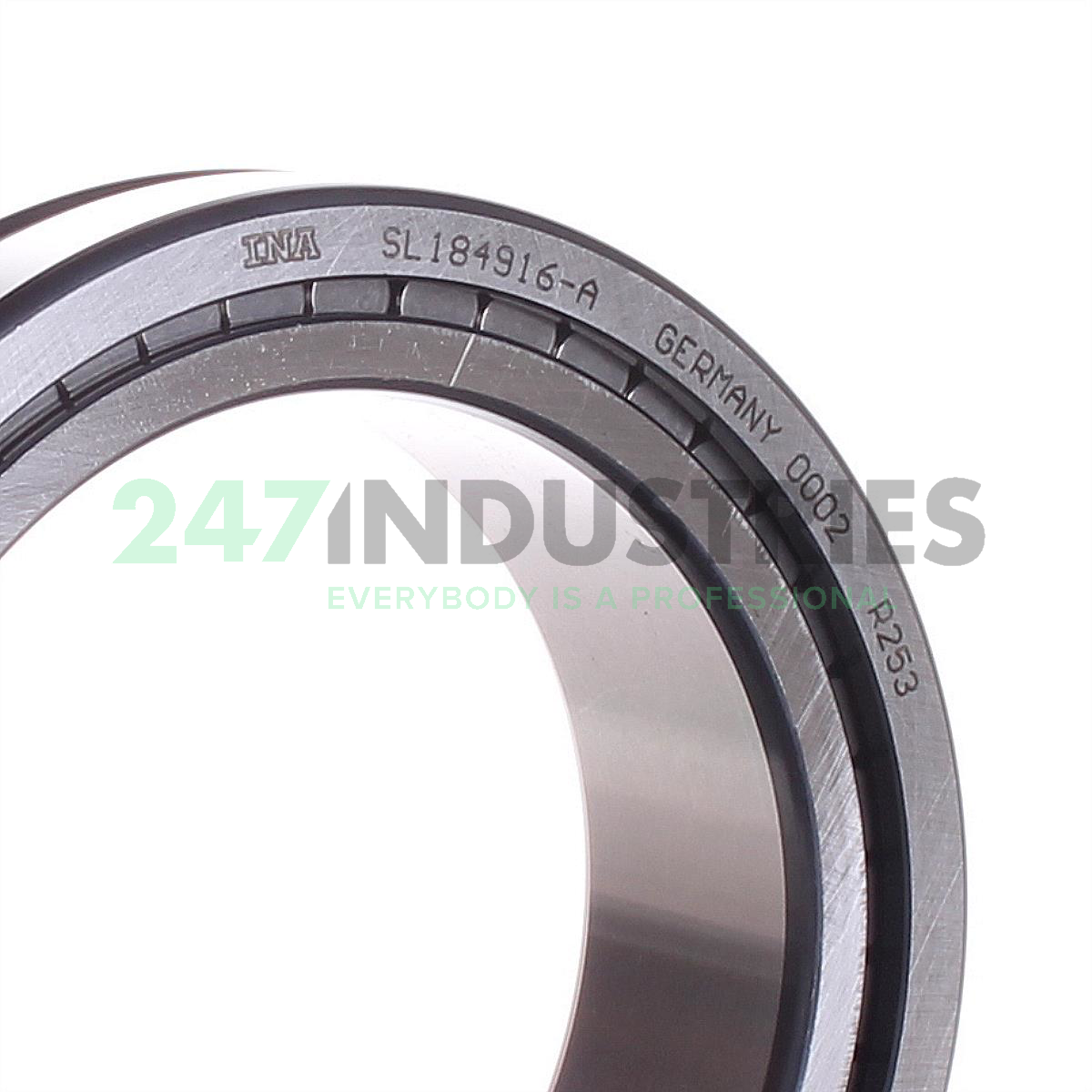

The SL184916-A INA is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loads where lower rotational speeds are involved.

Read more Show less
Help with this product

Downloads and links

Similar to: SL184916-A INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 80
  2. Outer (D) MM 110
  3. Width (B) MM 30
  4. Inner (d) Inch 3.1496
  5. Outer (D) Inch 4.3307
  6. Width (B) Inch 1.1811

Suffix description

  1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

  1. Availability 7 pcs
  2. Brand INA
  3. Item number SL184916-A INA
  4. Also known as 0001246480000
    NNCF4916V
  5. EAN 4054365459122
  6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 0.87

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type FC - Full Complement, No Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

  1. ECLASS number 23-05-09-01
  2. ECLASS2 number 23-05-09-01
