SL185022-A-C3 INA

All dimensions

1. Inner (d) MM 110
2. Outer (D) MM 170
3. Width (B) MM 80
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 6.6929
6. Width (B) Inch 3.1496
7. Width (b) mm 80

Suffix description

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 8 pcs
2. Brand INA
3. Item number SL185022-A-C3 INA
4. Also known as 0002701990030
   NNCF5022V/C3

5. EAN 4012802368956

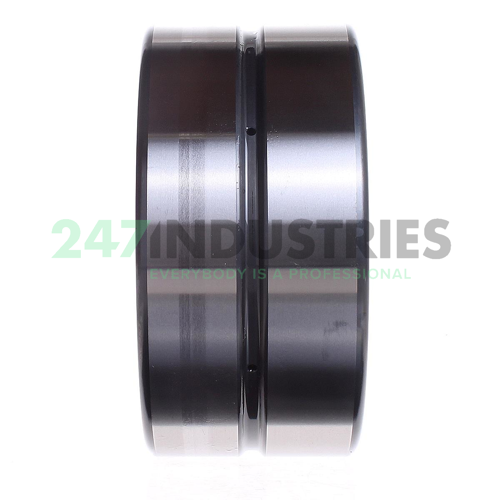

6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 6.32

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type FC - Full Complement, No Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 770000
2. Radial Dynamic Load Rating Cr (N) 485000
3. Basic static load rating, radial (C 0r) "770000.0000"
4. Limiting speed (n G) 2350
5. Reference speed (n ϑr) 1730
6. ECLASS number 23-05-09-01
7. ECLASS2 number 23-05-09-01

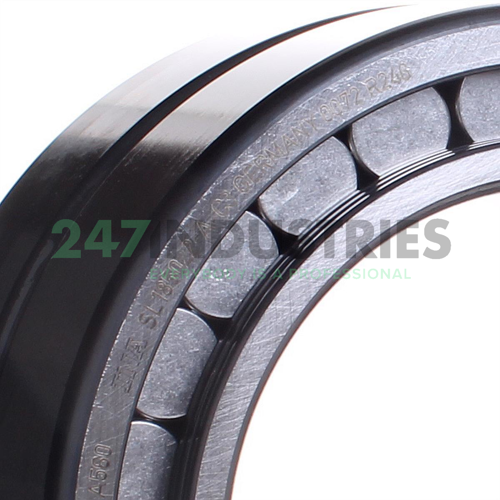

8. Medias description Cylindrical roller bearing SL1850..-A, full complement roller set, two-row, semi-locating bearing, 1 rib on outer ring, 3 ribs on inner ring, type SL18
