TME50-XL-N INA

€ 101,83 ex VAT
€ 123,21 incl. VAT
€ 123,21 incl. VAT
€ 101,83 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

TME50-XL-N INA

Housing unit

Stock
1 pc in stock and ready for shipment
Brand INA
Article number TME50-XL-N INA
Inside diameter 50mm
Outside diameter 165mm
Width 62,8mm
Product description

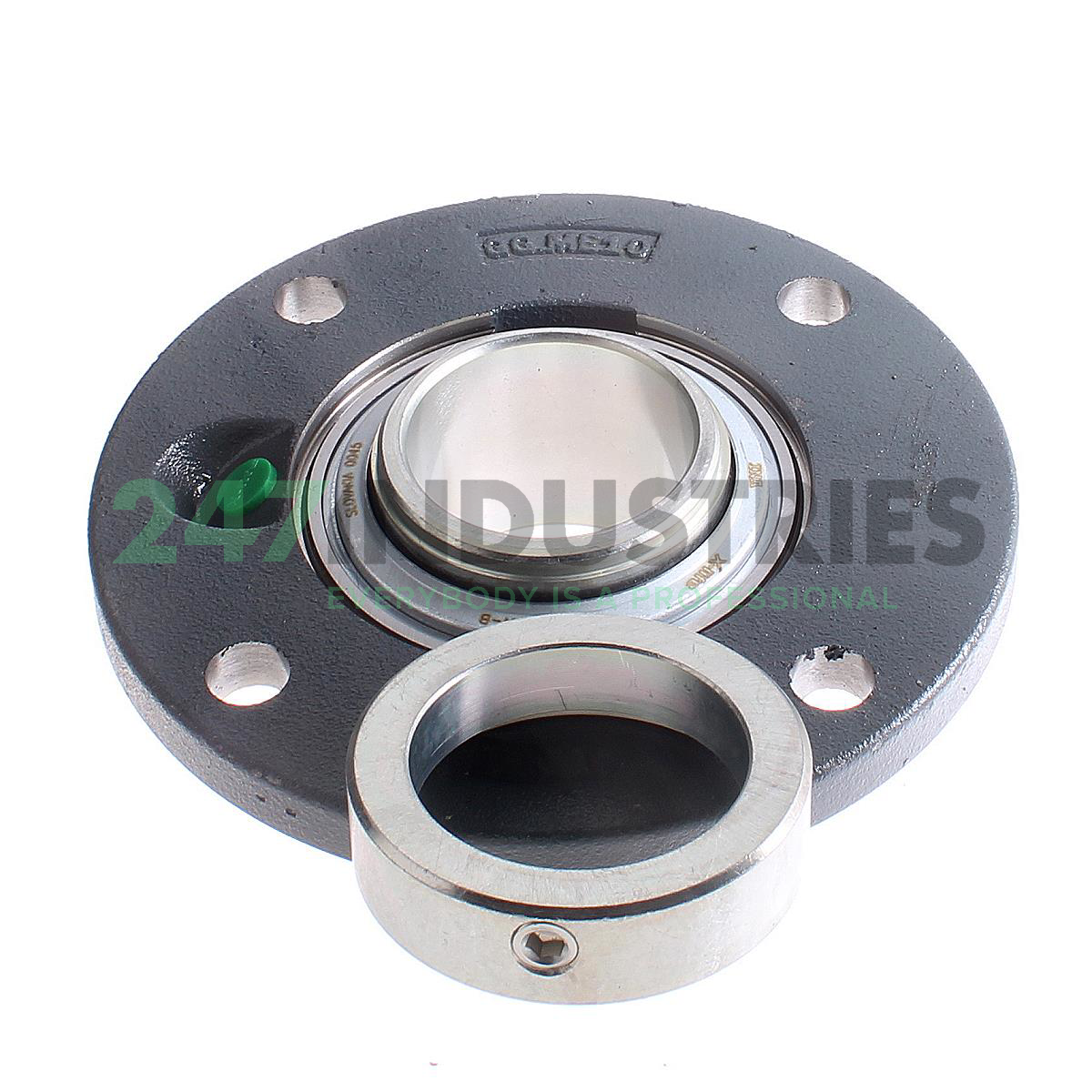

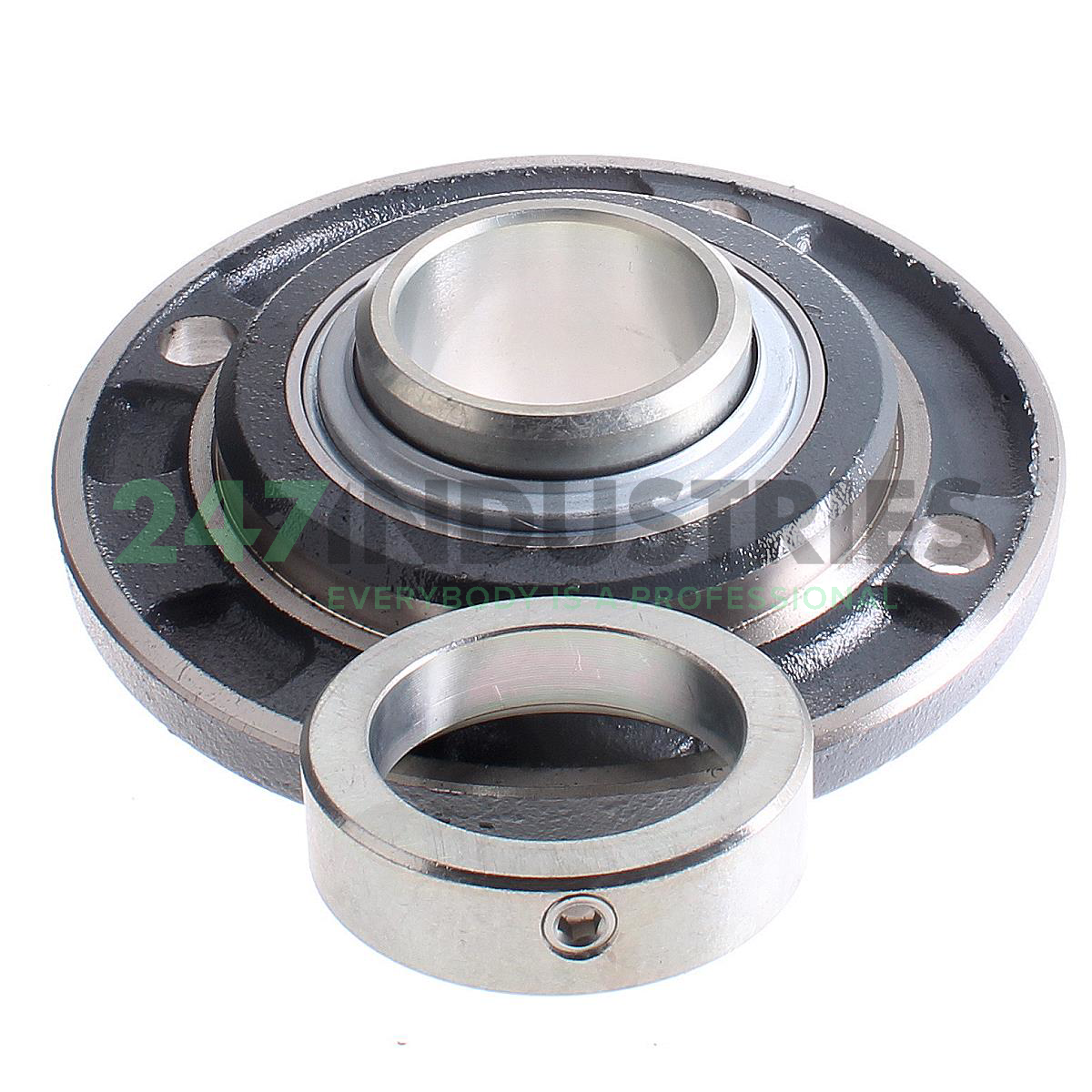

The TME50-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: TME50-XL-N INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 50
  2. Outer (D) MM 165
  3. Width (B) MM 62,8
  4. Inner (d) Inch 1.9685
  5. Outer (D) Inch 6.4961
  6. Width (B) Inch 2.4724
  7. Height flange (H) mm 165
  8. Locking collar total width (B 1) mm 62,8
  9. Total height unit (U) mm 37,1

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 1 pc
  2. Brand INA
  3. Item number TME50-XL-N INA
  4. Also known as 0008572970000
    GE50KPPB3 + ME10
    TME50-N
  5. EAN 4012802798678
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 2.59

Product Properties

  1. Seal 2T - Two T-seals
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 23200
  2. Radial Dynamic Load Rating Cr (N) 37500
  3. Basic static load rating, radial (C 0r) "23200.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Flanged housing unit TME..-XL-N

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
