TSHE25-XL-N INA

Name: TSHE25-XL-N INA
Brand: INA

€ 46,37 ex VAT

€ 56,11 incl. VAT

€ 46,37 ex VAT

	Guaranteed same day shipment on orders placed before 17.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

TSHE25-XL-N INA

Housing unit

Stock	2 pcs in stock and ready for shipment
Brand	INA
Article number	TSHE25-XL-N INA
Inside diameter	25mm
Outside diameter	70mm
Width	36mm

Product description

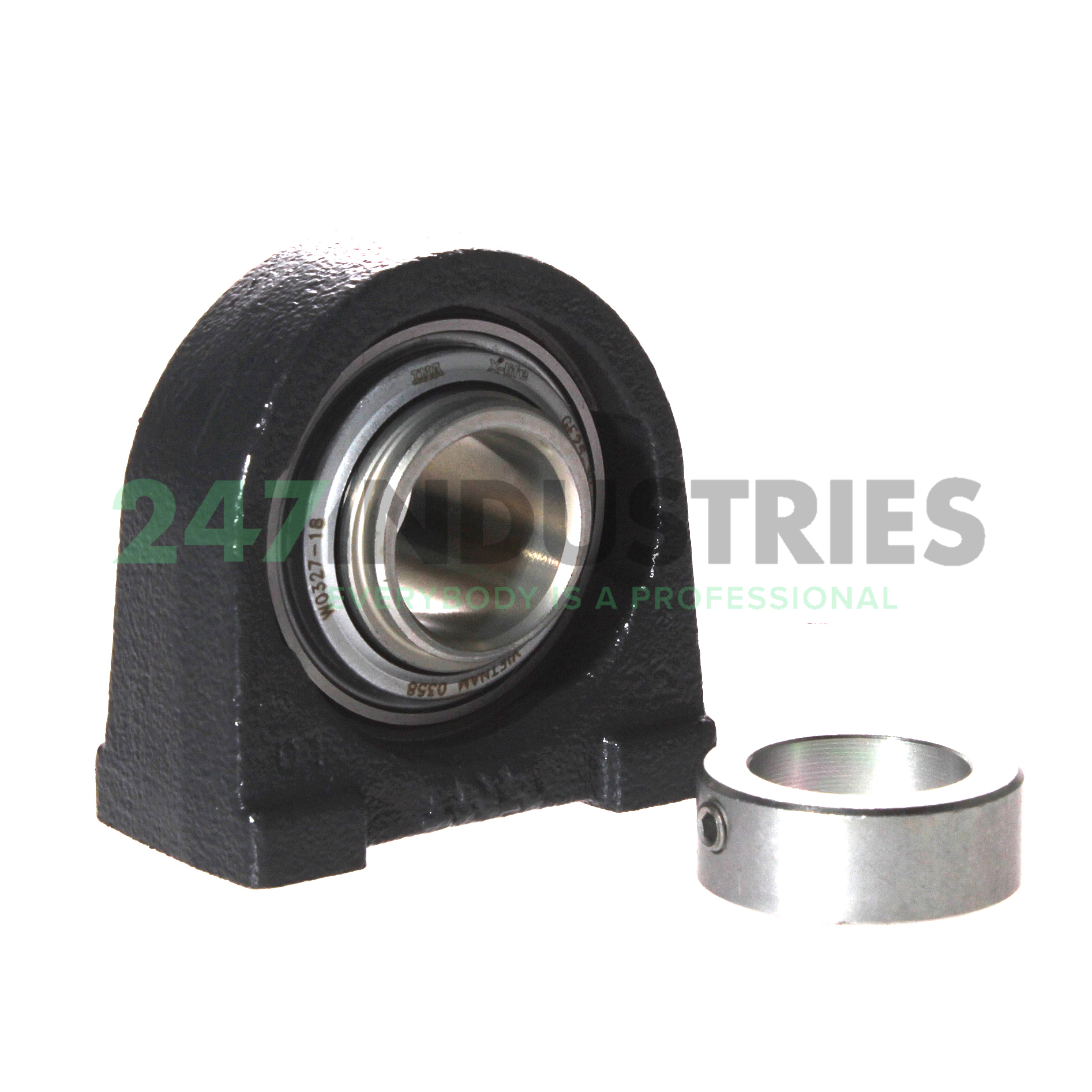

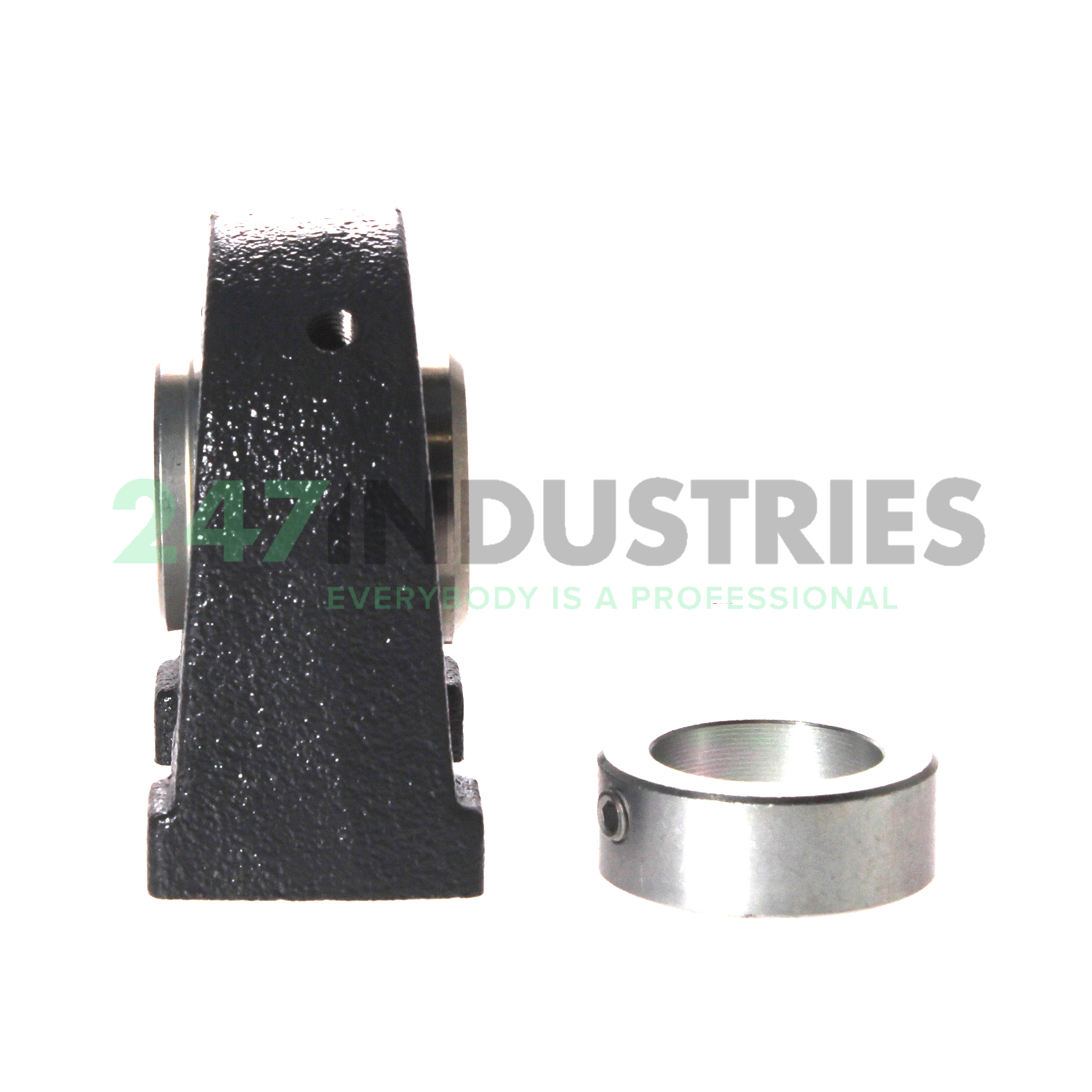

The TSHE25-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Email us at: help@247industries.com Response within 24h

Downloads and links

Similar to: TSHE25-XL-N INA

Loading similair products

Product specifications

Inside diameter 25mm
Outside diameter 70mm
Width 36mm

All dimensions

Inner (d) MM 25
Outer (D) MM 70
Width (B) MM 36
Inner (d) Inch 0.9843
Outer (D) Inch 2.7559
Width (B) Inch 1.4173
Length total (L) mm 70
Height (H 2) mm 70

Suffix description

XL X-Life
N Cast Iron Housing With Undercut Slot For End Caps

Technical details

Availability 2 pcs
Brand INA
Item number TSHE25-XL-N INA
Also known as 0008570250000
TSHE25-N
EAN 4012802798890
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 0.66

Product Properties

Seal 2T - Two T-seals
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-01
ECLASS2 number 23-05-16-01
Medias description Plummer block housing units TSHE, cast iron housing, radial insert ball bearing with eccentric locking collar, T seals
