TSHE45-XL INA

Housing unit

Stock
8 pcs in stock and ready for shipment
Brand INA
Article number TSHE45-XL INA
Inside diameter 45mm
Outside diameter 120mm
Width 48mm
Product description

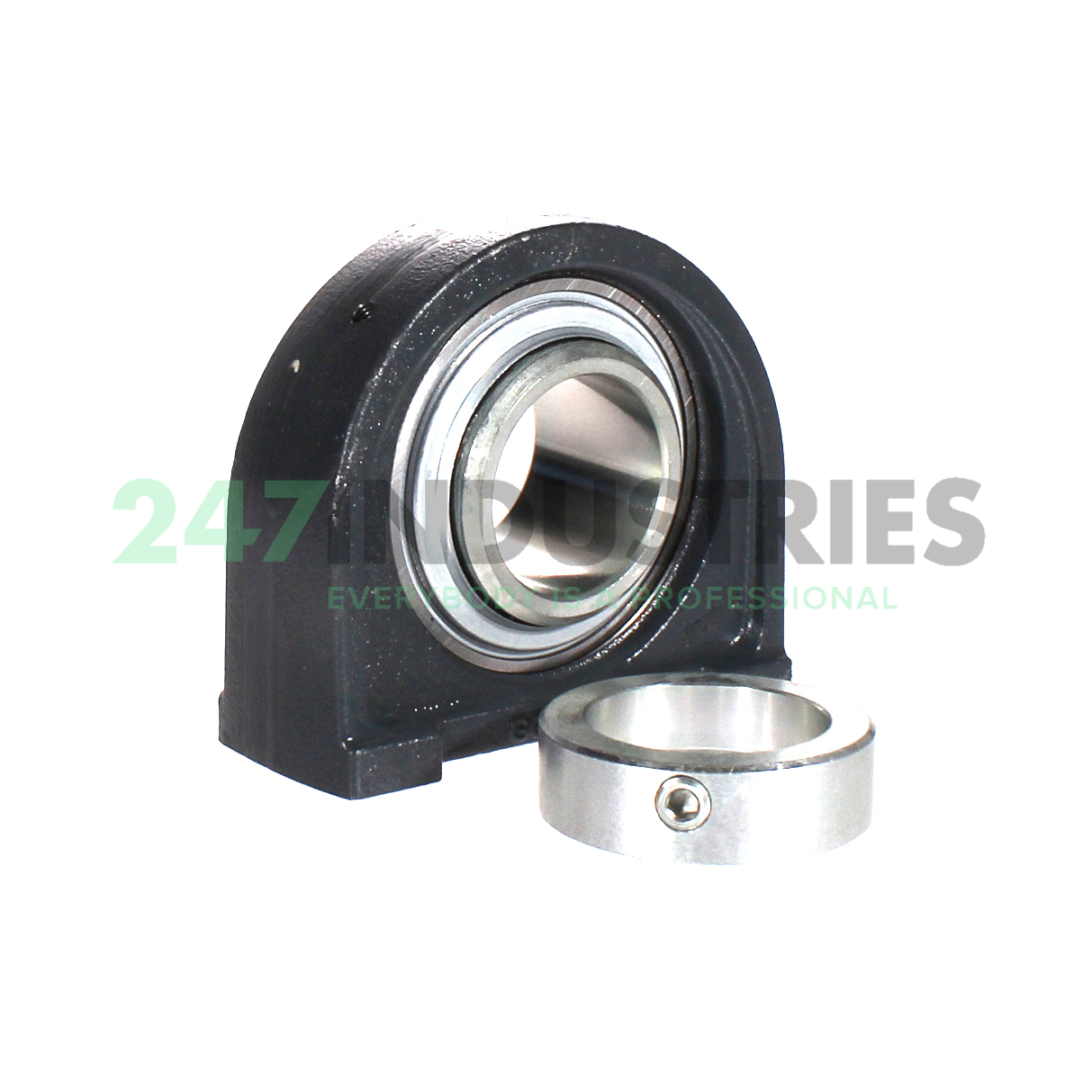

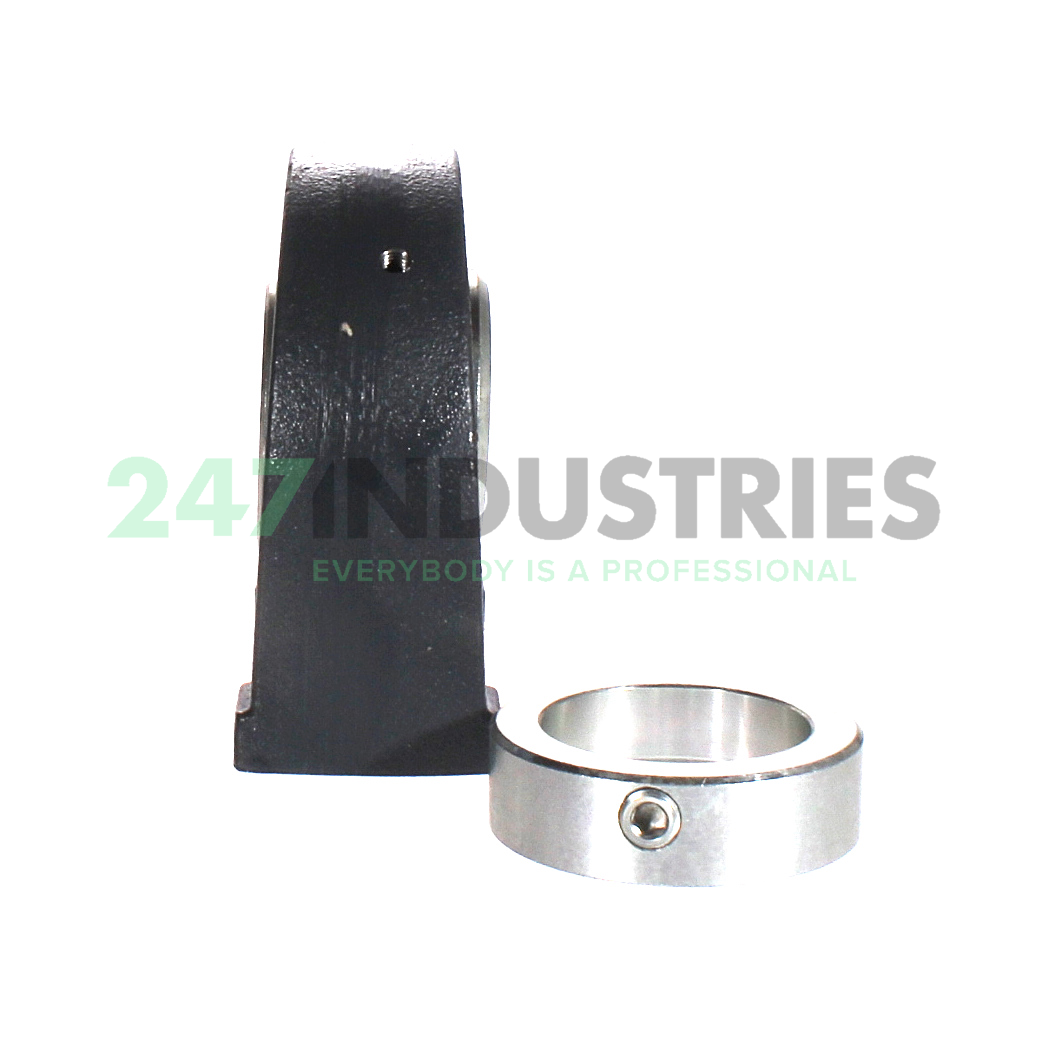

The TSHE45-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: TSHE45-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 45
  2. Outer (D) MM 120
  3. Width (B) MM 48
  4. Inner (d) Inch 1.7717
  5. Outer (D) Inch 4.7244
  6. Width (B) Inch 1.8898
  7. Length total (L) mm 120
  8. Height (H 2) mm 107

Suffix description

  1. XL X-Life

Technical details

  1. Availability 8 pcs
  2. Brand INA
  3. Item number TSHE45-XL INA
  4. Also known as 0008804260000
    TSHE45
  5. EAN 4012802794533
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 2.31

Product Properties

  1. Seal 2T - Two T-seals
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01
  3. Medias description Plummer block housing units TSHE, cast iron housing, radial insert ball bearing with eccentric locking collar, T seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
