TTUE35-XL INA

Name: TTUE35-XL INA
Brand: INA

€ 68,77 ex VAT

€ 83,21 incl. VAT

€ 68,77 ex VAT

	Guaranteed same day shipment on orders placed before 17.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

TTUE35-XL INA

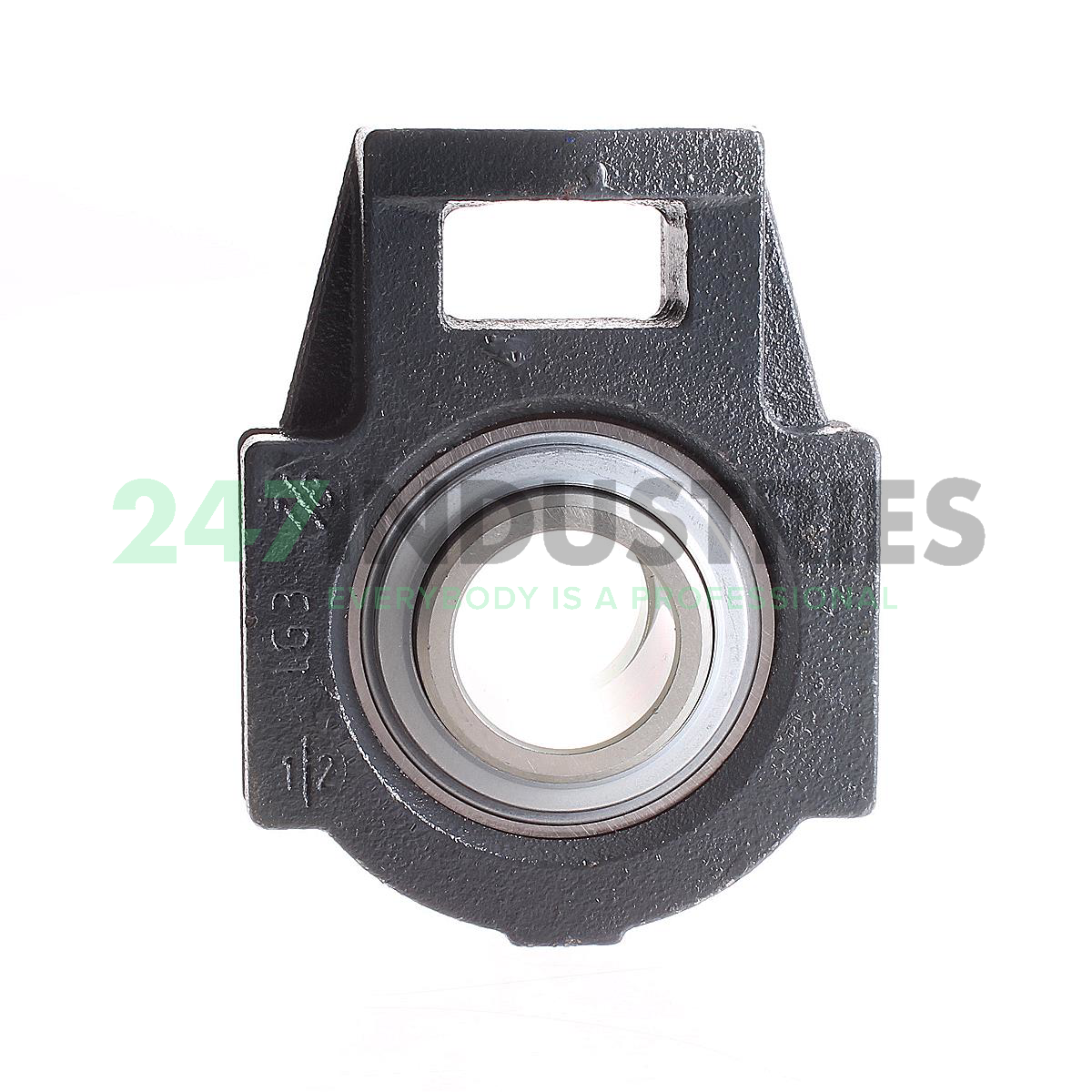

Housing unit

Stock	10 pcs in stock and ready for shipment
Brand	INA
Article number	TTUE35-XL INA
Inside diameter	35mm
Outside diameter	131,5mm
Width	102mm

Product description

The TTUE35-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Email us at: help@247industries.com Response within 24h

Downloads and links

Similar to: TTUE35-XL INA

Loading similair products

Product specifications

Inside diameter 35mm
Outside diameter 131,5mm
Width 102mm

All dimensions

Inner (d) MM 35
Outer (D) MM 131,5
Width (B) MM 102
Inner (d) Inch 1.378
Outer (D) Inch 5.1772
Width (B) Inch 4.0157
Height (H) mm 102
Length total (L) mm 131,5

Suffix description

XL X-Life

Technical details

Availability 10 pcs
Brand INA
Item number TTUE35-XL INA
Also known as 0008574400000
TTUE35
EAN 4012802798579
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 1.81

Product Properties

Seal 2T - Two T-seals
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-03
ECLASS2 number 23-05-16-03
Medias description Take-up housing units TTUE, cast iron housing, radial insert ball bearing with eccentric locking collar, T seals
