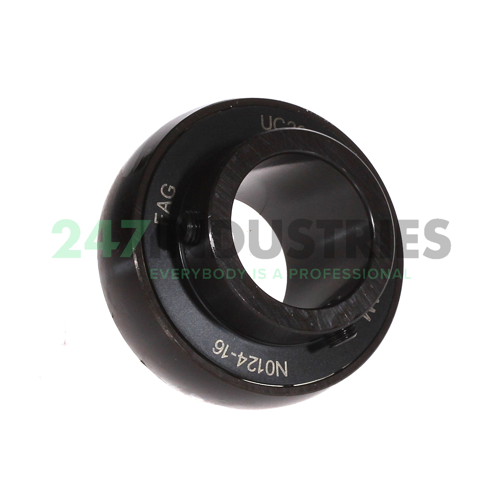

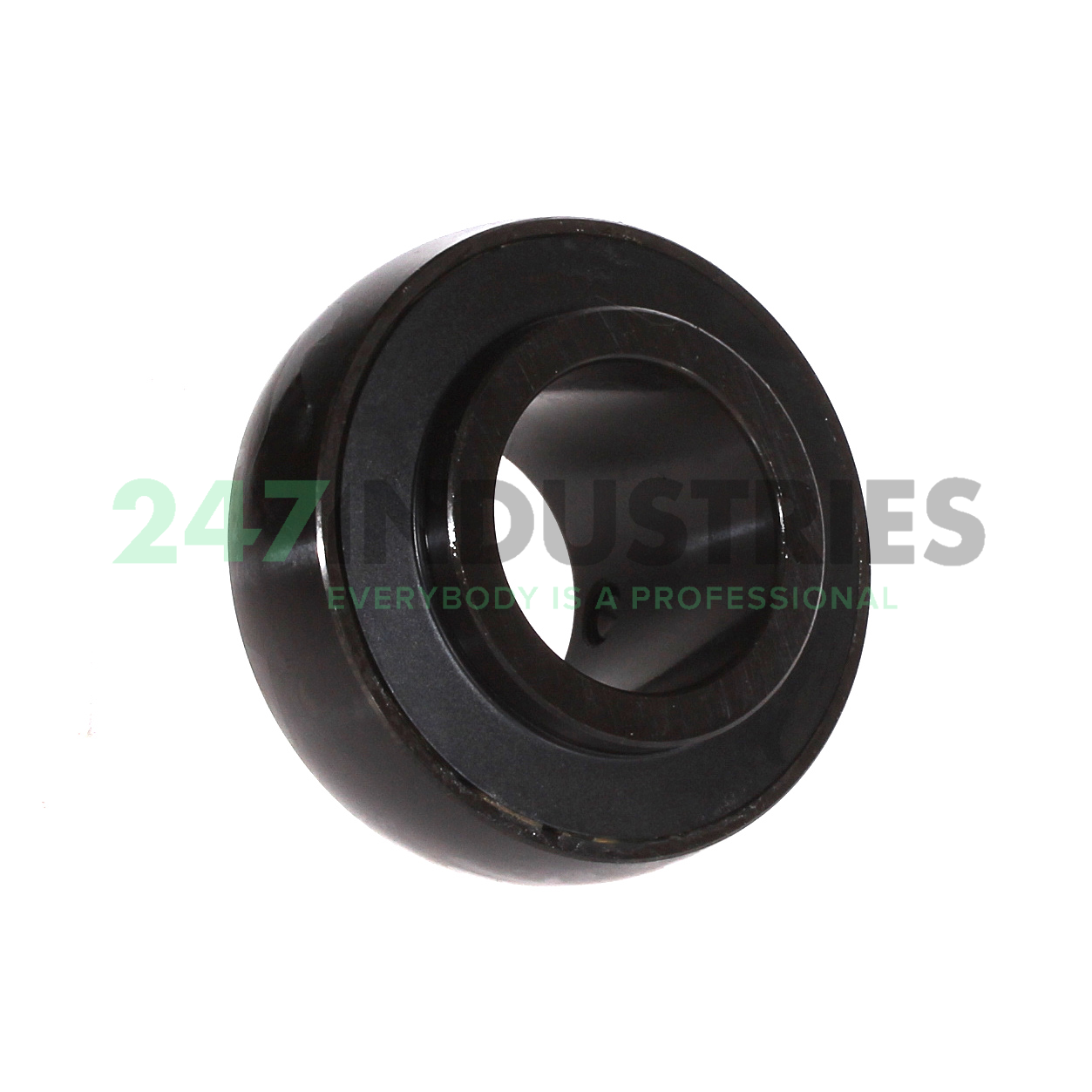

UC207 FAG

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 42,9
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.689
7. Outside diameter (D SP) mm 72
8. Width (b) mm 42,9

Technical details

1. Availability 132 pcs
2. Brand FAG
3. Item number UC207 FAG
4. Also known as 0693440350000
   56207
   GYE35KRRB
   YAR207-2F

5. EAN 4012802627596
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.45

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15300
2. Radial Dynamic Load Rating Cr (N) 27500
3. Basic static load rating, radial (C 0r) "15300.0000"
4. ECLASS number 23-05-08-02
5. ECLASS2 number 23-05-08-02
6. Medias description Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides

Downloads and links

1. Link to manufacturer Link to manufacturer
