UCF205-16-J7 FAG

Housing unit

Stock
29 pcs in stock and ready for shipment
Brand FAG
Article number UCF205-16-J7 FAG
Inside diameter 25,4mm
Outside diameter 95mm
Width 35,8mm
Product description

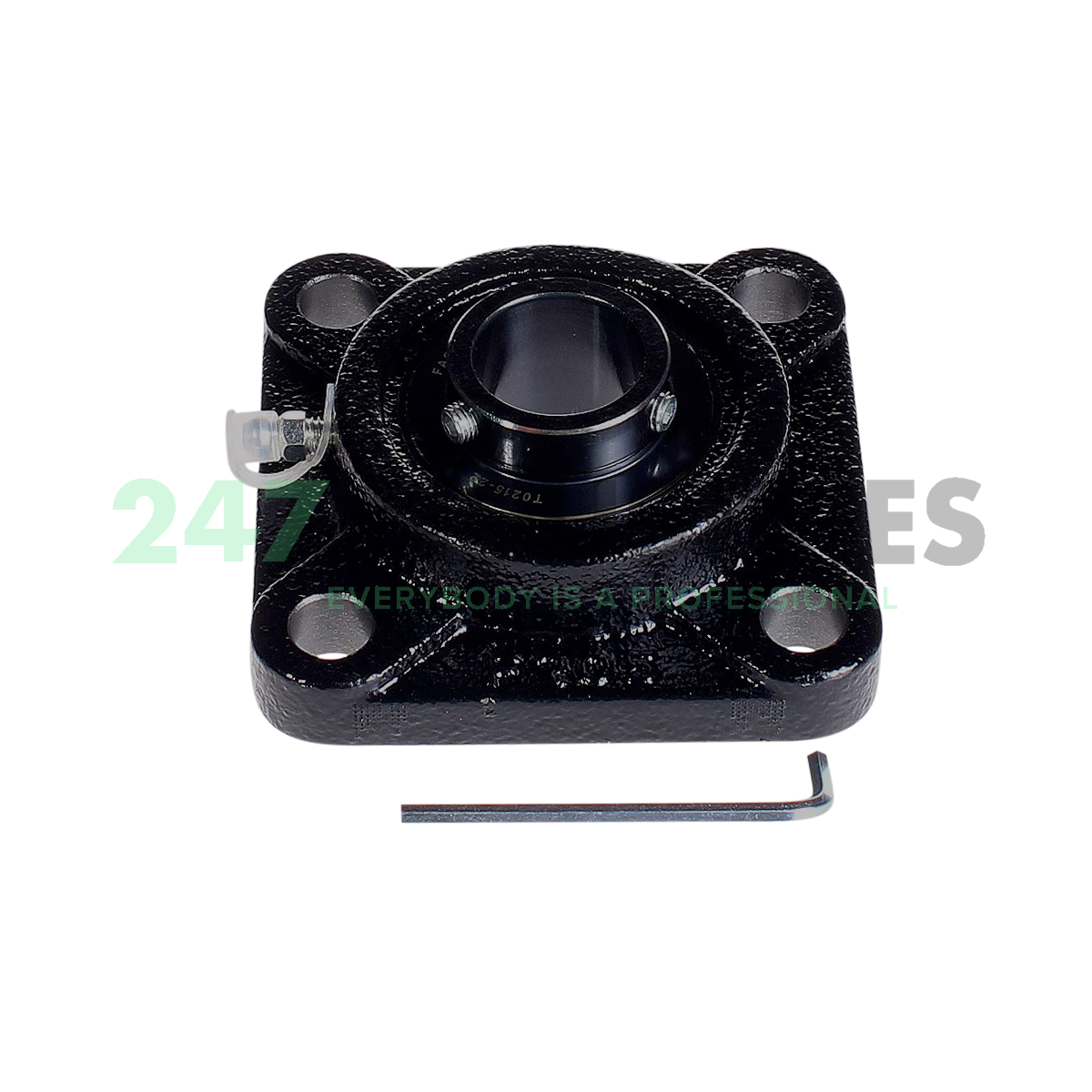

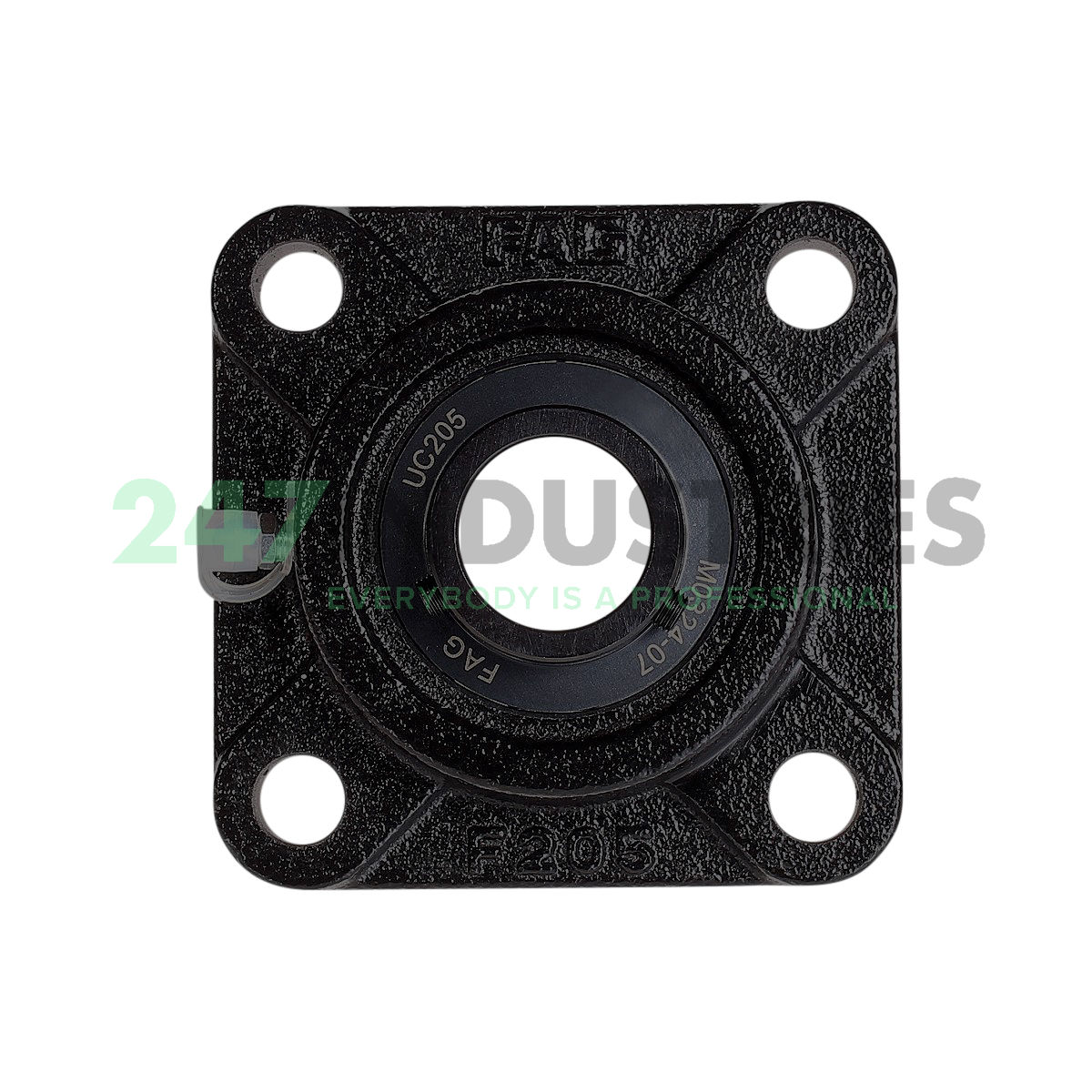

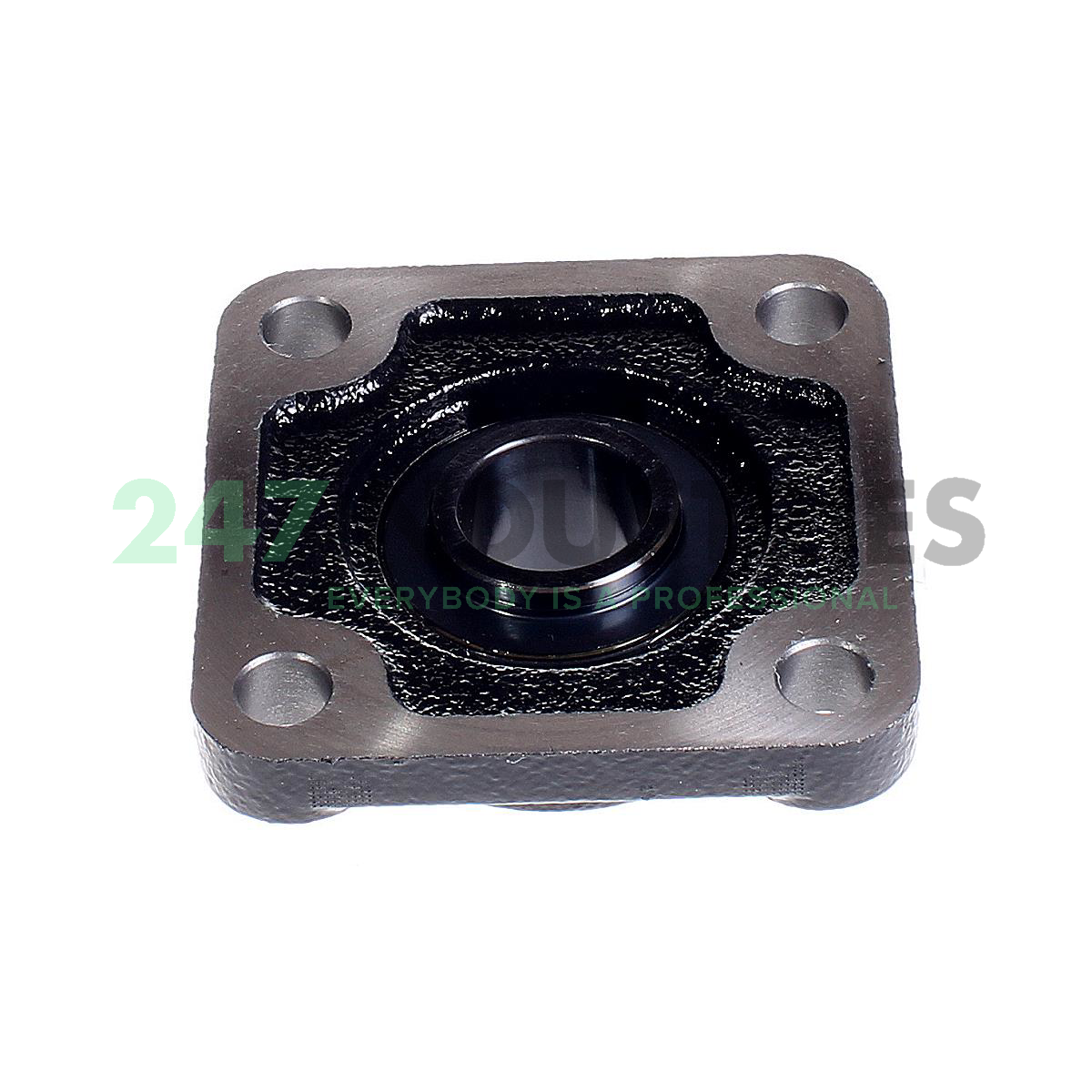

The UCF205-16-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCF205-16-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25,4
  2. Outer (D) MM 95
  3. Width (B) MM 35,8
  4. Inner (d) Inch 1
  5. Outer (D) Inch 3.7402
  6. Width (B) Inch 1.4094
  7. Flange width (L) mm 95
  8. Total height unit (U) mm 35,8

Suffix description

  1. 16 1" Bore
  2. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 29 pcs
  2. Brand FAG
  3. Item number UCF205-16-J7 FAG
  4. Also known as 0812099750000
    FG56205.100
    FYJ1.TF
    UC205-16 + F205-J7
    YAR205-100-2F + FYJ505
  5. EAN 4047643251594
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.77

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 7800
  2. Radial Dynamic Load Rating Cr (N) 14900
  3. Basic static load rating, radial (C 0r) "7800.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Flanged housing unit UCF
