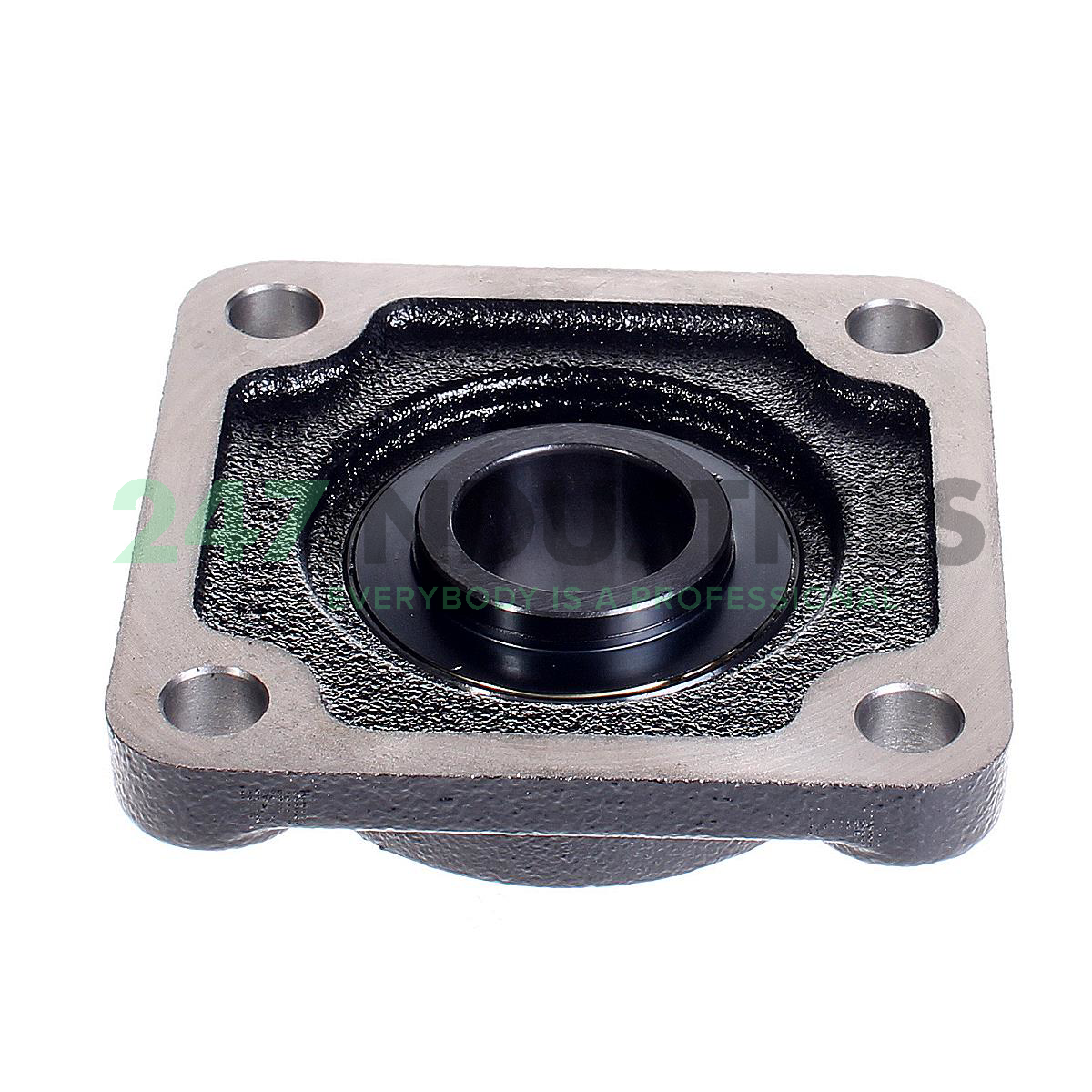

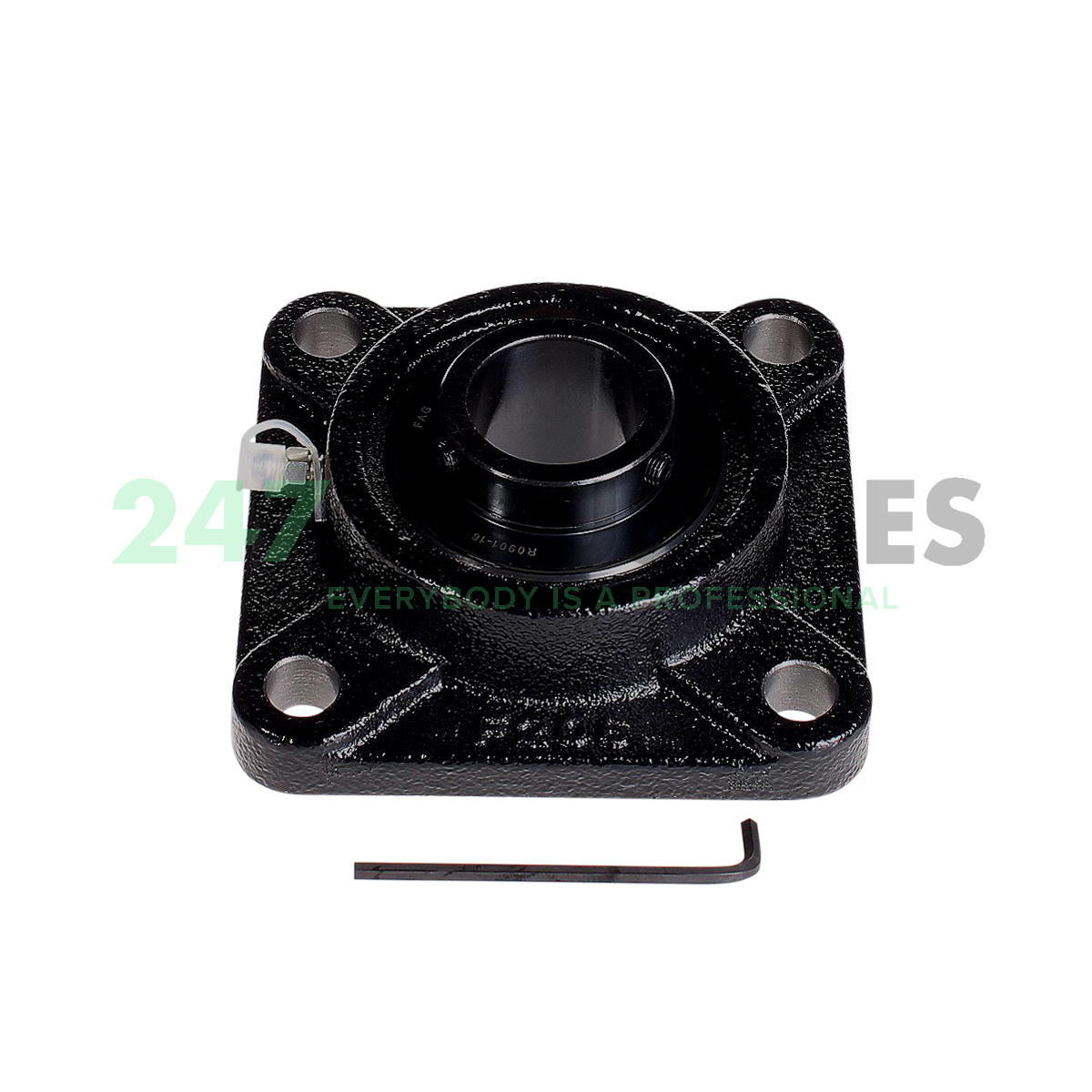

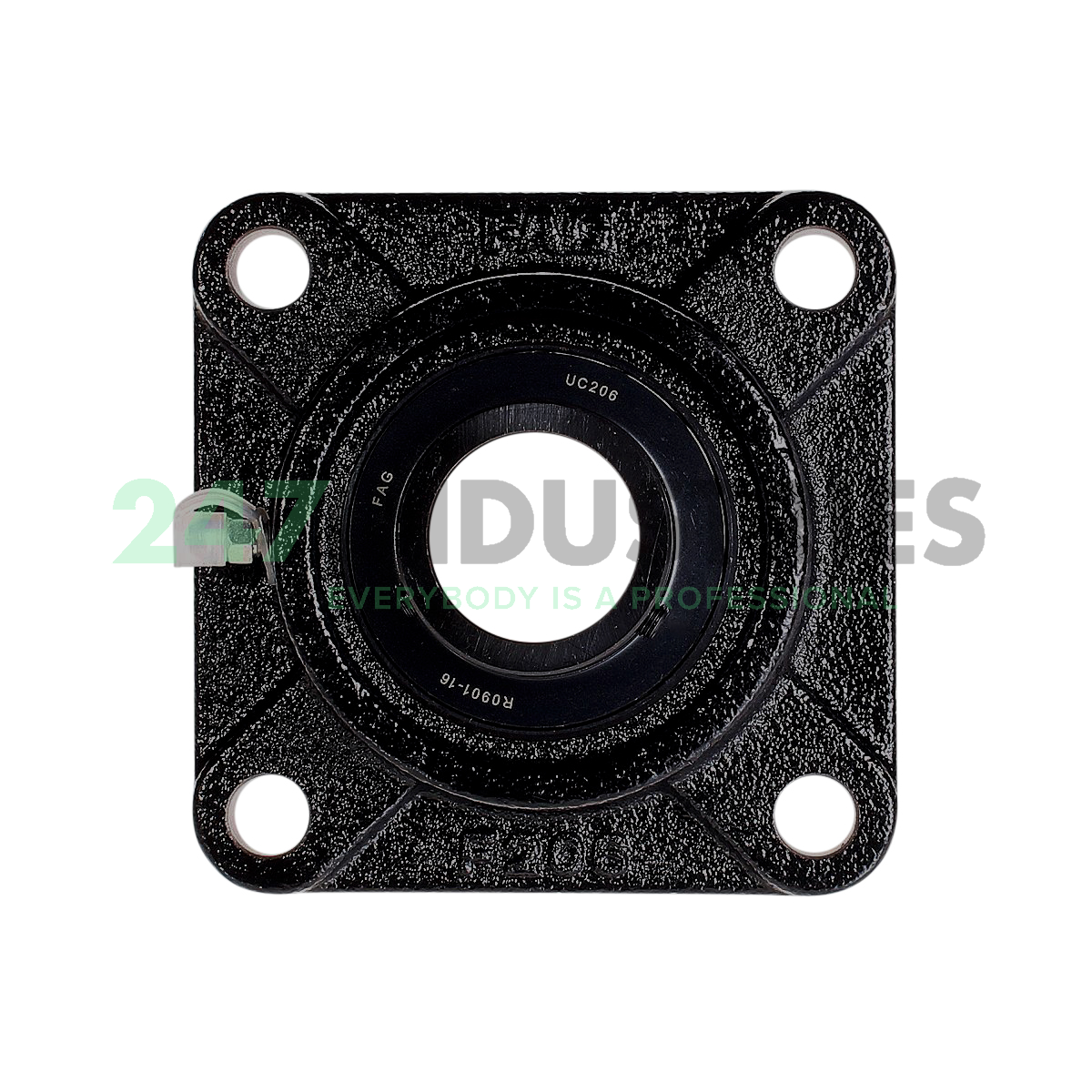

UCF206-J7 FAG

Housing unit

Stock
114 pcs in stock and ready for shipment
Brand FAG
Article number UCF206-J7 FAG
Inside diameter 30mm
Outside diameter 108mm
Width 40,2mm
Product description

The UCF206-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCF206-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 108
  3. Width (B) MM 40,2
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 4.252
  6. Width (B) Inch 1.5827
  7. Flange width (L) mm 108
  8. Total height unit (U) mm 40,2

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 114 pcs
  2. Brand FAG
  3. Item number UCF206-J7 FAG
  4. Also known as 0808214720000
    56206 + FG206S
    FG56206
    FYJ30TF
    GYE30KRRB + CJ06
    RCJY30
    UC206 + F206-J7
    YAR206-2F + FYJ506
  5. EAN 4047643247689
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.095

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 11300
  2. Radial Dynamic Load Rating Cr (N) 20700
  3. Basic static load rating, radial (C 0r) "11300.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Flanged housing unit UCF

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less
