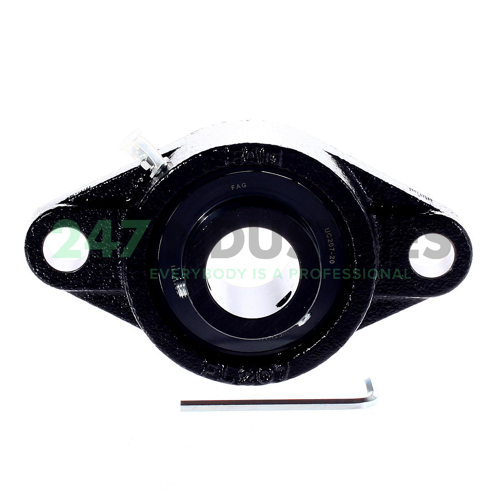

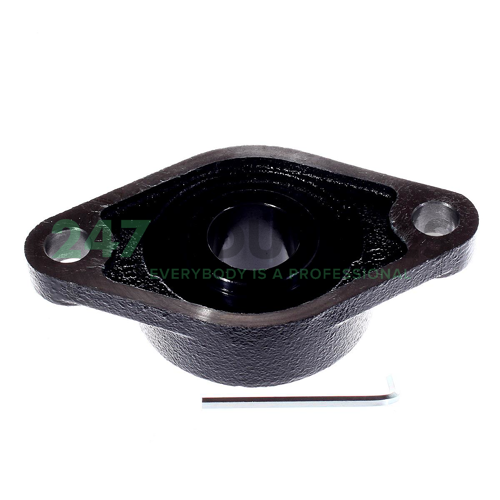

UCFL207-20-J7 FAG

Housing unit

Stock
25 pcs available
Brand FAG
Article number UCFL207-20-J7 FAG
Inside diameter 31,75mm
Outside diameter 161mm
Width 44,4mm
Product description

The UCFL207-20-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCFL207-20-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 31,75
  2. Outer (D) MM 161
  3. Width (B) MM 44,4
  4. Inner (d) Inch 1.25
  5. Outer (D) Inch 6.3386
  6. Width (B) Inch 1.748
  7. Flange width (L) mm 90
  8. Height flange (H) mm 161
  9. Total height unit (U) mm 44,4

Suffix description

  1. 20 1.1/4" Bore
  2. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 25 pcs
  2. Brand FAG
  3. Item number UCFL207-20-J7 FAG
  4. Also known as 0812151690000
    FYTBJ1.1/4ATF
    UC207-20 + FL207-J7
  5. EAN 4047643262156
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.27

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 15300
  2. Radial Dynamic Load Rating Cr (N) 27500
  3. Basic static load rating, radial (C 0r) "15300.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Flanged housing unit UCFL
