UCFL209-J7 FAG

€ 39,22 ex VAT
€ 47,46 incl. VAT
€ 47,46 incl. VAT
€ 39,22 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

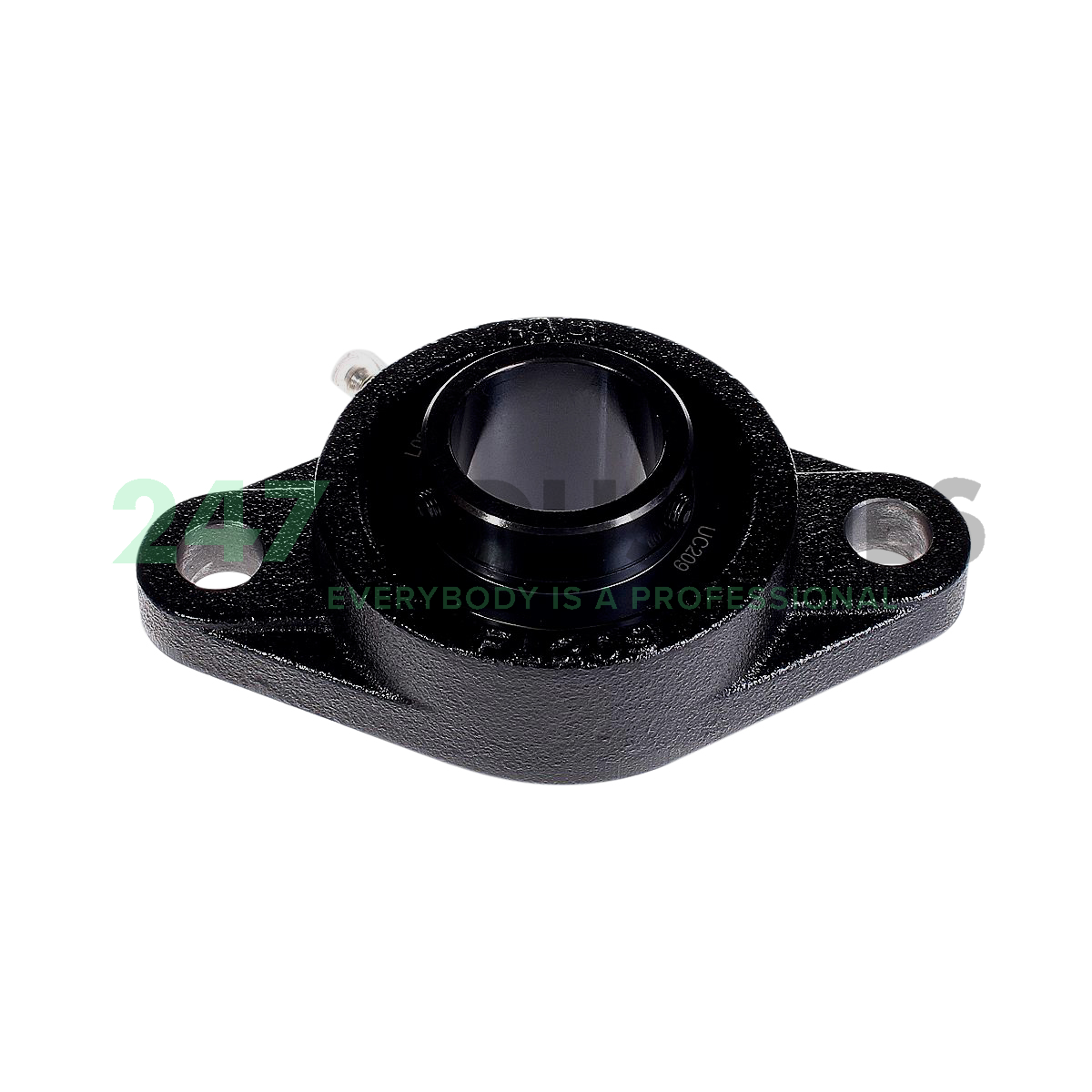

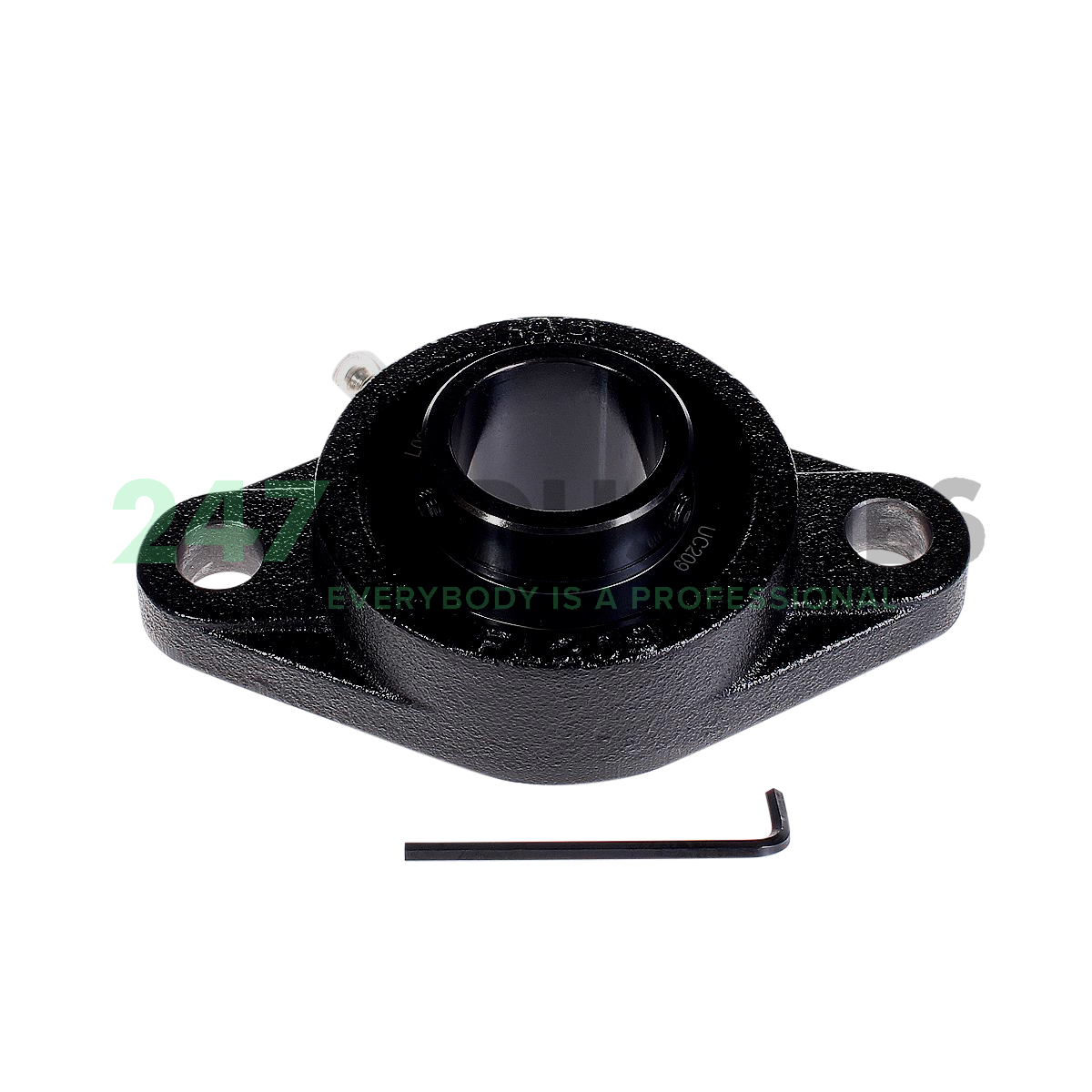

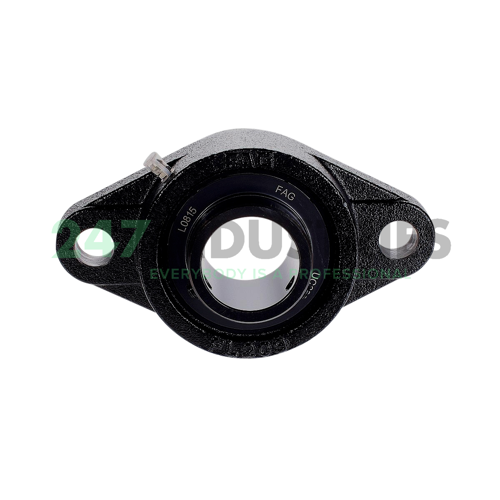

UCFL209-J7 FAG

Housing unit

Stock
7 pcs in stock and ready for shipment
Brand FAG
Article number UCFL209-J7 FAG
Inside diameter 45mm
Outside diameter 188mm
Width 52,2mm
Product description

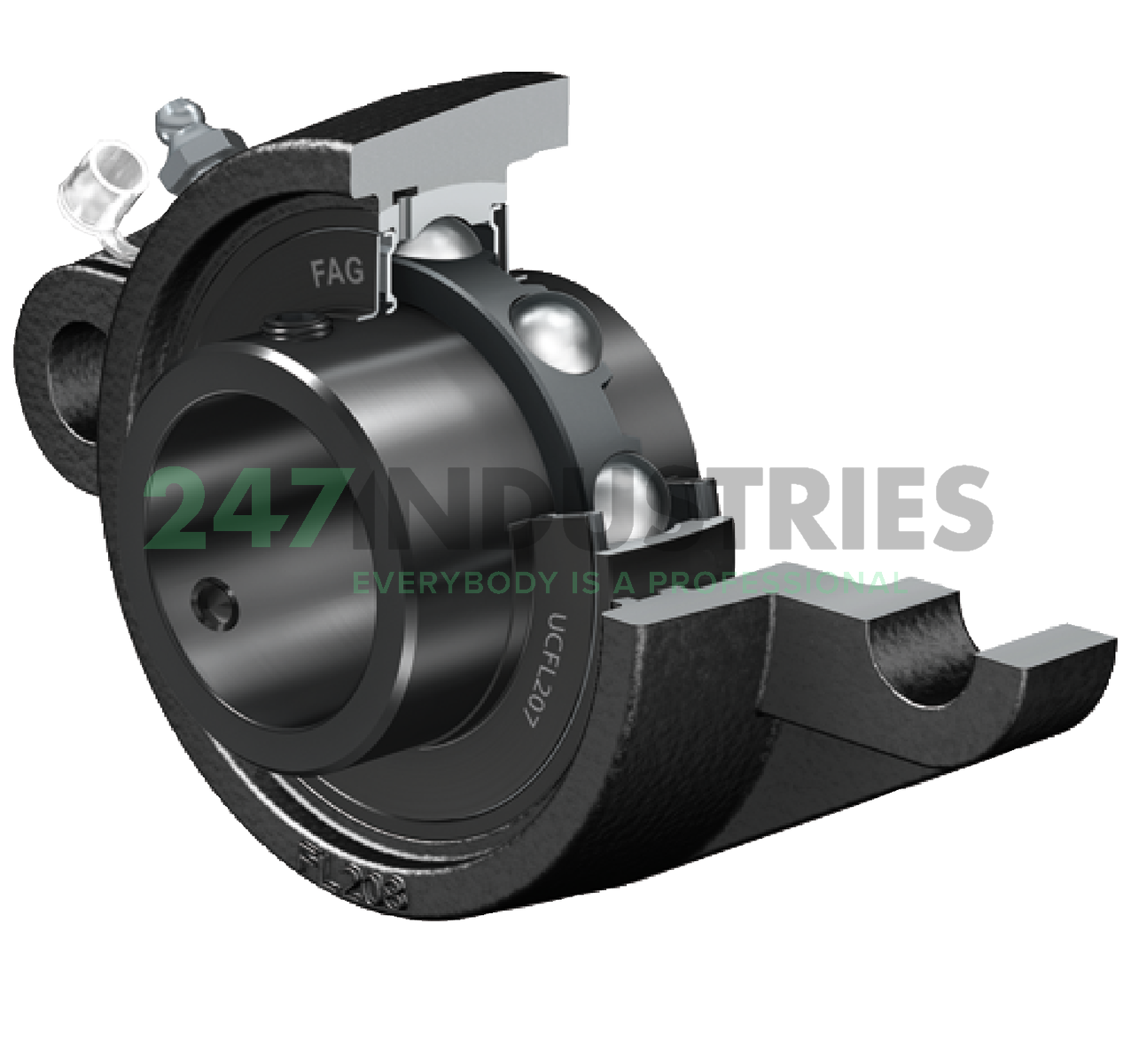

The UCFL209-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCFL209-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 45
  2. Outer (D) MM 188
  3. Width (B) MM 52,2
  4. Inner (d) Inch 1.7717
  5. Outer (D) Inch 7.4016
  6. Width (B) Inch 2.0551
  7. Flange width (L) mm 108
  8. Height flange (H) mm 188
  9. Total height unit (U) mm 52,2

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 7 pcs
  2. Brand FAG
  3. Item number UCFL209-J7 FAG
  4. Also known as 0811476510000
    FYTBJ45TF
    RCJTY45-JIS
    UC209-J7 + FL209-J7
  5. EAN 4047643243827
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.96

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 20400
  2. Radial Dynamic Load Rating Cr (N) 34500
  3. Basic static load rating, radial (C 0r) "20400.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Flanged housing unit UCFL
