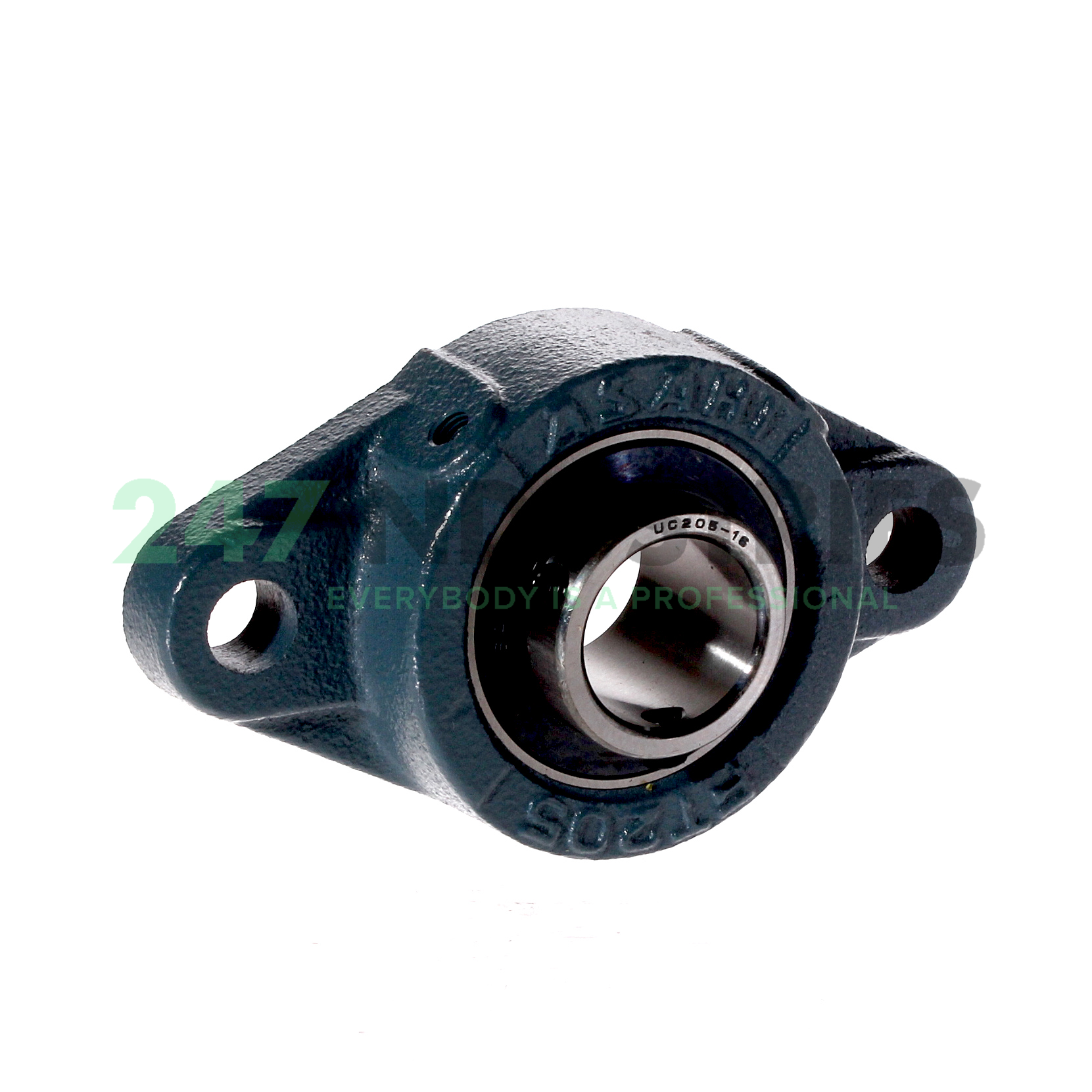

UCFT205-16-A Peer

All dimensions

1. Inner (d) MM 25,4
2. Outer (D) MM 123,83
3. Width (B) MM 34,01
4. Inner (d) Inch 1
5. Outer (D) Inch 4.875
6. Width (B) Inch 1.339

Suffix description

1. 16 1" Bore
2. -A Ball Bearing, Closure Type, None Torque. (Can Be Used As Standard)

Technical details

1. Availability 0 pcs
2. Brand Peer
3. Item number UCFT205-16-A Peer
4. Also known as PER.UCFT205-16-A
   UC205-16 + FT205

5. Category Housing and Bearing (assembly)

Weight and Dimensions

1. Weight (kg) 0.6

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment
