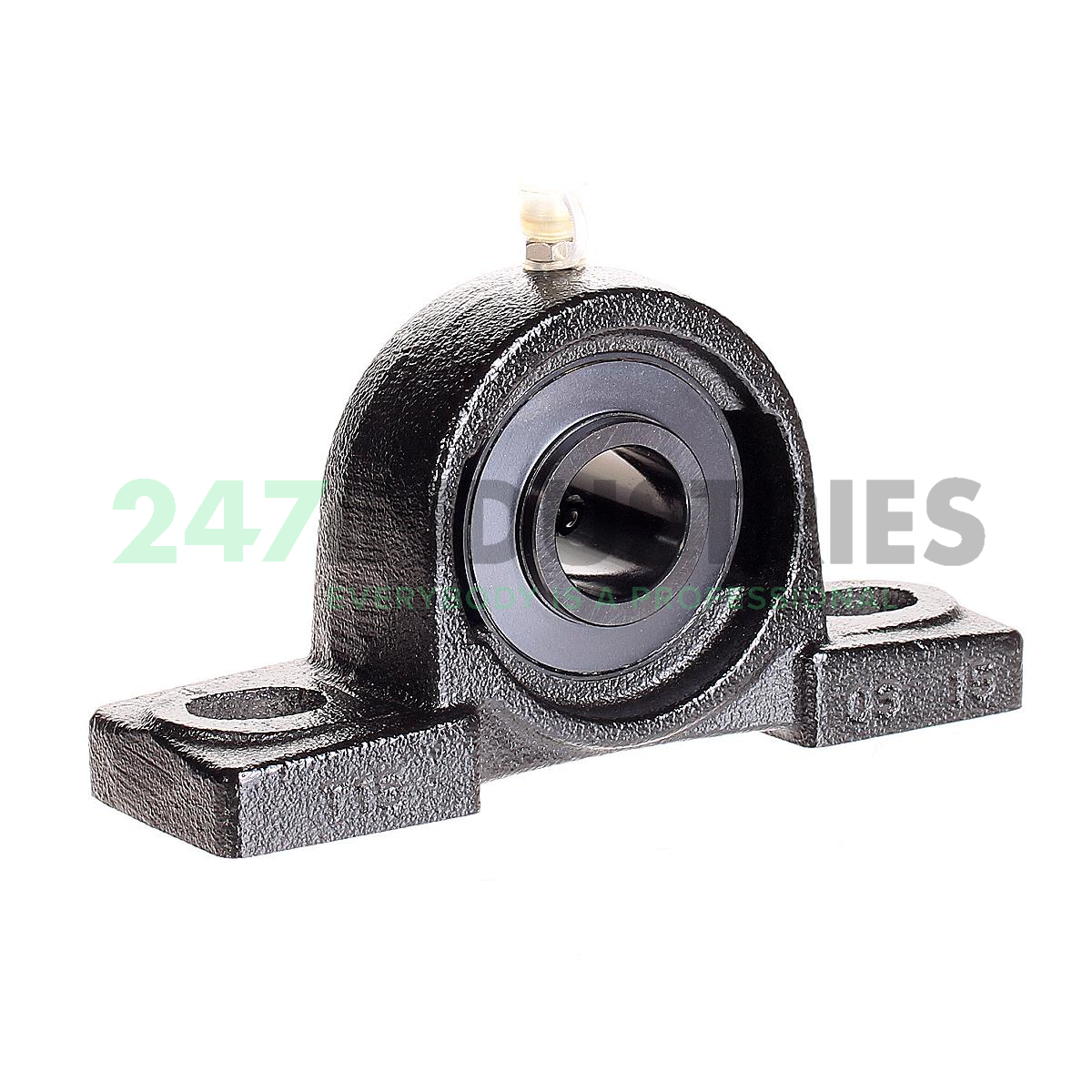

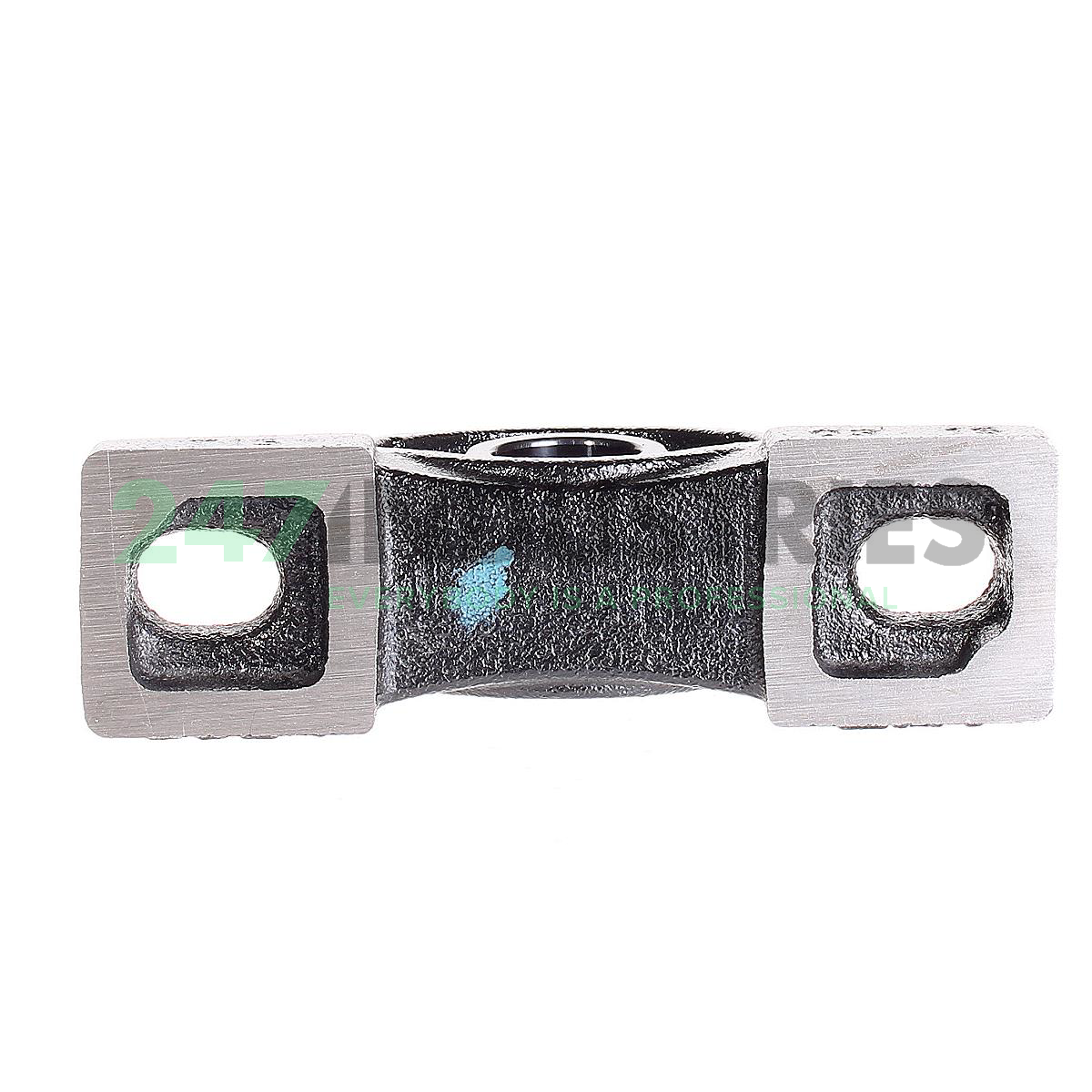

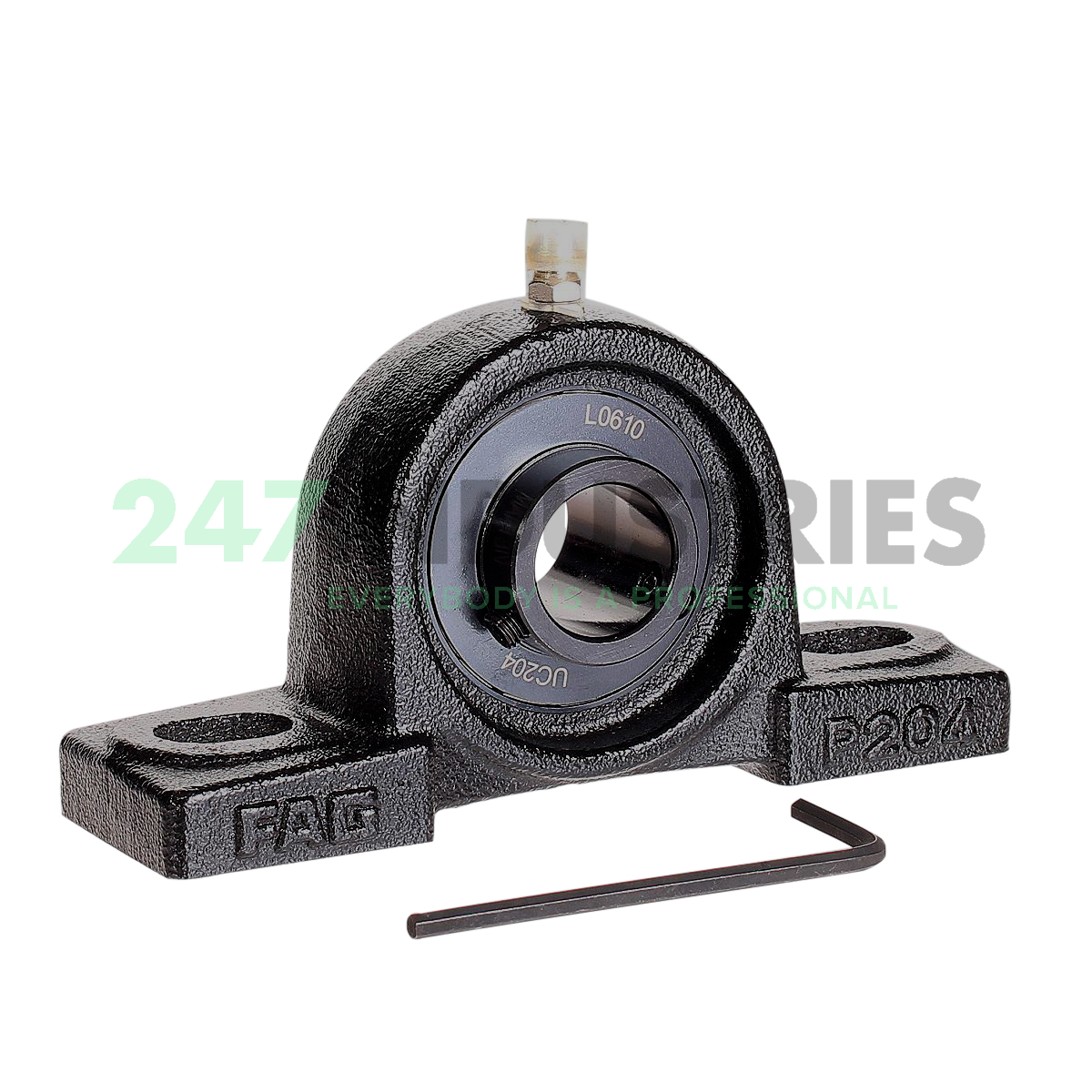

UCP204-J7 FAG

Housing unit

Stock
598 pcs in stock and ready for shipment
Brand FAG
Article number UCP204-J7 FAG
Inside diameter 20mm
Outside diameter 127mm
Width 38mm
Product description

The UCP204-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCP204-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 127
  3. Width (B) MM 38
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 5
  6. Width (B) Inch 1.4961
  7. Length total (L) mm 127
  8. Height (H 2) mm 65

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 598 pcs
  2. Brand FAG
  3. Item number UCP204-J7 FAG
  4. Also known as 0808211970000
    56204 + SG204S
    GYE20KRRB + ASE04
    RASEY20
    SG56204
    SYJ20TF
    UC204 + P204-J7
    YAR204-2F + SYJ504
  5. EAN 4047643247719
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.68

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01
  3. Medias description Plummer block housing units UCP, cast iron housing, with long base, radial insert ball bearing with grub screws in inner ring, RSR seals
