UCP215-J7 FAG

138,56 ex VAT
€ 167,66 incl. VAT
€ 167,66 incl. VAT
138,56 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

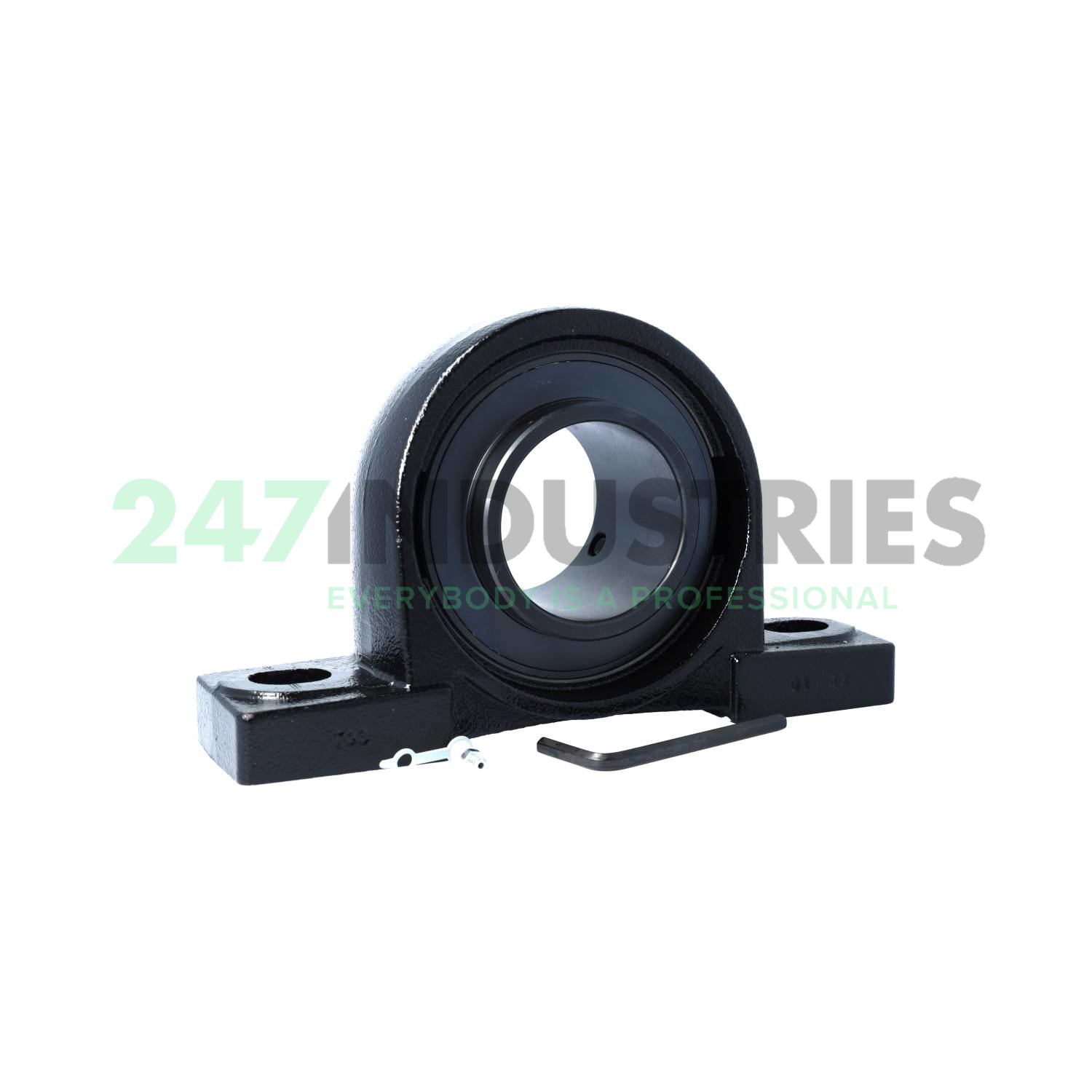

UCP215-J7 FAG

Housing unit

Stock
11 pcs in stock and ready for shipment
Brand FAG
Article number UCP215-J7 FAG
Inside diameter 75mm
Outside diameter 275mm
Width 74mm
Product description

The UCP215-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCP215-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 75
  2. Outer (D) MM 275
  3. Width (B) MM 74
  4. Inner (d) Inch 2.9528
  5. Outer (D) Inch 10.8268
  6. Width (B) Inch 2.9134
  7. Length total (L) mm 275
  8. Height (H 2) mm 163

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 11 pcs
  2. Brand FAG
  3. Item number UCP215-J7 FAG
  4. Also known as 0812178970000
    UC215 + P215-J7
  5. EAN 4054366895394
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 7.3

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01
  3. Medias description Plummer block housing units UCP, cast iron housing, with long base, radial insert ball bearing with grub screws in inner ring, RSR seals

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less

Order this product

UCP215-J7 FAG

UCP215-J7 FAG

11 pcs in stock and ready for shipment
Guaranteed same day shipment on orders placed before 17:00h (CET)
138,56 ex VAT
138,56 ex VAT

UCP215-J7 FAG

11 pcs in stock and ready for shipment
Guaranteed same day shipment on orders placed before 17:00h (CET)
UPS TNT iDeal, Mastercard, Visa, Paypall
