UCP217-55-J7 FAG

Housing unit

Stock
2 pcs in stock and ready for shipment
Brand FAG
Article number UCP217-55-J7 FAG
Inside diameter 87,31mm
Outside diameter 309,96mm
Width 82,95mm
Product description

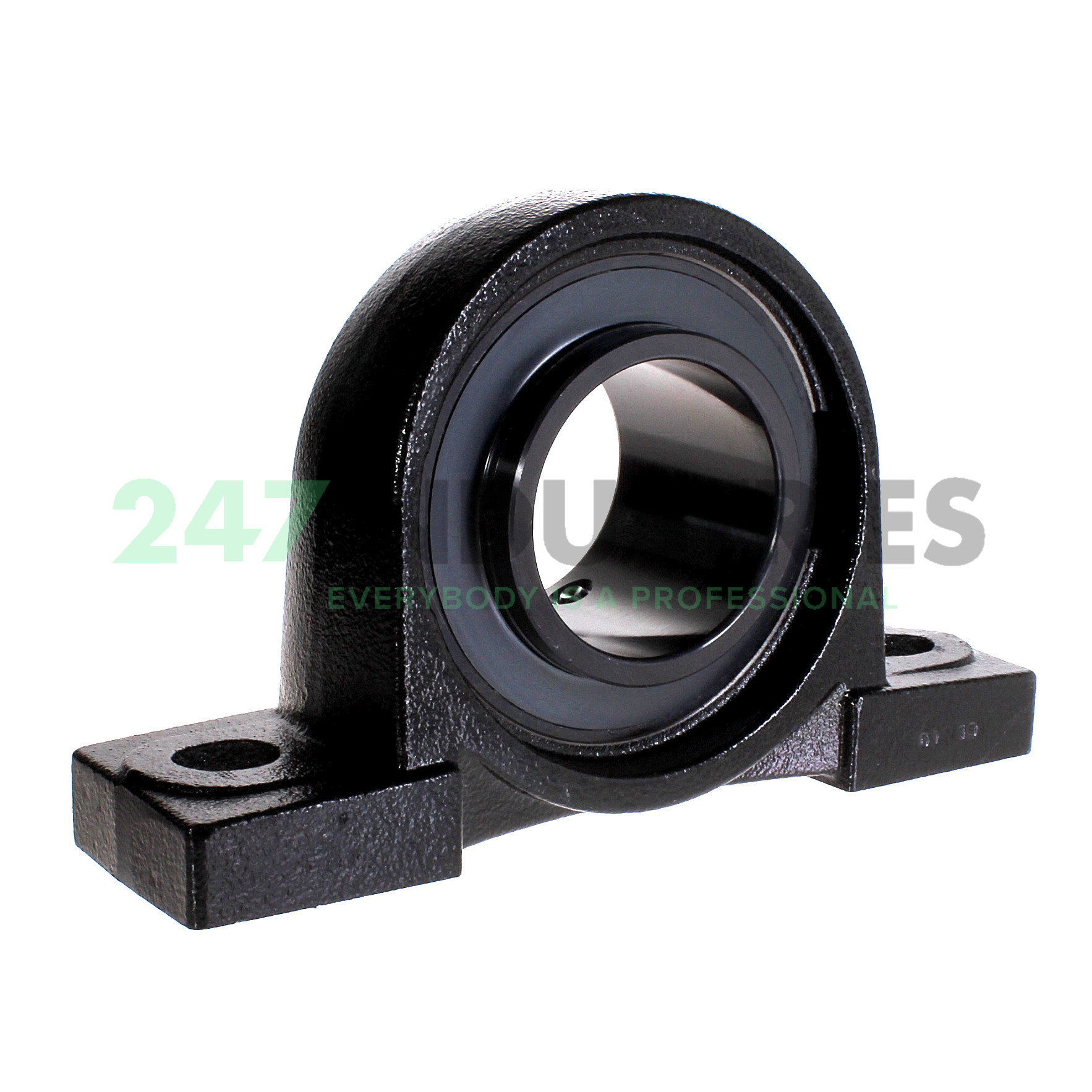

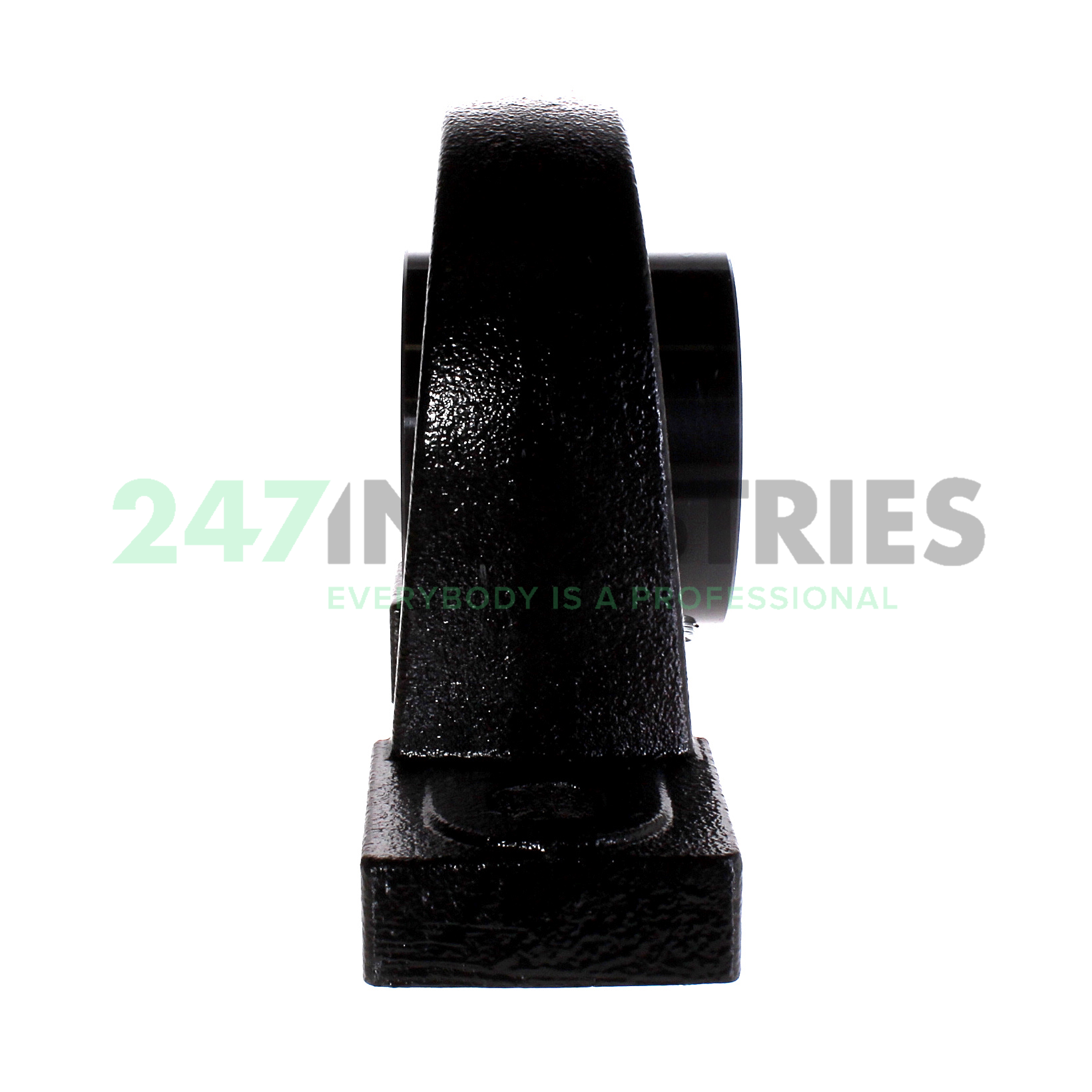

The UCP217-55-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCP217-55-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 87,31
  2. Outer (D) MM 309,96
  3. Width (B) MM 82,95
  4. Inner (d) Inch 3.4375
  5. Outer (D) Inch 12.2031
  6. Width (B) Inch 3.2656
  7. Length total (L) mm 310
  8. Height (H 2) mm 187

Suffix description

  1. 55 3.7/16" Bore
  2. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 2 pcs
  2. Brand FAG
  3. Item number UCP217-55-J7 FAG
  4. Also known as 0812188850000
    SYJ3.7/16TF
    UC217-55 + P217-J7
  5. EAN 4054366895738
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 9.6

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01
  3. Medias description Plummer block housing units UCP, cast iron housing, with long base, radial insert ball bearing with grub screws in inner ring, RSR seals
