UKF217-J7 FAG

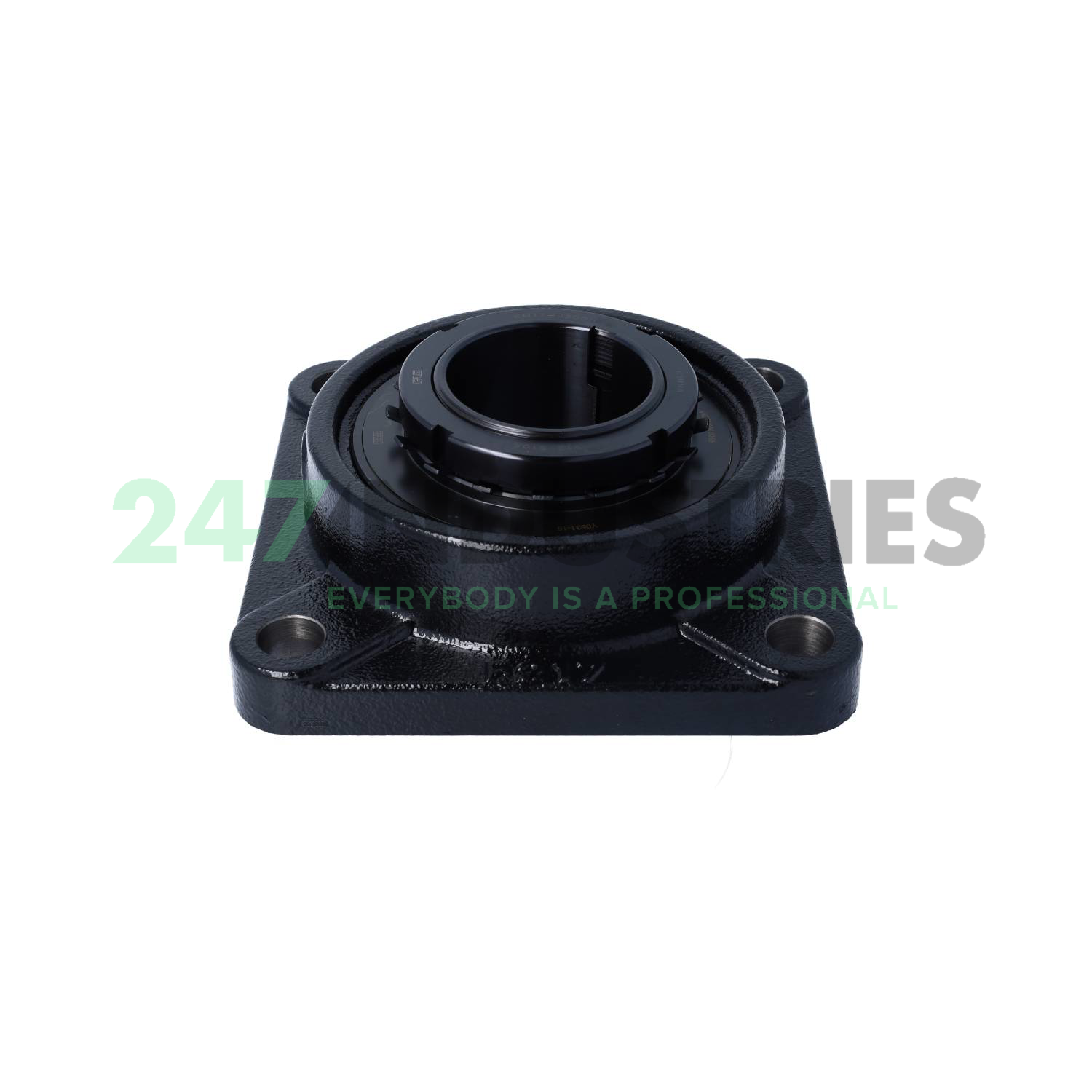

Housing unit

Stock
4 pcs in stock and ready for shipment
Brand FAG
Article number UKF217-J7 FAG
Inside diameter 75mm
Outside diameter 214mm
Width 76mm
Product description

The UKF217-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UKF217-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 75
  2. Outer (D) MM 214
  3. Width (B) MM 76
  4. Inner (d) Inch 2.9528
  5. Outer (D) Inch 8.4252
  6. Width (B) Inch 2.9921
  7. Flange width (L) mm 220

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 4 pcs
  2. Brand FAG
  3. Item number UKF217-J7 FAG
  4. Also known as 0812188930000
    UK217 + F217-J7 + H317
  5. EAN 4054366895745
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 9

Product Properties

  1. Seal 2FK - Standard Seal + Plain Flinger
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 64000
  2. Radial Dynamic Load Rating Cr (N) 88000
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Flanged housing unit UKF
