UKP209-J7 FAG

50,97 ex VAT
€ 61,67 incl. VAT
€ 61,67 incl. VAT
50,97 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

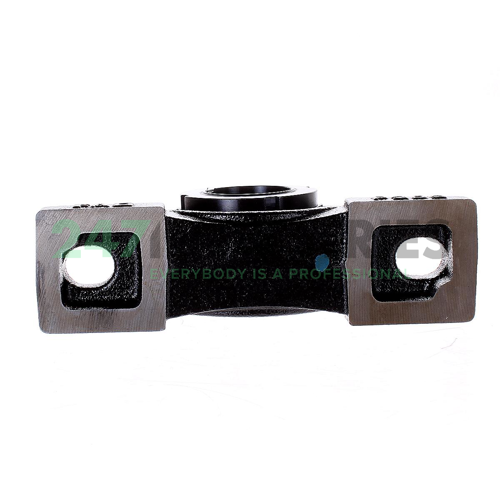

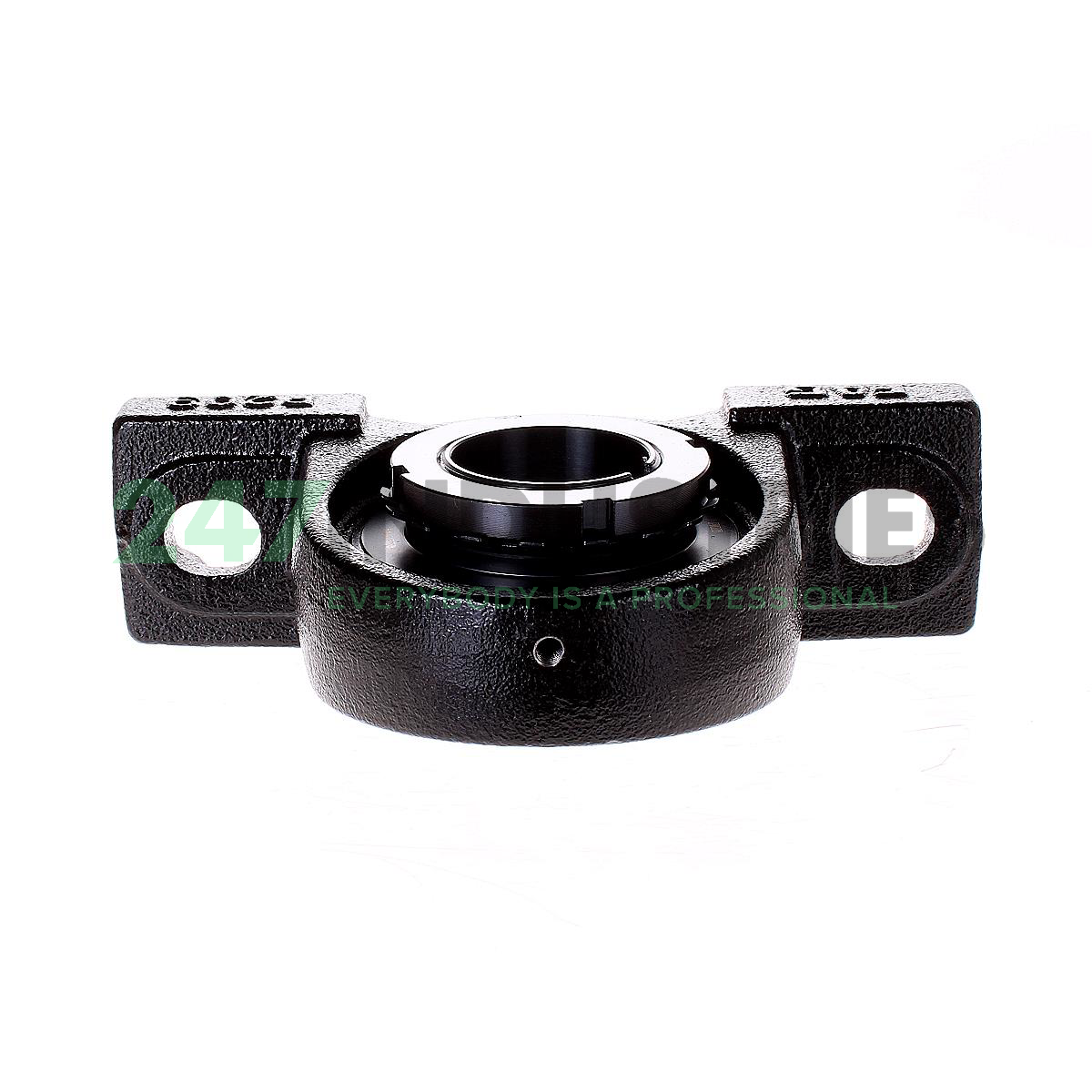

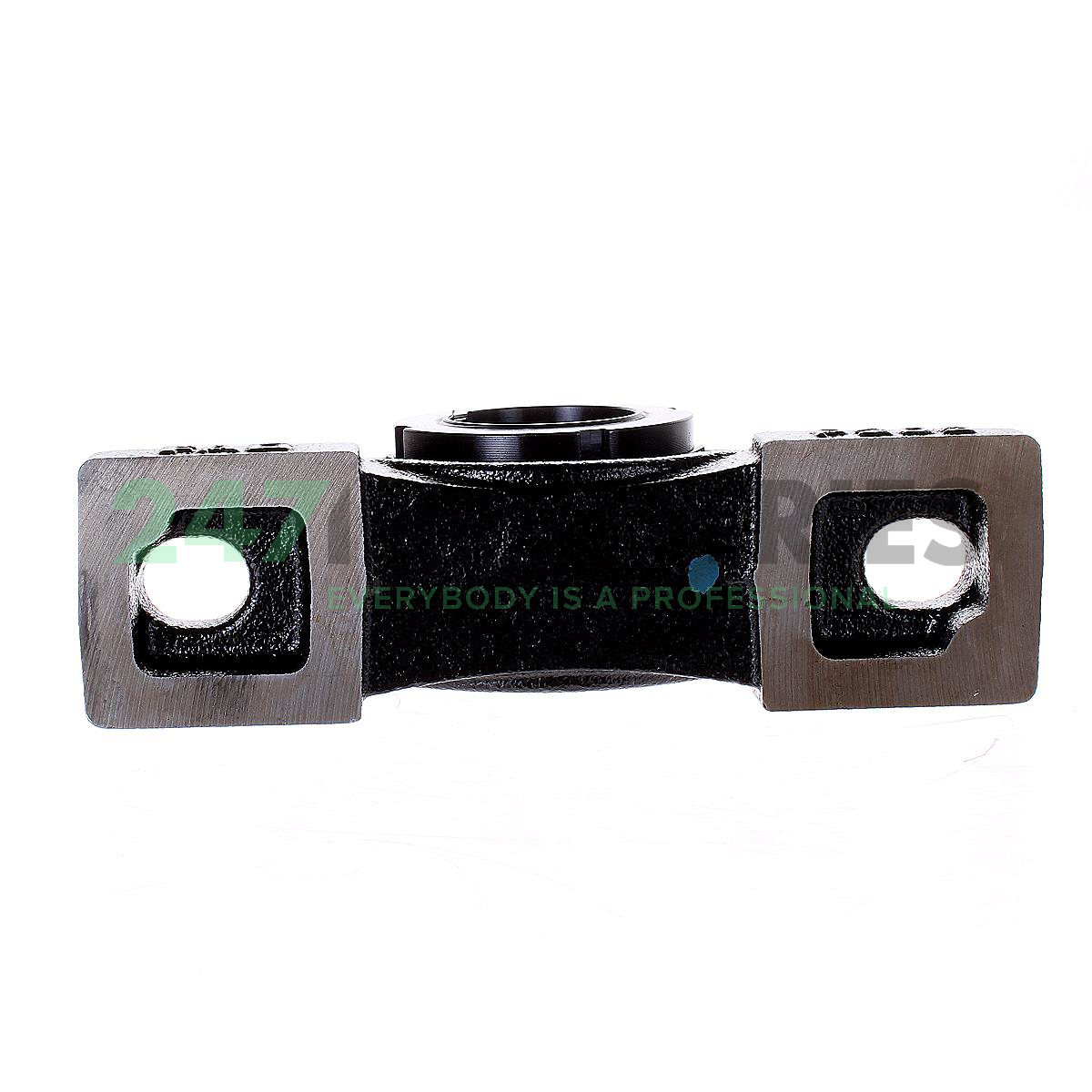

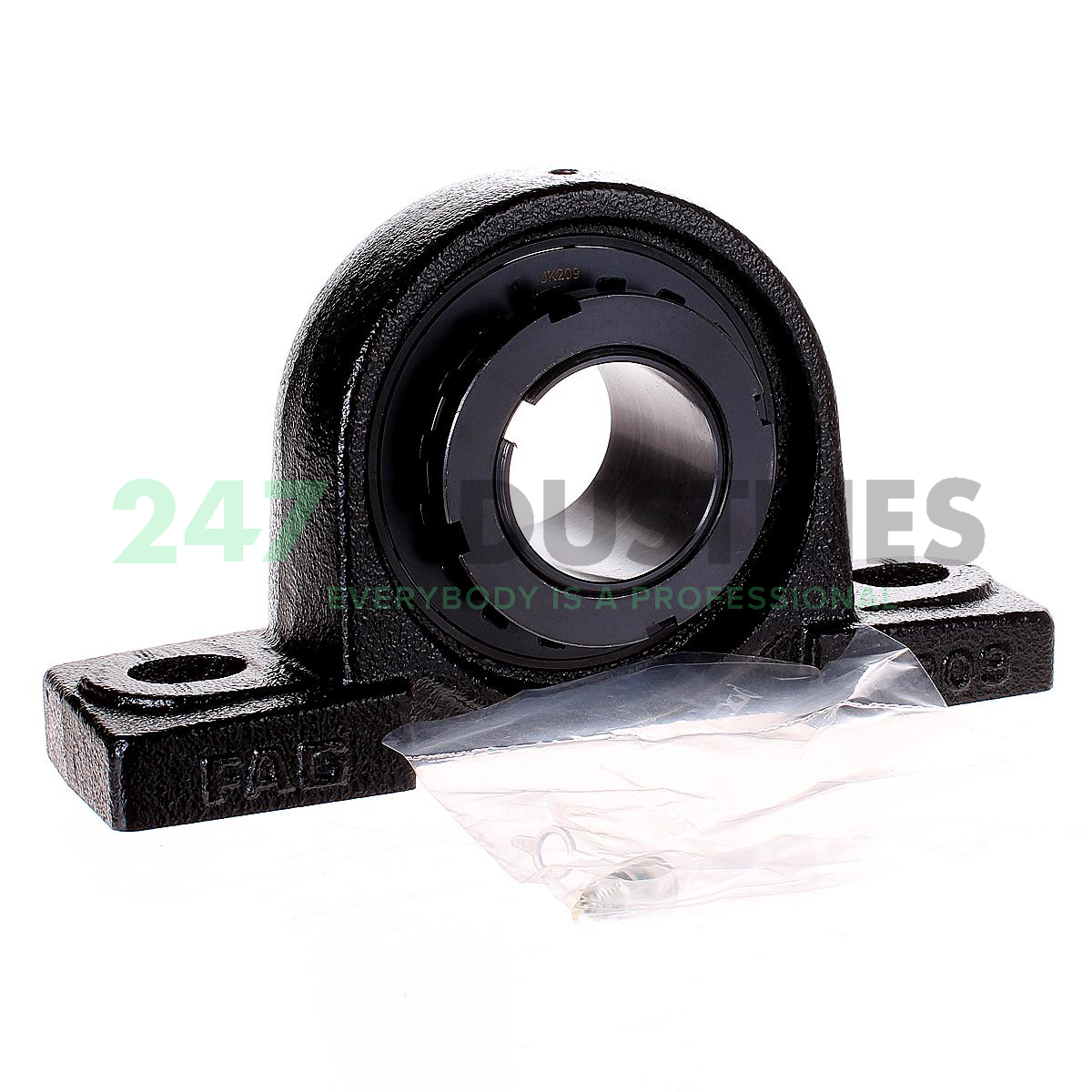

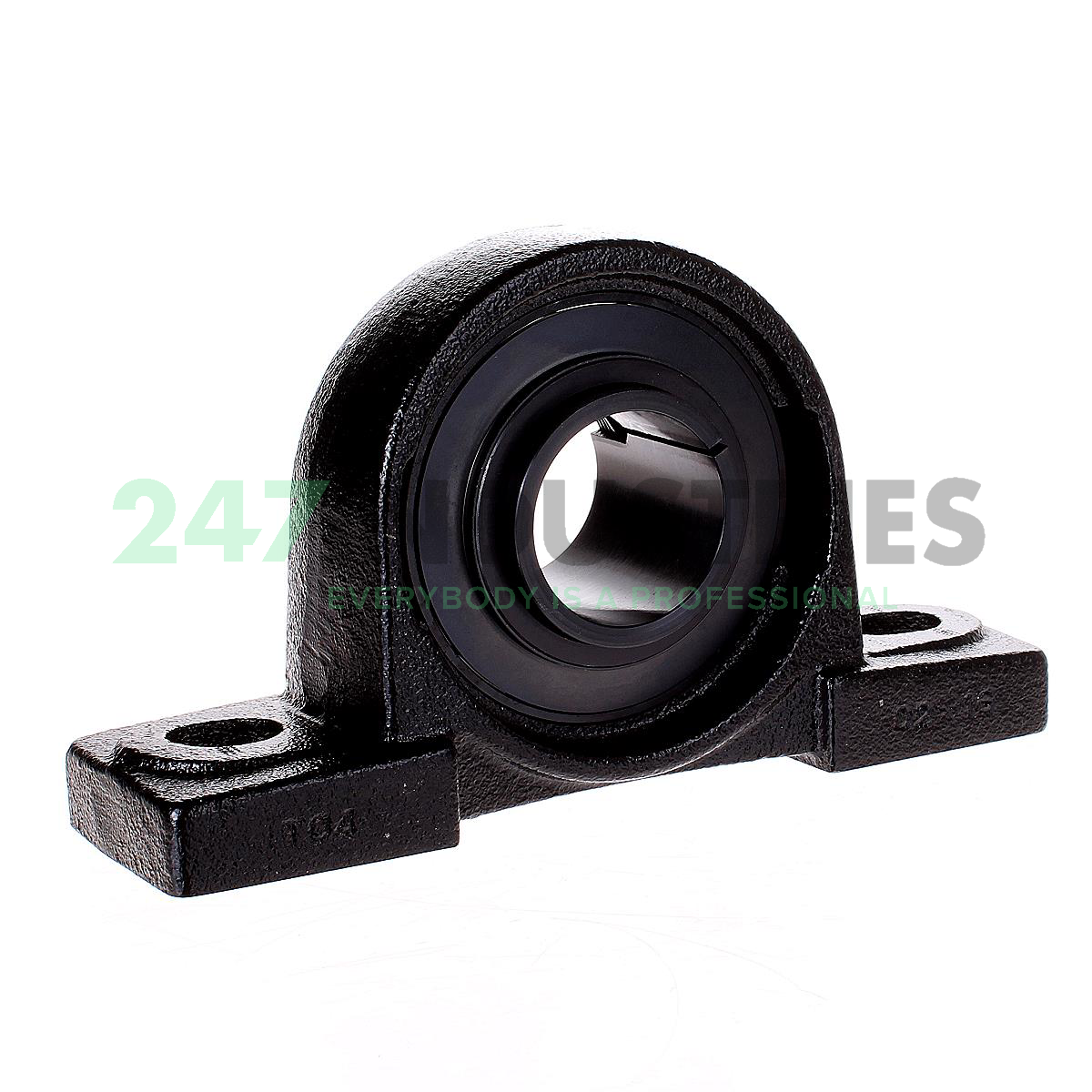

UKP209-J7 FAG

Housing unit

Stock
18 pcs in stock and ready for shipment
Brand FAG
Article number UKP209-J7 FAG
Inside diameter 40mm
Outside diameter 190mm
Width 54mm
Product description

The UKP209-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UKP209-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 190
  3. Width (B) MM 54
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 7.4803
  6. Width (B) Inch 2.126
  7. Length total (L) mm 190
  8. Height (H 2) mm 106

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 18 pcs
  2. Brand FAG
  3. Item number UKP209-J7 FAG
  4. Also known as 0812155500000
    UK209 + P209
  5. EAN 4047643261845
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 2.29

Product Properties

  1. Seal 2FK - Standard Seal + Plain Flinger
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01
  3. Medias description Plummer block housing units UKP, cast iron housing, with long base, radial insert ball bearing with adapter sleeve, RSR seals

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less

Order this product

UKP209-J7 FAG

UKP209-J7 FAG

18 pcs in stock and ready for shipment
Guaranteed same day shipment on orders placed before 17:00h (CET)
50,97 ex VAT
50,97 ex VAT

UKP209-J7 FAG

18 pcs in stock and ready for shipment
Guaranteed same day shipment on orders placed before 17:00h (CET)
UPS TNT iDeal, Mastercard, Visa, Paypall
