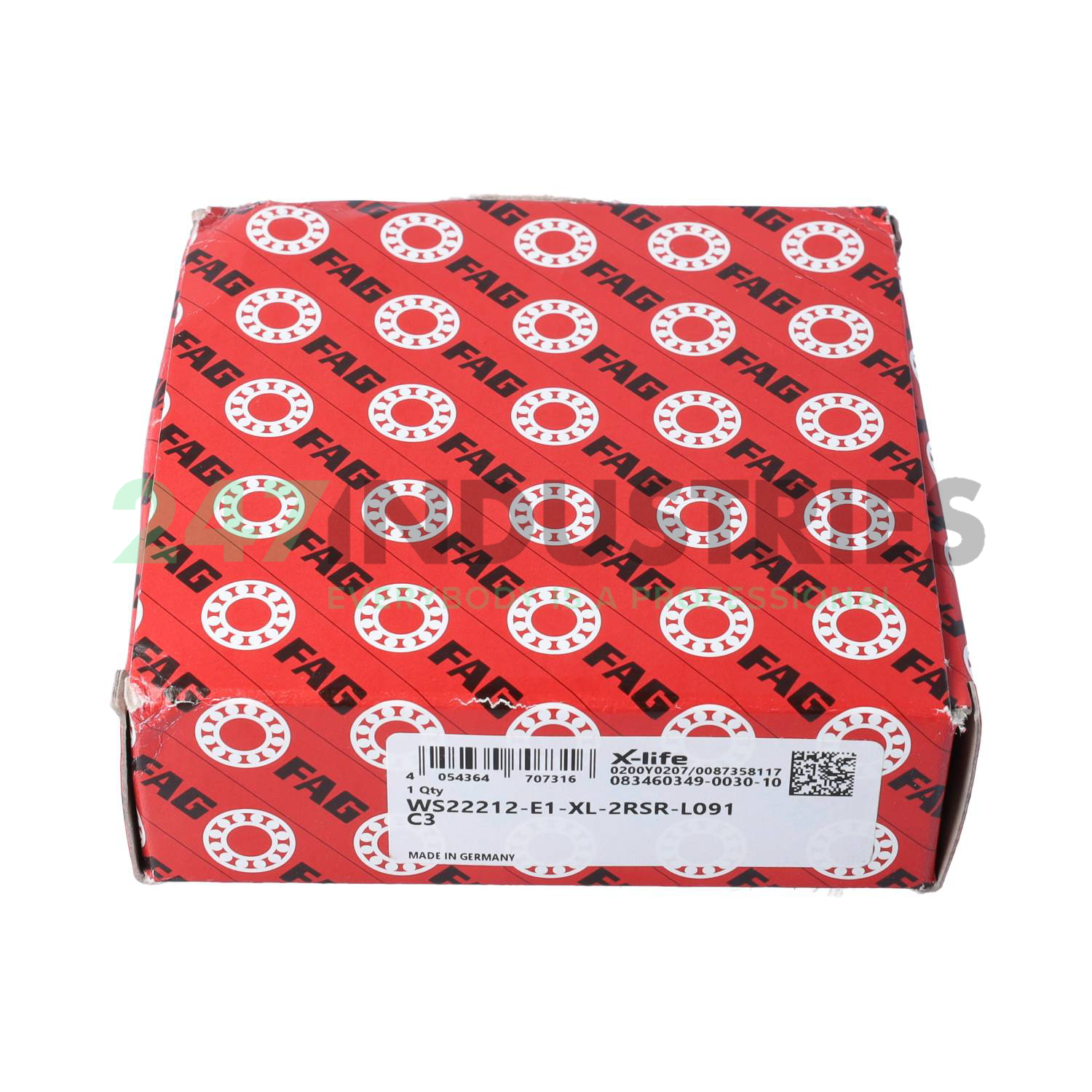

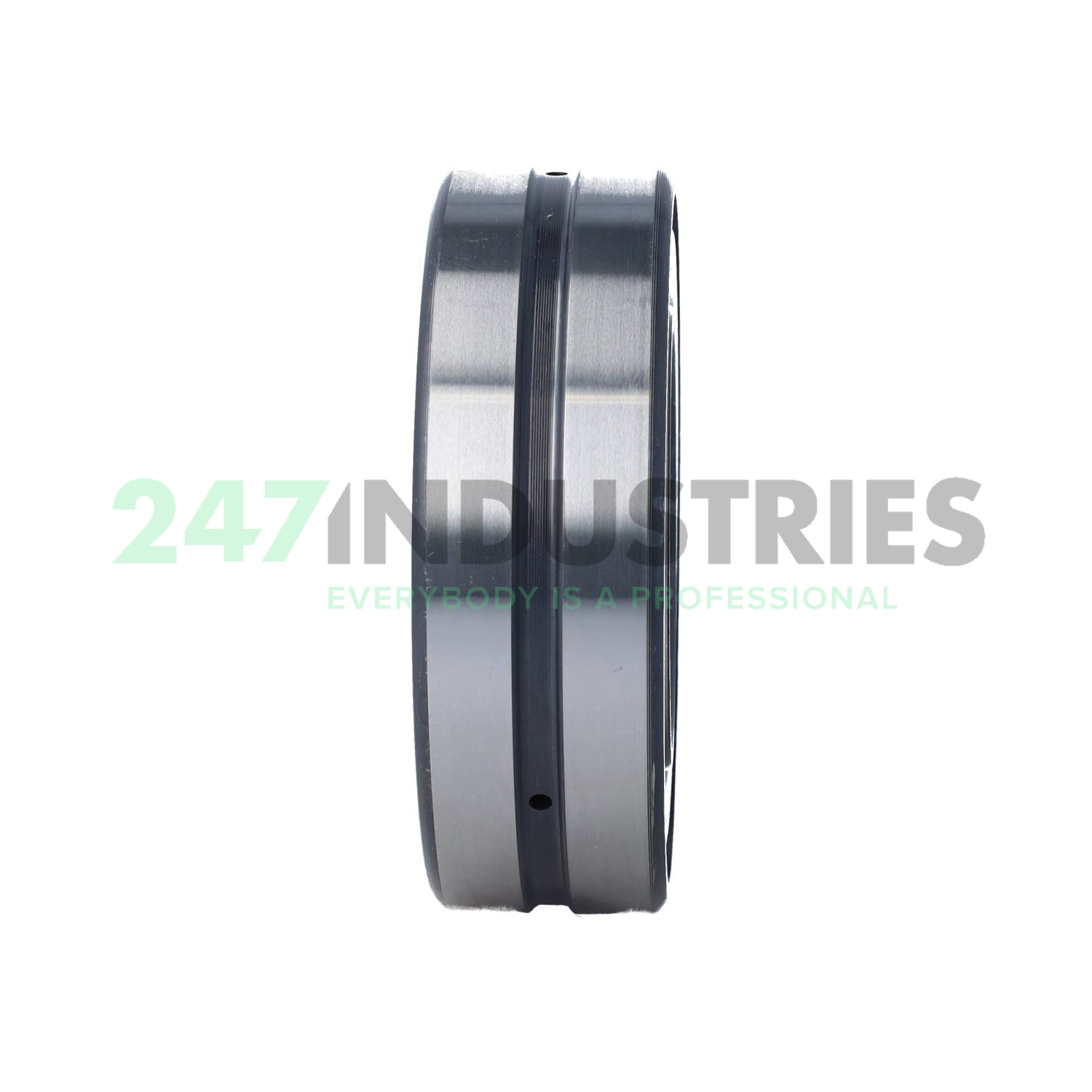

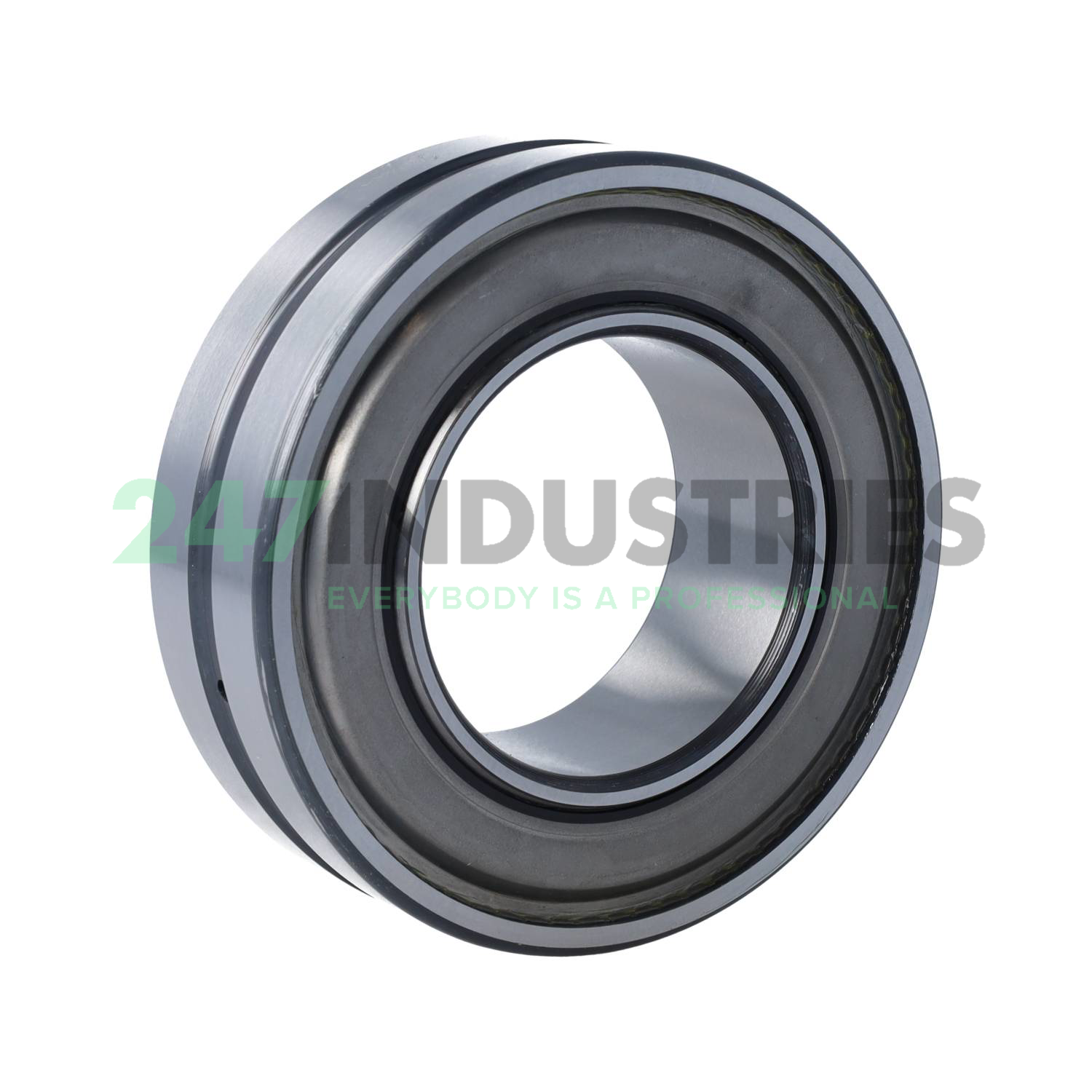

WS22212-E1-XL-2RSR-L091-C3 FAG

All dimensions

1. Width (b) mm 34

Suffix description

1. E1 Increased Capacity Design
2. XL X-Life
3. 2RSR Rubber Seals At Each Side Of The Bearing
4. L091 Optimized Grease For All Purposes, Temperature Range Approximately -40 ~ 80°C - Description: Isoflex® LDS 18 Special A)-Is A Dynamically Light Long-Term Grease For Plain And Rolling Bearings. It Consists Of Ester Oil, Mineral Oil And Lithium Soap. The Product Is Resistant To Ageing, Oxidation And Water, And It Protects Reliably Against Corrosion. Application: Isoflex® LDS 18 Special A Is Suitable For Plain And Rolling Bearings Operating At Low Temperatures And/Or High Speeds, For Example In Grinding Spindles, Machine Tool Spindles, Spindle Bearings, Textile Spindles, Bearings In Oe-Spinning Turbines, Bearings In Precision And Optical Equipment
5. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 4 pcs
2. Brand FAG
3. Item number WS22212-E1-XL-2RSR-L091-C3 FAG
4. Also known as 0834603490030
   WS22212-E1-2RSR-L091-C3

5. EAN 4054364707316
6. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 1.3

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal 2RS - Rubber Seal on Two Sides
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Grease -50°C / +120°C
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 155000
2. Limiting speed (n G) 2030
