XCS7013-E-T-P4S-K5-QUL FAG

€ 6.596,49 ex VAT
€ 7.981,76 incl. VAT
€ 7.981,76 incl. VAT
€ 6.596,49 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

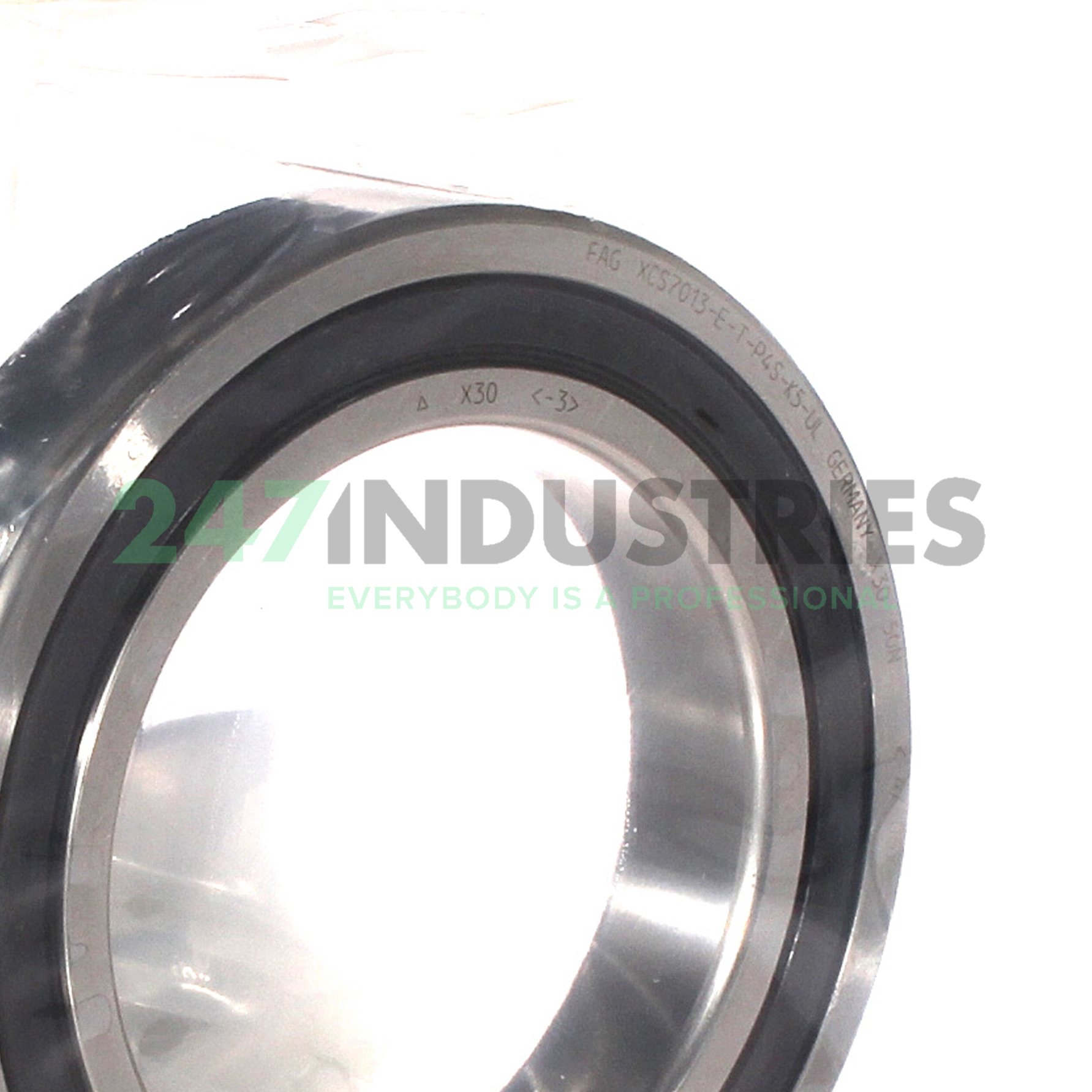

XCS7013-E-T-P4S-K5-QUL FAG

Cronidur 30 high speed spindle bearing with small ceramic balls

Stock
1 pc in stock and ready for shipment
Brand FAG
Article number XCS7013-E-T-P4S-K5-QUL FAG
Inside diameter 65mm
Outside diameter 100mm
Width 72mm
Product description

The XCS7013-E-T-P4S-K5-QUL FAG is a spindle bearing with a very durable construction. XCS angular contact ball bearings are part of the FAG X-life ultra series. These hybrid bearings combine a ring of Cronidur 30 steel with ceramic balls. X-life ultra bearings can withstand high speeds, high loads and high temperatures. FAG XCS models have small balls for extra high speeds.

Cronidur 30 steel generates less heat, allowing for higher contact pressure. It is corrosion resistant and less vulnerable to dirt than normal bearing steel. Furthermore, X-life ultra bearings have ceramic balls for higher speeds. The combination of steel and ceramics reduces the load on both materials and lubricants. With the wear-resistant XCS7013-E-T-P4S-K5-QUL FAG you save considerably on your maintenance and operating costs.

Read more Show less
Help with this product

Similar to: XCS7013-E-T-P4S-K5-QUL FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 65
  2. Outer (D) MM 100
  3. Width (B) MM 72
  4. Inner (d) Inch 2.5591
  5. Outer (D) Inch 3.937
  6. Width (B) Inch 2.8346
  7. Width (b) mm 18

Suffix description

  1. E 25° Contact Angle
  2. T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
  3. P4S-K5 Combination Of P4S (Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9) And K5 (Same as P4S But With Mean Sorting Of Bore And Outside Diameter)
  4. QUL Set Of 4 Universal Bearings, Light Preload

Technical details

  1. Availability 1 pc
  2. Brand FAG
  3. Item number XCS7013-E-T-P4S-K5-QUL FAG
  4. Also known as 0547854300000
  5. EAN 4012802223248
  6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 1.8

Product Properties

  1. Seal 2RU - Two Seals / Non Contact Type
  2. Cage Type TB - Hard Fiber Cage
  3. Precision K5 - P4S + K5
  4. Contact Angle 25 degrees
  5. Pairing G - Universal Pairing
  6. Axial Internal Clearance / Preload QL - Quad Set, Light Preload
  7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

  1. Basic static load rating, radial (C 0r) 12200
  2. Limiting speed for grease lubrication (n G Grease) 24000
