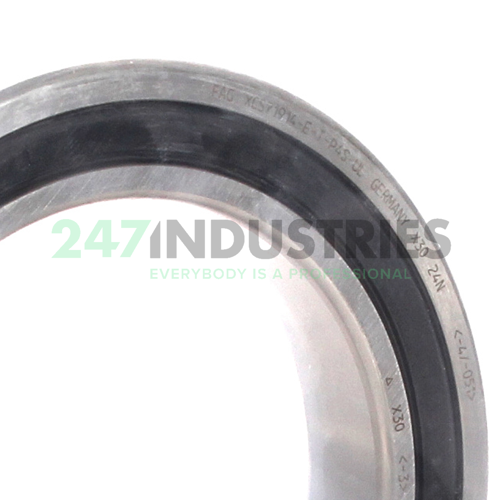

XCS71914-E-T-P4S-UL FAG

Cronidur 30 high speed spindle bearing with small ceramic balls

Stock	2 pcs in stock and ready for shipment
Brand	FAG
Article number	XCS71914-E-T-P4S-UL FAG

Product description

The XCS71914-E-T-P4S-UL FAG is a spindle bearing with a very durable construction. XCS angular contact ball bearings are part of the FAG X-life ultra series. These hybrid bearings combine a ring of Cronidur 30 steel with ceramic balls. X-life ultra bearings can withstand high speeds, high loads and high temperatures. FAG XCS models have small balls for extra high speeds.

Cronidur 30 steel generates less heat, allowing for higher contact pressure. It is corrosion resistant and less vulnerable to dirt than normal bearing steel. Furthermore, X-life ultra bearings have ceramic balls for higher speeds. The combination of steel and ceramics reduces the load on both materials and lubricants. With the wear-resistant XCS71914-E-T-P4S-UL FAG you save considerably on your maintenance and operating costs.

Start a chat
Call us at: +31 (0)85 00 22 247
Email us at: help@247industries.com Response within 24h

Similar to: XCS71914-E-T-P4S-UL FAG

Loading similair products

Product specifications

Suffix description

E 25° Contact Angle
T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
P4S Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
UL Single Bearing, Universal, Light Preload

Technical details

Availability 2 pcs
Brand FAG
Item number XCS71914-E-T-P4S-UL FAG
Also known as 0385886680000
EAN 4026677537317
Category Angular Contact Ball Bearing Single Row

Product Properties

Pairing G - Universal Pairing
Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
Lubrication Standard Lubrication
