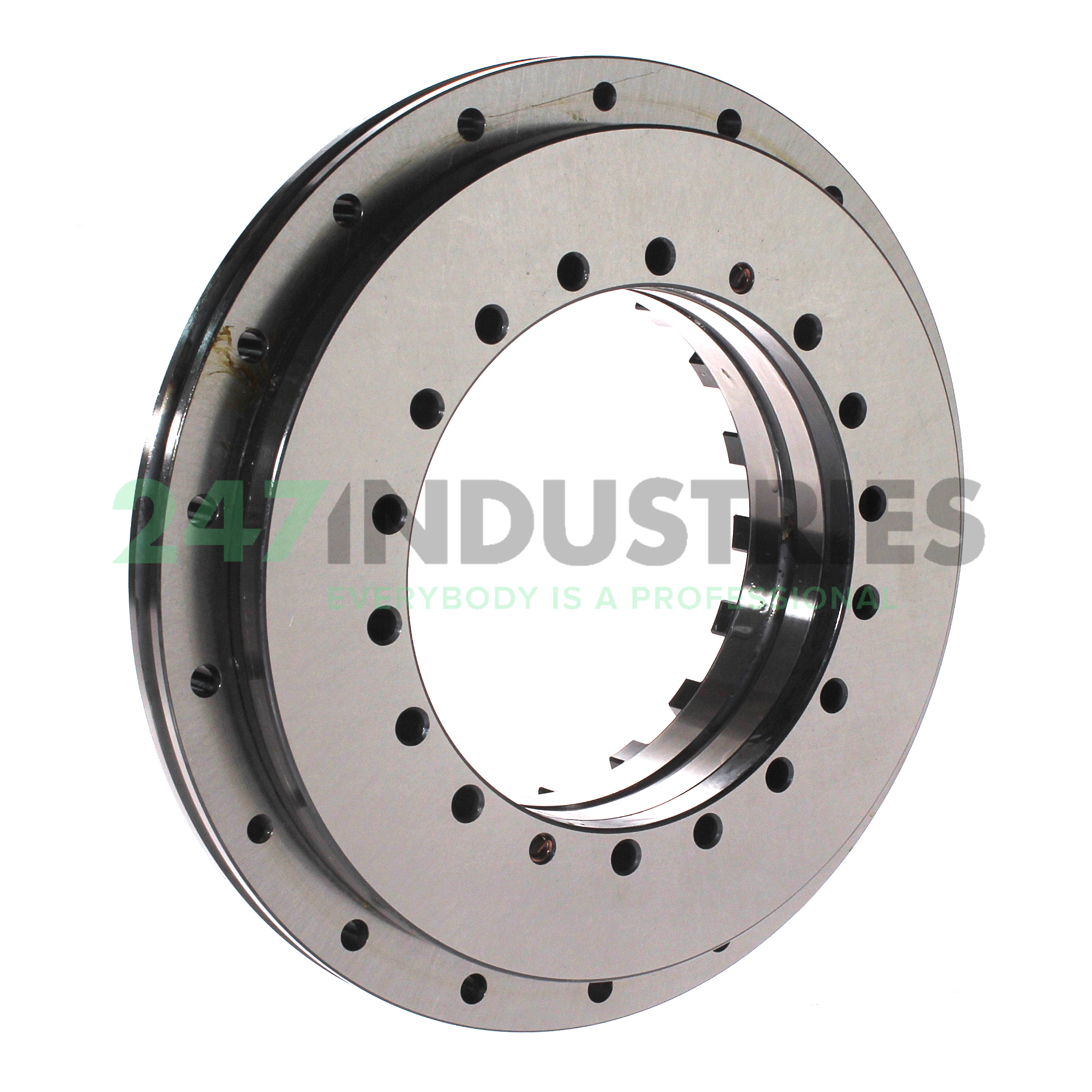

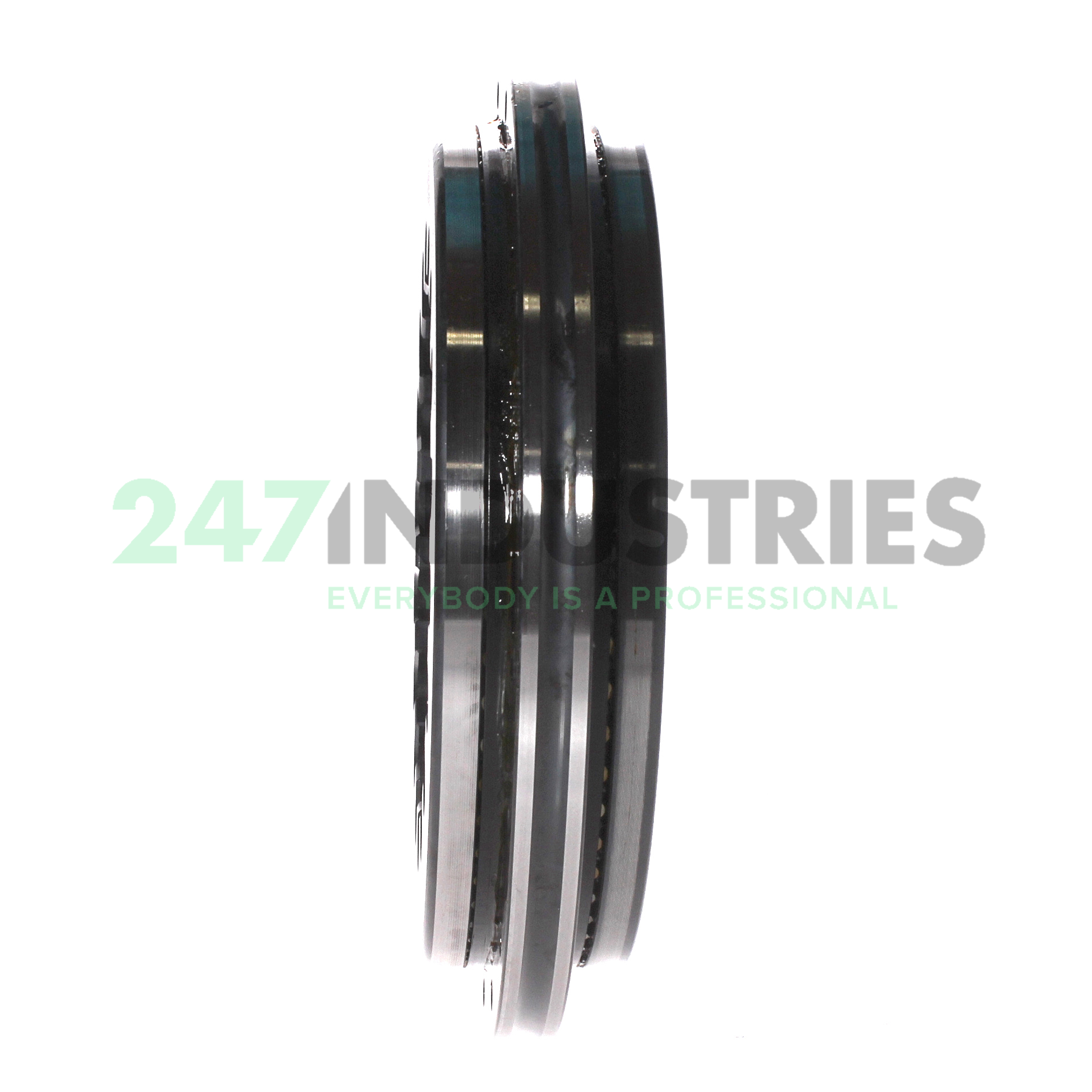

YRTC100-XL INA

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 185
3. Width (B) MM 38
4. Inner (d) Inch 3.937
5. Outer (D) Inch 7.2835
6. Width (B) Inch 1.4961
7. Height (H) mm 38

Suffix description

1. XL X-Life

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number YRTC100-XL INA
4. Also known as 0889032730000
   RTC100-T52EA
   YRT100
   YRT100-C

5. EAN 4054371794866
6. Category Specials

Weight and Dimensions

1. Weight (kg) 3.65

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 88000
2. Radial Dynamic Load Rating Cr (N) 49500
3. Axial Static Load Rating C0a (N) 455000
4. Axial Dynamic Load Rating Ca (N) 105000
5. Limiting speed (n G) 1200
6. ECLASS number 23-05-12-04
7. ECLASS2 number 23-05-12-04
8. Medias description Axial/radial bearings double direction, screw mounting, with integrated angular measuring system
