ZKLF40100-2RS-2AP-XL INA

Double direction angular contact thrust ball bearing

Stock
4 pcs in stock and ready for shipment
Brand INA
Article number ZKLF40100-2RS-2AP-XL INA
Inside diameter 40mm
Outside diameter 100mm
Width 68mm
Product description

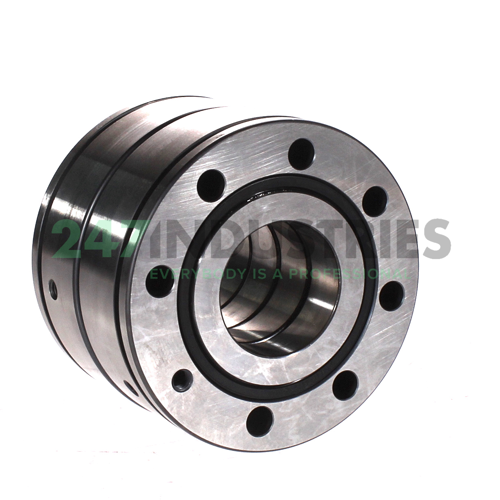

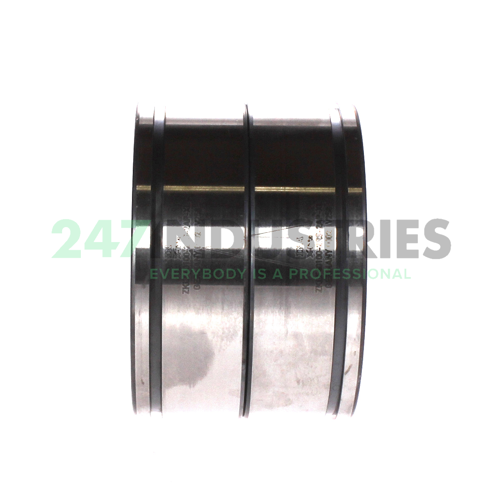

The ZKLF40100-2RS-2AP-XL INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.

The outer ring of the ZKLF40100-2RS-2AP-XL INA is equipped with bolt holes, allowing this bearing to be easily mounted directly onto or into the adjacent structure. No separate cover is needed to secure the bearing, reducing installation time and effort. Additionally, the outer ring has a groove for easy removal from the housing. The ZKLF40100-2RS-2AP-XL INA thus enables a rigid bearing arrangement that is easy to assemble and disassemble.

Furthermore, the ZKLF40100-2RS-2AP-XL INA comprises a matched pair bearing set. Consequently, a bearing arrangement with higher load capacity and rigidity can be created. The two individual bearings in this set are matched to each other. An arrow-shaped marking on the outside of the outer rings ensures that the bearings are very easy to position correctly.

Read more Show less
Help with this product

Downloads and links

Similar to: ZKLF40100-2RS-2AP-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 100
  3. Width (B) MM 68
  4. Width (b) mm 68

Suffix description

  1. 2RS Rubber Seals At Each Side Of The Bearing
  2. 2AP Matched Pair (Twice The Number Of Bearings, Than Without 2AP)
  3. XL X-Life

Technical details

  1. Availability 4 pcs
  2. Brand INA
  3. Item number ZKLF40100-2RS-2AP-XL INA
  4. Also known as 0000741790000
    ZKLF40100-2RS-2AP
  5. EAN 4012802078800
  6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

  1. Weight (kg) 2.9

Product Properties

  1. Cage Type P - Plastic Molded Cage
  2. Precision Matched Pair

Data from Schaeffler (medias)

  1. Axial Static Load Rating C0a (N) 202000
  2. Axial Dynamic Load Rating Ca (N) 77000
  3. Limiting speed for grease lubrication (n G Grease) 4000
  4. Thermally safe operating speed (n ϑ) 1800
  5. ECLASS number 23-05-10-02
  6. ECLASS2 number 23-05-10-02
  7. Medias description Axial angular contact ball bearing ZKLF..-2RS-2AP-XL, double direction, screw mounting
