ZKLF40115-2RS-PE INA

Double direction angular contact thrust ball bearing

Stock
4 pcs in stock and ready for shipment
Brand INA
Article number ZKLF40115-2RS-PE INA
Inside diameter 40mm
Outside diameter 115mm
Width 46mm
Product description

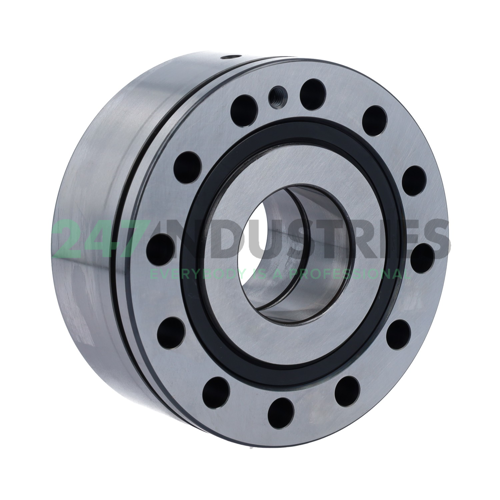

The ZKLF40115-2RS-PE INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.

The outer ring of the ZKLF40115-2RS-PE INA is equipped with bolt holes, allowing this bearing to be easily mounted directly onto or into the adjacent structure. No separate cover is needed to secure the bearing, reducing installation time and effort. Additionally, the outer ring has a groove for easy removal from the housing. The ZKLF40115-2RS-PE INA thus enables a rigid bearing arrangement that is easy to assemble and disassemble.

The ZKLF40115-2RS-PE INA is a bearing variant with less strict tolerances compared to the higher-priced version without the PE suffix. This bearing is very suitable for applications where a bearing arrangement with lower precision is sufficient. The adjacent structure does not need to be engineered as precisely, keeping costs low.

Read more Show less
Help with this product

Downloads and links

Similar to: ZKLF40115-2RS-PE INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 115
  3. Width (B) MM 46

Suffix description

  1. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting
  2. PE Enlarged Diameter Tolerance And Axial Runout To P5 Tolerance Class For Radial Bearings

Technical details

  1. Availability 4 pcs
  2. Brand INA
  3. Item number ZKLF40115-2RS-PE INA
  4. Also known as 0021867560000
    BEAM040115-2RS/PE
    BEAM40/115C SQ P60
  5. EAN 4047643181990
  6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

  1. Weight (kg) 2.2

Product Properties

  1. Cage Type P - Plastic Molded Cage
  2. Precision P5 Precision (Higher than P6)

Data from Schaeffler (medias)

  1. ECLASS number 23-05-10-02
  2. ECLASS2 number 23-05-10-02
