ZKLF40115-2Z-XL INA

Double direction angular contact thrust ball bearing

Stock
3 pcs in stock and ready for shipment
Brand INA
Article number ZKLF40115-2Z-XL INA
Inside diameter 40mm
Outside diameter 115mm
Width 46mm
Product description

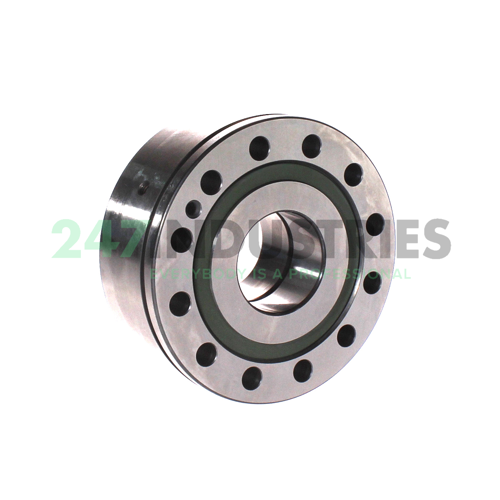

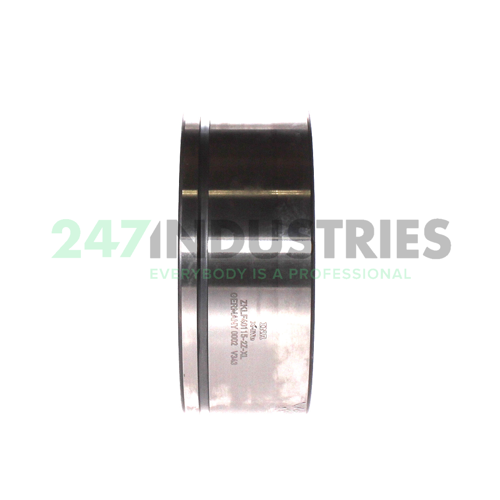

The ZKLF40115-2Z-XL INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.

The outer ring of the ZKLF40115-2Z-XL INA is equipped with bolt holes, allowing this bearing to be easily mounted directly onto or into the adjacent structure. No separate cover is needed to secure the bearing, reducing installation time and effort. Additionally, the outer ring has a groove for easy removal from the housing. The ZKLF40115-2Z-XL INA thus enables a rigid bearing arrangement that is easy to assemble and disassemble.

Read more Show less
Help with this product

Downloads and links

Similar to: ZKLF40115-2Z-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 115
  3. Width (B) MM 46
  4. Width (b) mm 46

Suffix description

  1. 2Z Gap Seals At Both Sides Of The Bearing
  2. XL X-Life

Technical details

  1. Availability 3 pcs
  2. Brand INA
  3. Item number ZKLF40115-2Z-XL INA
  4. Also known as 0005399450000
    BEAM040115-2Z
    BEAM40/115Z 7 P60
    ZKLF40115-2Z
  5. EAN 4012802421125
  6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

  1. Weight (kg) 2.2

Product Properties

  1. Cage Type P - Plastic Molded Cage
  2. Precision P4 Precision (Higher than P5)

Data from Schaeffler (medias)

  1. Axial Static Load Rating C0a (N) 149000
  2. Axial Dynamic Load Rating Ca (N) 79000
  3. Limiting speed for grease lubrication (n G Grease) 4400
  4. Thermally safe operating speed (n ϑ) 3100
  5. ECLASS number 23-05-10-02
  6. ECLASS2 number 23-05-10-02
  7. Medias description Axial angular contact ball bearings ZKLF..-2Z, double direction, for screw mounting, gap seals on both sides

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
