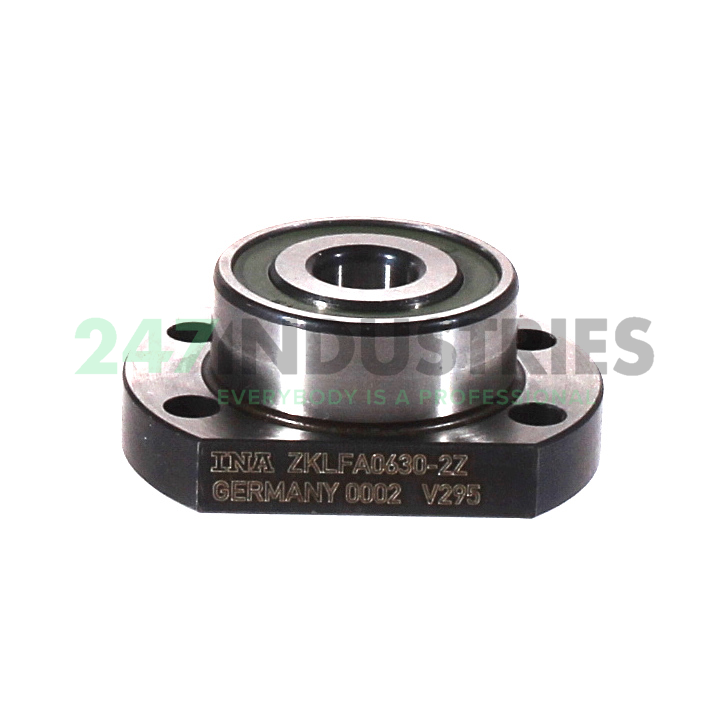

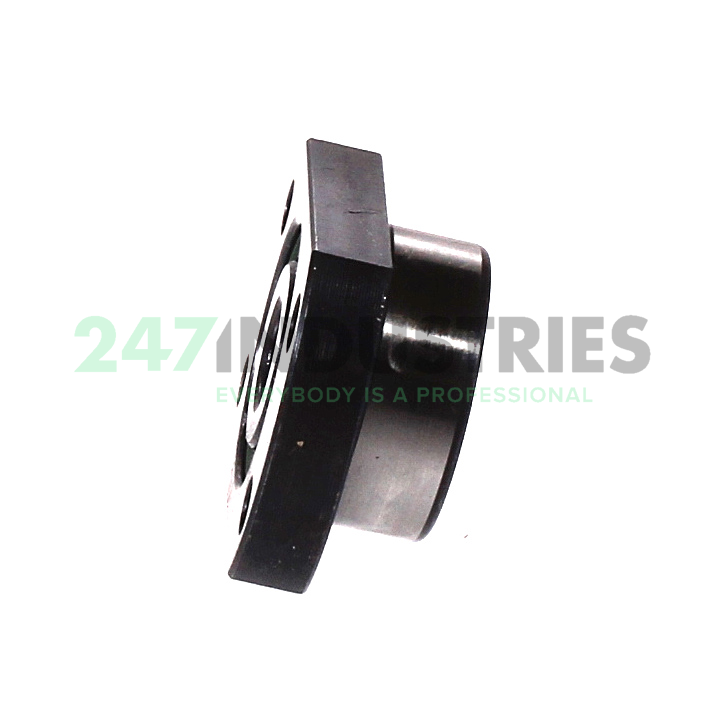

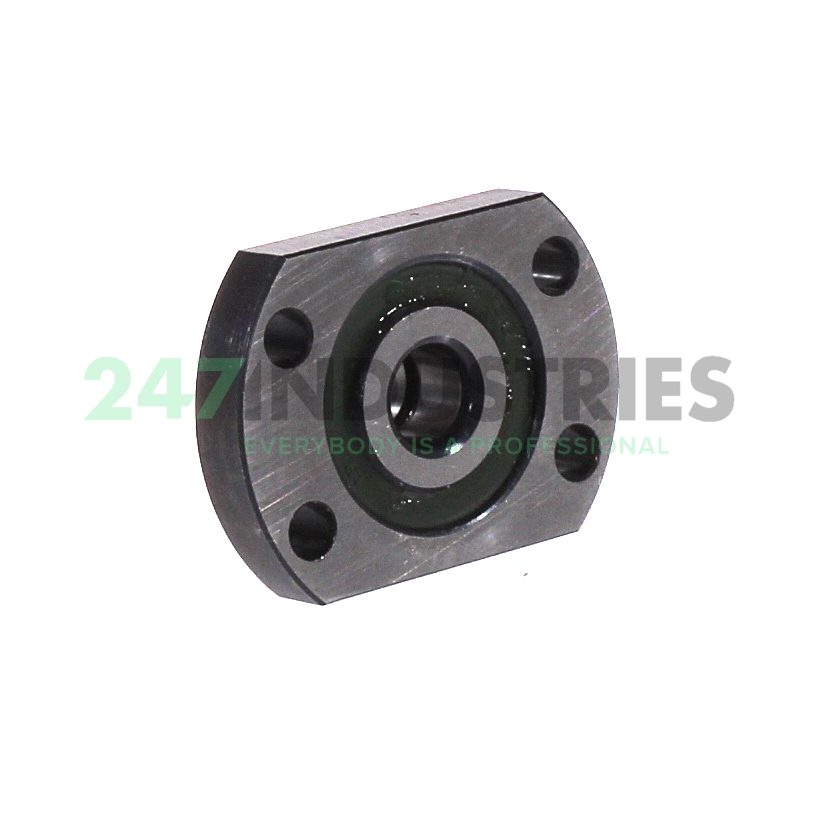

ZKLFA0630-2Z INA

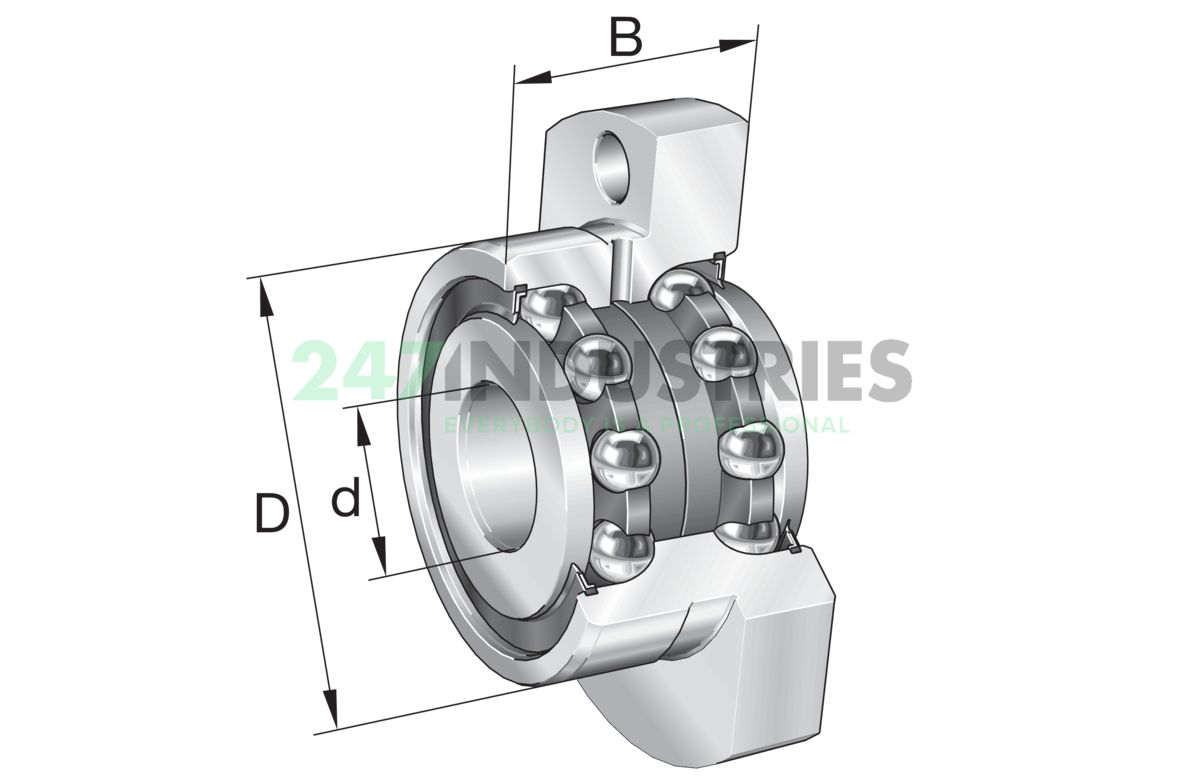

All dimensions

1. Inner (d) MM 6
2. Outer (D) MM 19
3. Width (B) MM 12
4. Inner (d) Inch 0.2362
5. Outer (D) Inch 0.748
6. Width (B) Inch 0.4724
7. Width (b) mm 12

Suffix description

1. 2Z Gap Seals At Both Sides Of The Bearing

Technical details

1. Availability 6 pcs
2. Brand INA
3. Item number ZKLFA0630-2Z INA
4. Also known as 0001288990000

5. EAN 4012802445886
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.05

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 6100
2. Axial Dynamic Load Rating Ca (N) 4900
3. Limiting speed for grease lubrication (n G Grease) 22800
4. Thermally permissible speed (n ϑ) 14000
5. ECLASS number 23-05-10-02
6. ECLASS2 number 23-05-10-02
7. Medias description Angular contact ball bearing units ZKLFA..-2Z, double direction, for screw mounting, gap seals on both sides
